Coin-Cell Battery
Dell™ Latitude™ D630 Service Manual
To replace the coin-cell battery:
1. Follow the procedures in Before You Begin .
2. Remove the hinge cover (see Hinge Cover ).
3. Remove the keyboard (see Removing the Keyboard ).
4. Remove the battery cable connector from the connector on the system board.
5. Being careful not to break the plastic, slightly raise the corner of the plastic mylar above the battery.
6. While holding the plastic mylar slightly up, grasp the battery and pull it out of the battery compartment.
7. Place the new battery under the plastic mylar in the battery compartment.
8. Connect the battery cable connector to the connector on the system board.
9. Replace the keyboard (see Replacing the Keyboard ).
10. Replace the hinge cover (see Hinge Cover ).
Back to Contents Page
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface, such as a connector on the back of the computer.
NOTICE: To avoid damaging the system board, you must remove the main battery before you begin working inside the computer (see Before
Working Inside Your Computer ).

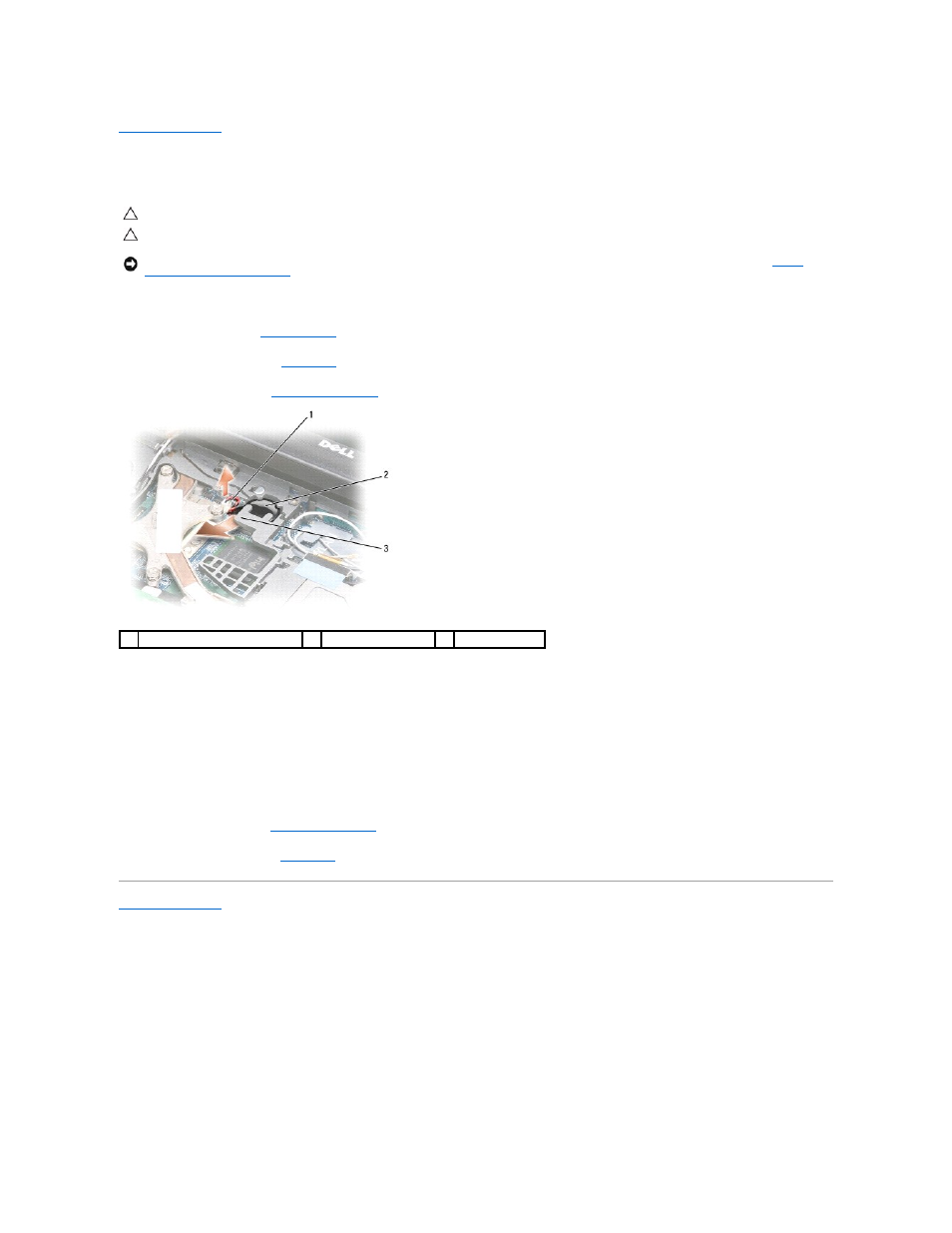

1 battery cable connector 2 coin-cell battery 3 plastic mylar
