Installing the Display Assembly
1. Align the base panel of the computer to the display hinges.
2. Install the screws that secure the display hinges to the system board.
3. Connect the LVDS cable and the camera cable to the connectors on the system board.
4. Install :
a) battery
b) base cover
5. Follow the procedures in After Working Inside Your Computer.
Removing the Display Bezel
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove :
a) base cover
b) battery
c) display assembly

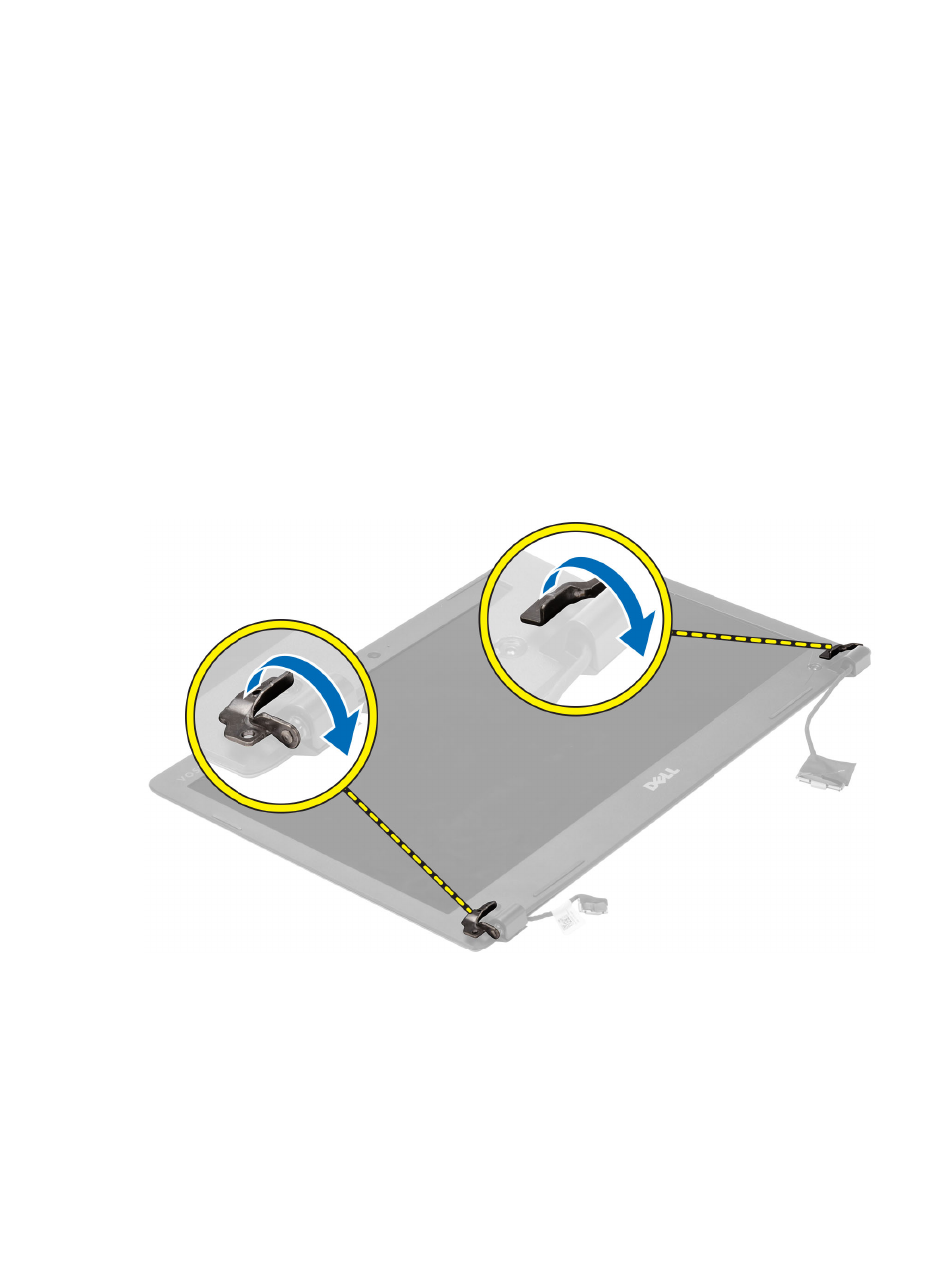

3. Rotate the hinge brackets as the angle shown to facilitate easy removal of the display bezel.
4. Pry on the plastic caps that cover the display bezel screws and remove them.
