About Your System

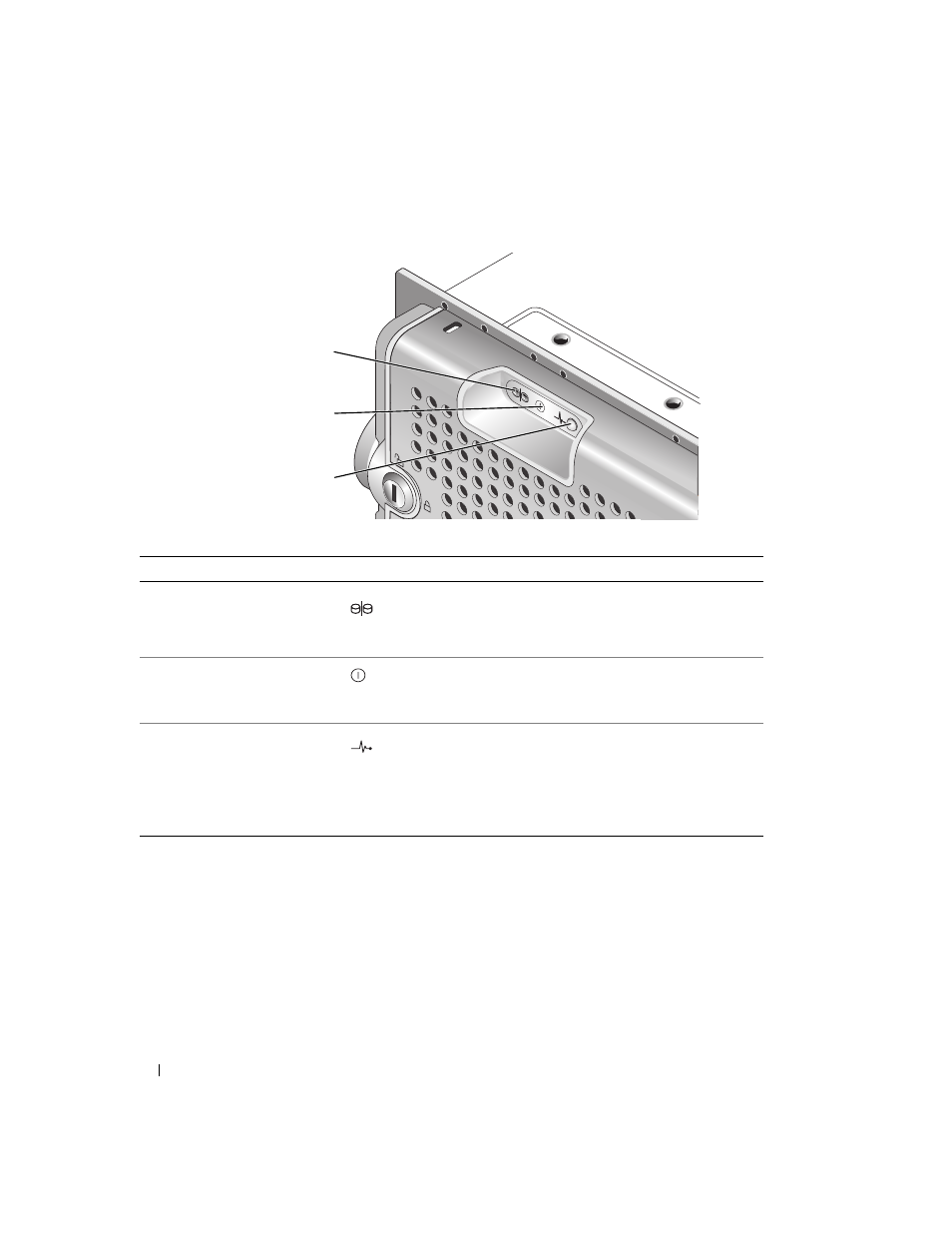

Figure 1-1. LEDs on the Front Bezel
Front-Panel Indicators and Features
Figure 1-2 shows the LED indicators and components on the enclosure’s front panel (optional locking bezel
not shown). Table 1-2 lists the conditions and functions indicated by each.
Table 1-1. Front Bezel Indicators
Item LED Indicator LED Icon Condition
1 Split mode (green) Because this mode is unused in the system, this LED
should always be unlit.
2 Power (green) When lit, at least one power supply is supplying power to
the enclosure.
3 Enclosure status
(blue/amber) Steady amber: Power is on and enclosure is in reset state.
Steady blue: Power is on and enclosure status is OK.
Flashing blue: Enclosure LED is being blinked by MD
Storage Manager.
Flashing amber: Enclosure is in fault state.
1
2
3
