Creating Protection Groups
The final configuration step at the protected site is to create Protection Groups for the VMs that you want to include in
the recovery solution. SRM associates datastore groups with protection groups to collect any files related to virtual
machine failover.
1. In Protection Groups view, select Create Protection Group.
2. In the Select Site and Protection Group Type, select the protected site.

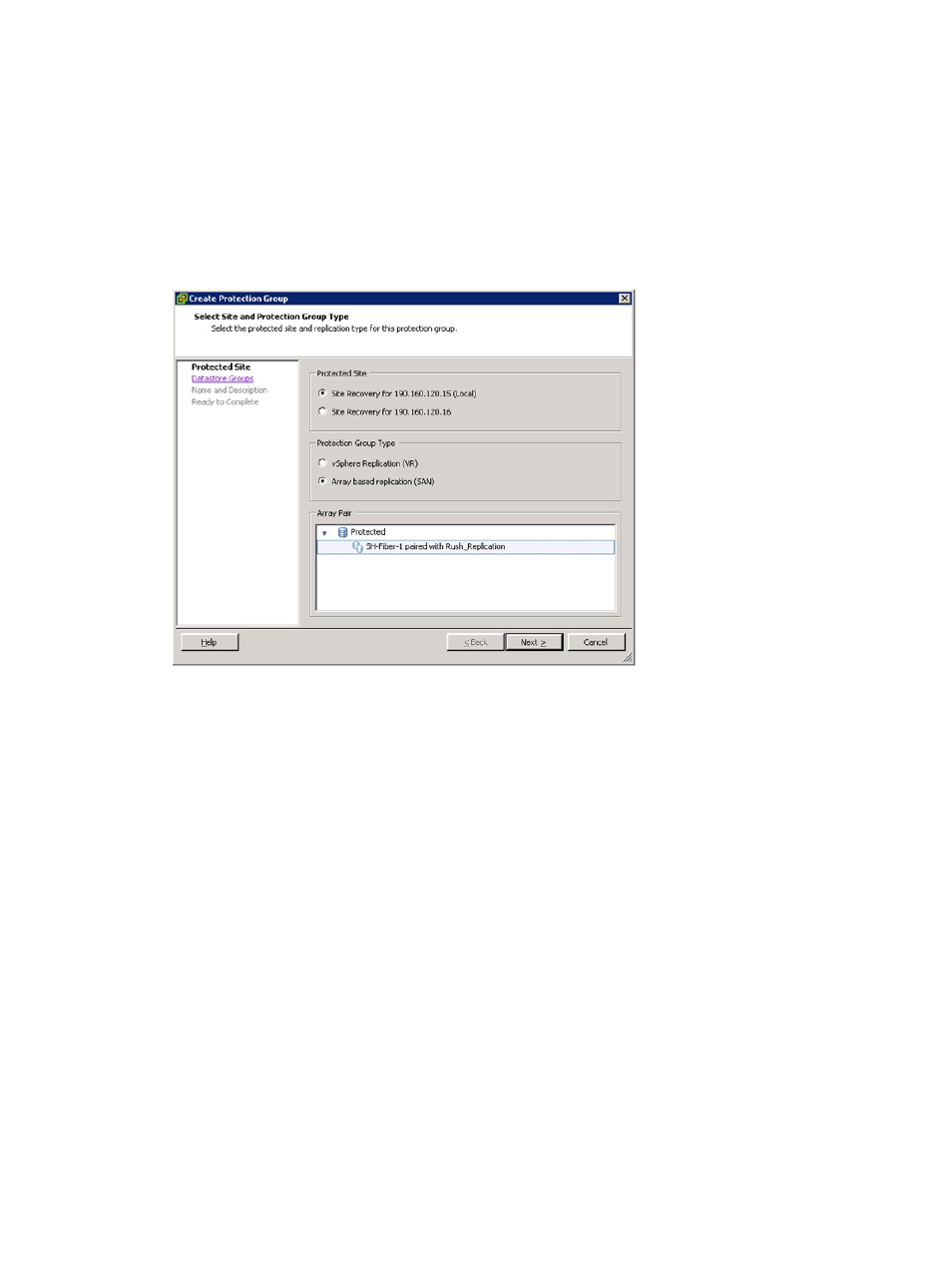

Figure 16. Creating a Protection Group
3. In Protection Group Type, select the Array based replication (SAN) option.
4. Select one or more datastore groups from the list, then click Next.
5. Enter a name and optional description for the protection group, then click Next .
6. Click Finish to create the protection group.
