1 M-3 mounting screw holes
Do not secure the drive with screws at this point because you may have to
move the drive to get the cables in place.
6. Attaching SAS Cable
Attach the system SAS cable to the drive SAS connector, as shown in
Figure 2-4.
1 SAS cable
2 Power cable
7. Securing the Drive
The tape drive can now be secured to the system as shown in Figure 2-5 on
page 2-5. There are several ways to secure the drive. If the drive is on rails or
in a sled, then push it in place. Some systems require the drive to be inserted
into a media bay and attached directly to the system with screws.
1
a80hh0
10
1
1

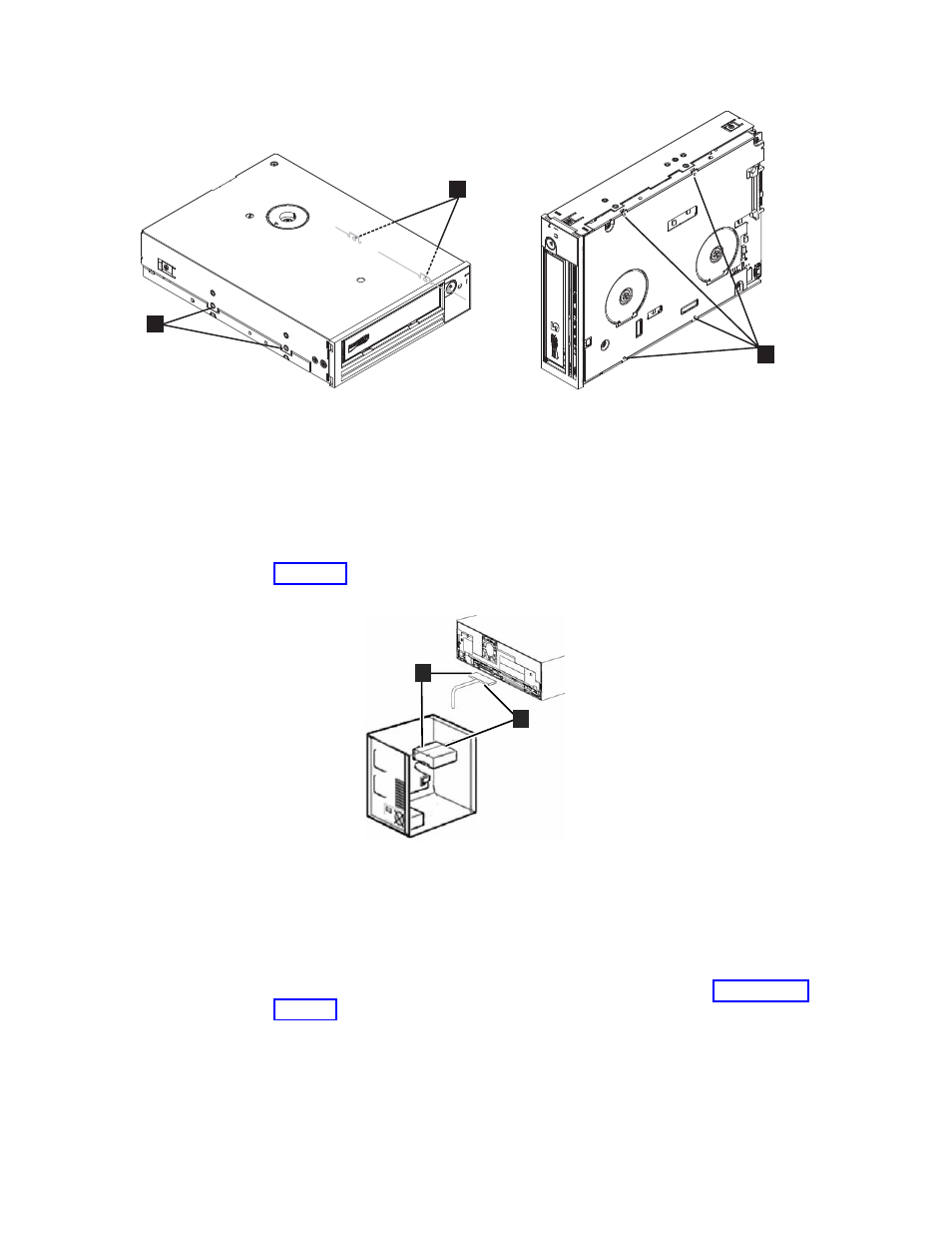

Figure 2-3. Mounting Holes on Tape Drive
a80hh094
1
2
Figure 2-4. Attaching SAS Cable
2-4 Dell PowerVault LTO Tape Drive User's Guide
