Display Panel/Bracket
Dell Latitude 2120 Service Manual
Removing the Display Panel/Bracket
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the battery .
3. Remove the keyboard .
4. Remove the access panel .
5. Remove the display assembly .
6. Remove the display bezel .

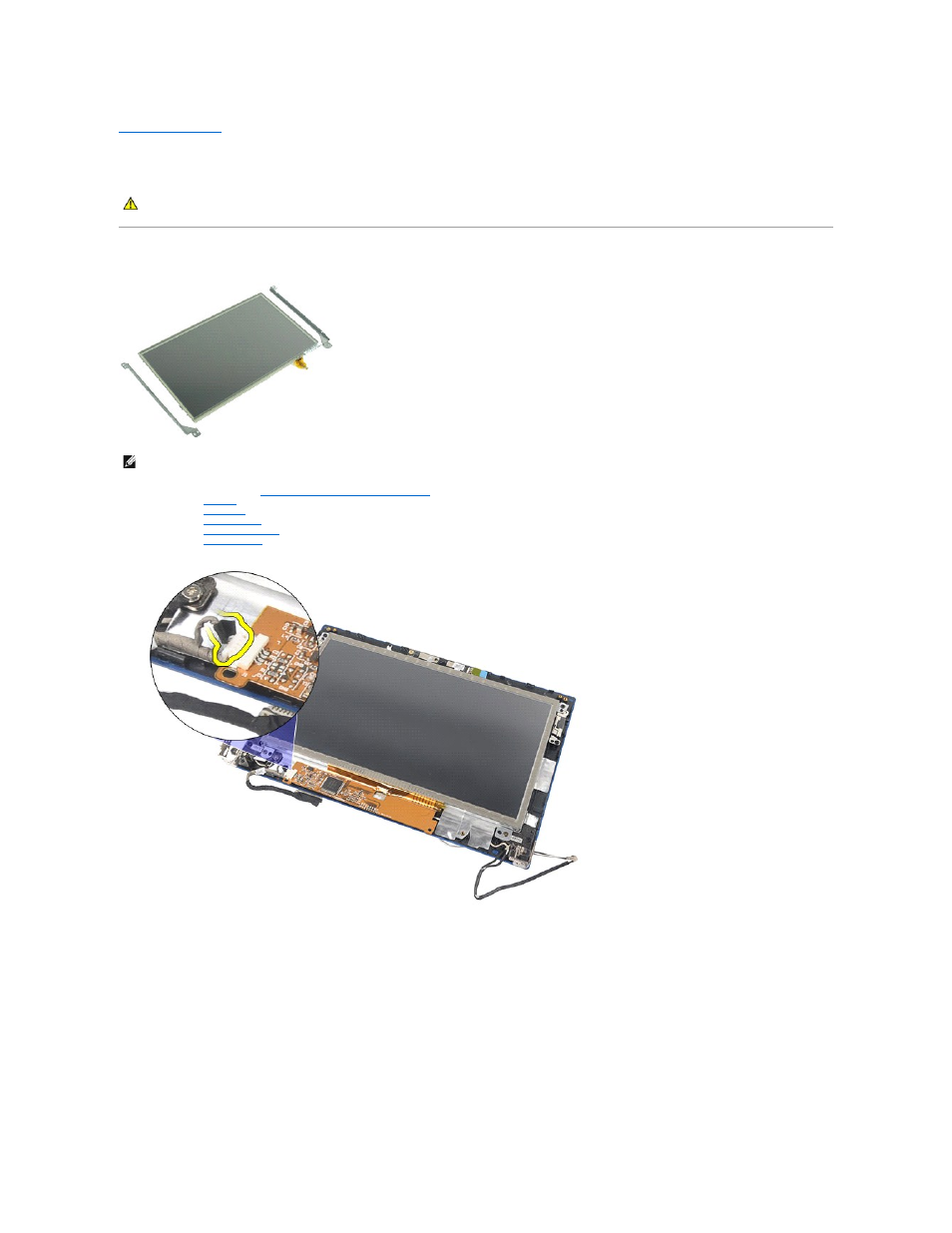

7. Disconnect the display touch-screen cable from the display assembly.
8. Remove the screws that secure the display panel to the display assembly, and then flip over the display panel.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe Flash Player from Adobe.com in order to view the illustrations below.
