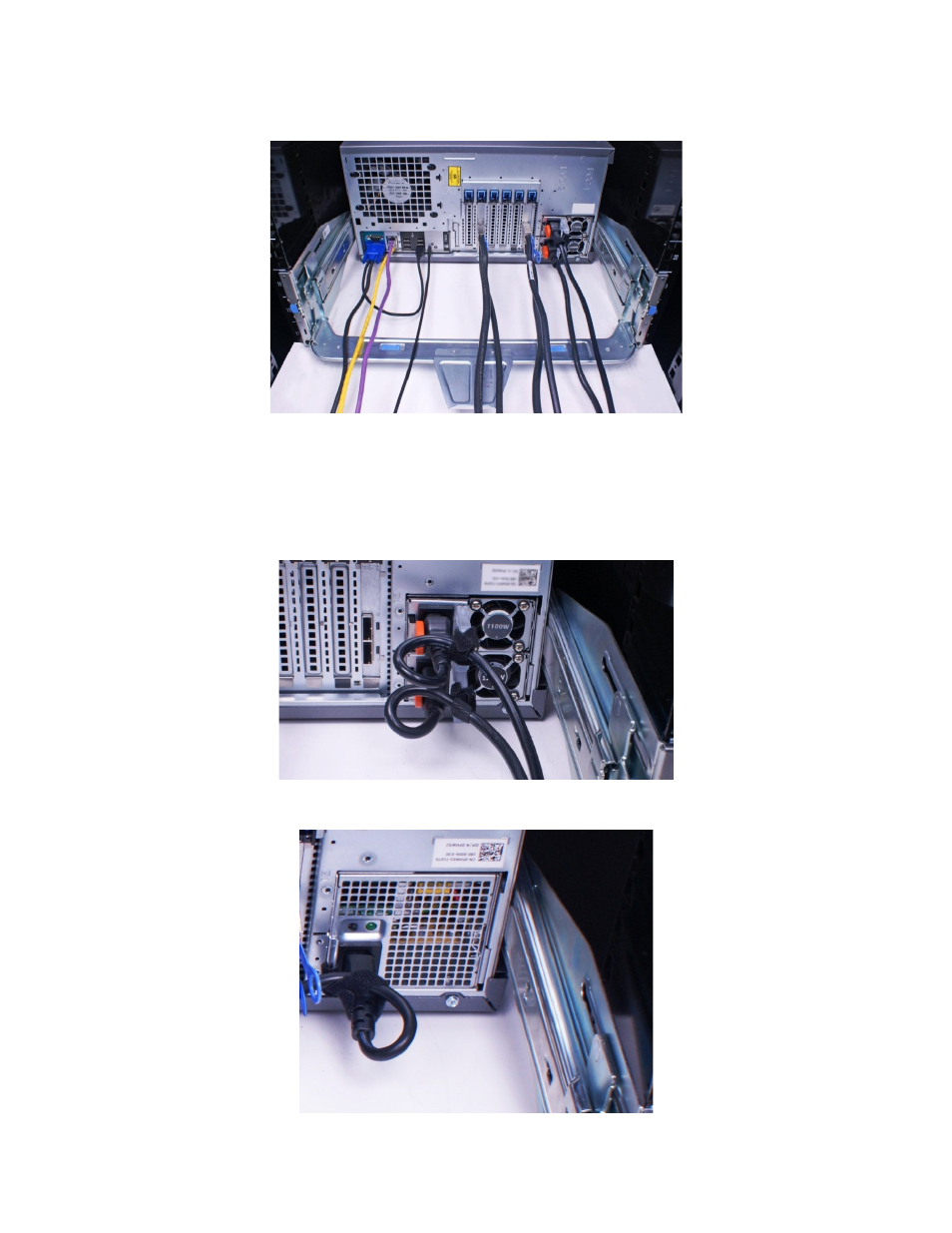

Cable Routing Procedures for the Dell PowerEdge T320 & T420 Systems

5

System with cables installed

Figure 1.

1.2. Routing the power cables through the strain reliefs

After you have installed the tray and cables, route the power cable(s) through the strain relief(s)
located on the power supply handle(s) as shown in Figures 2 & 3.

Routing power cables through the strain reliefs on hot swap power supplies

Figure 2.

Routing the power cable through the strain relief on a fixed power supply

Figure 3.
