6.

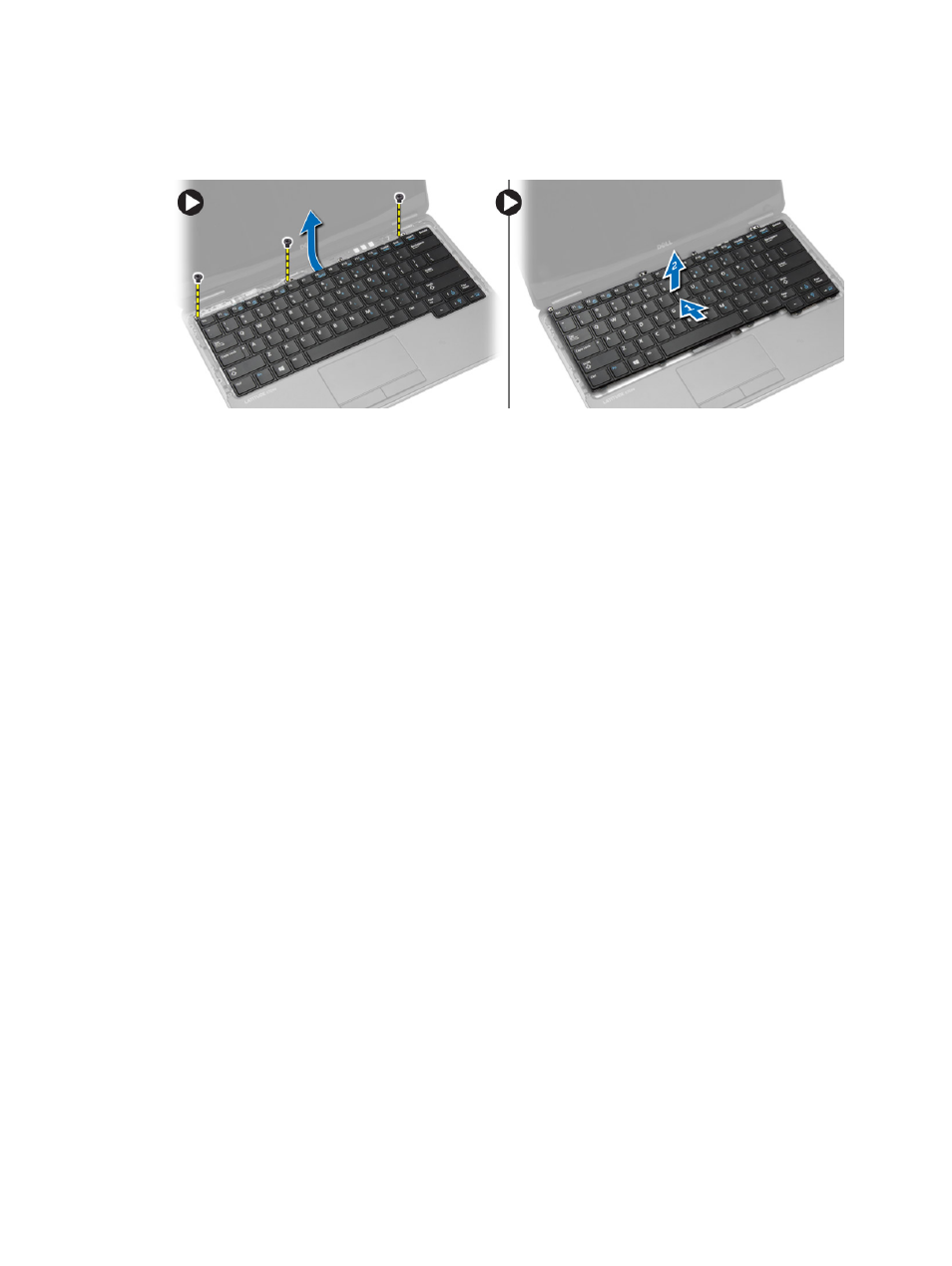

Perform the following steps as shown in the illustration:
a. Slide the keyboard from the computer [1].
b. Lift the keyboard from the computer [2].

Installing the Keyboard

1.

Connect the keyboard cable and tighten the screw that secures the keyboard to the computer.

2.

Slide the keyboard into its compartment and ensure that it clicks into place.

3.

Flip the computer, place the keyboard, and tighten the screws that secure the keyboard to the computer.

4.

Install:
a. keyboard trim
b. base cover
c. battery

5.

Follow the procedures in

After Working Inside Your Computer

.

Removing the Palmrest

1.

Follow the procedures in

Before Working Inside Your Computer

.

2.

Remove:
a. SD card
b. battery
c. base cover
d. keyboard trim
e. keyboard

3.

Remove the screws that secure the palmrest assembly and flip the computer.
