Installing the Base Cover
1. Place the base cover to align with the screw holes correctly on the computer.
2. Tighten the screws to secure the base cover to the computer.
3. Install battery.
4. Follow the procedures in After Working Inside Your Computer .
Removing the mSATA SSD Card
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a. battery
b. SD card
c. base cover

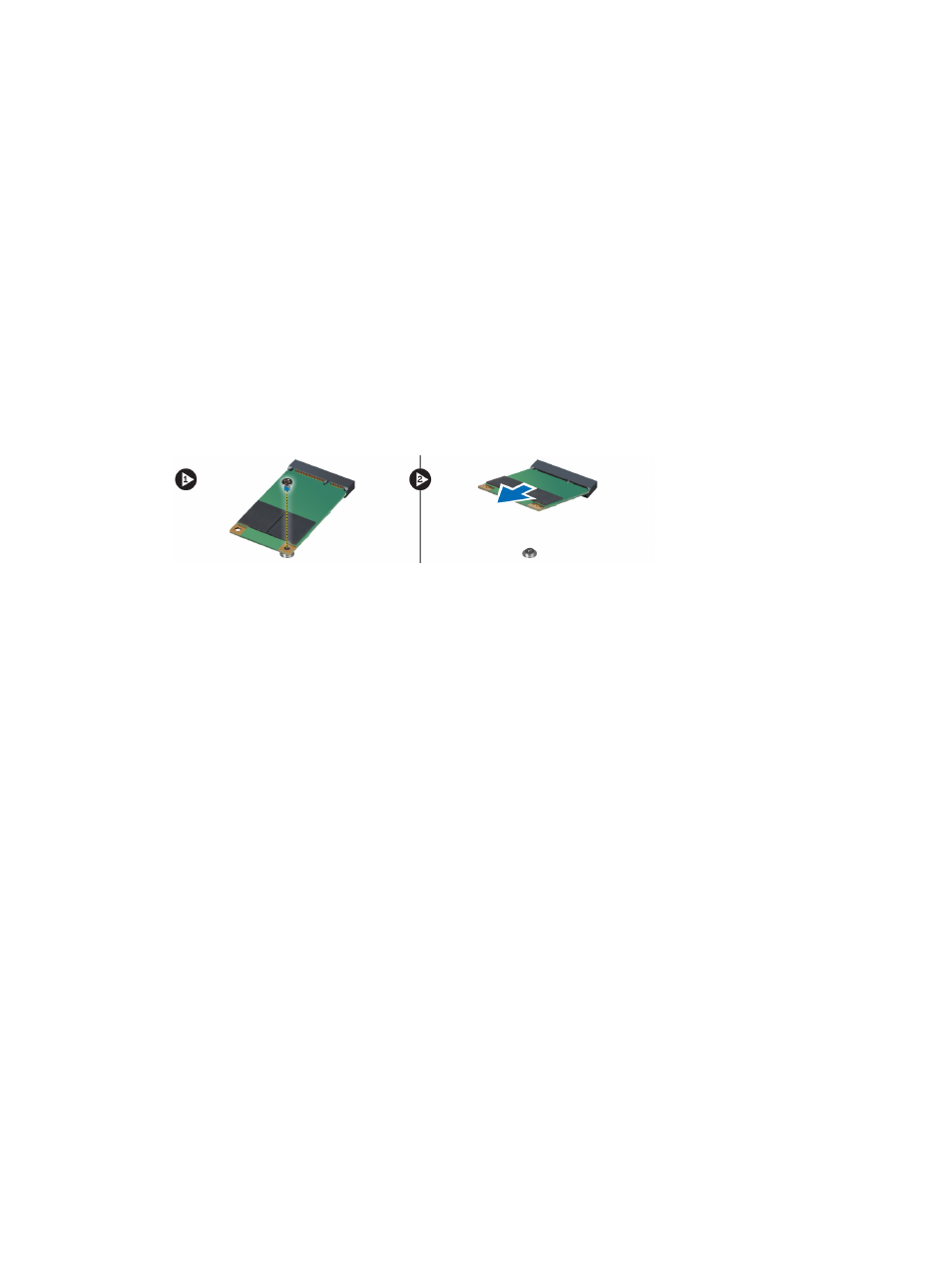

3. Remove the screw that secures the mSATA SSD card and remove the mSATA SSD card from the computer.
Installing the mSATA SSD Card
1. Place the mSATA SSD card in its slot in the computer.
2. Tighten the screw to secure the mSATA SSD card to the computer.
3. Install:
a. base cover
b. SD card
c. battery
4. Follow the procedures in After Working Inside Your Computer .
Removing the Keyboard Trim
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove battery.
