40 | Removing the I/O Board
Procedure
1 Lift the connector latch and, using the pull-tab, disconnect the I/O-board cable
from the I/O-board.
2 Remove the screw that secures the I/O board to the computer base.
3 Lift the I/O board off the computer base.

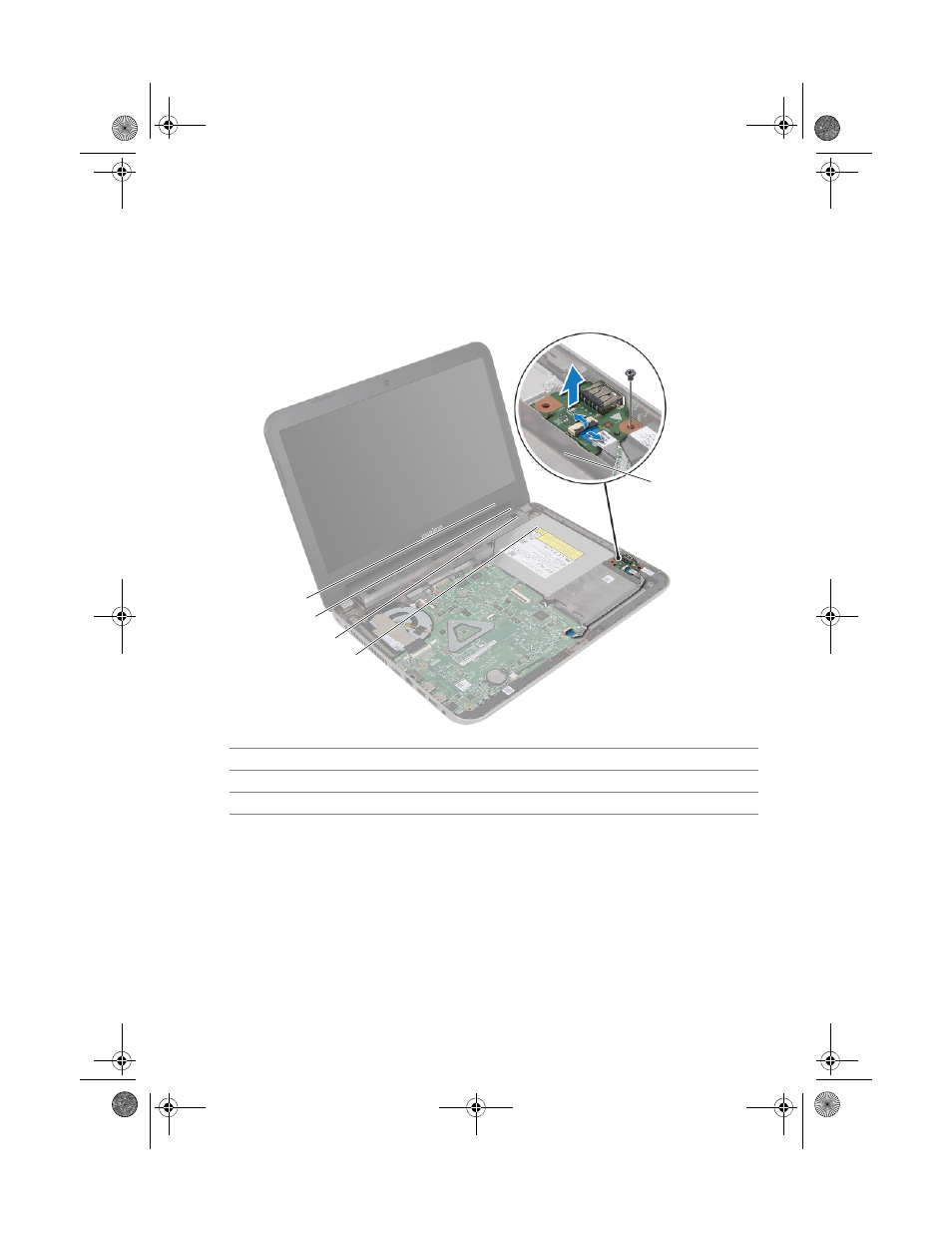

1 I/O board 2 connector latch
3 pull-tab 4 I/O board cable
5 screw
3
2
4
5
1
