Dell Inspiron 1764 (Early 2010) - Manual (Page 24)

1. Follow the procedures in Before You Begin .
2. Replace the six screws that secure the display panel brackets to the display panel.
3. Replace the display panel (see Replacing the Display Panel ).
4. Replace the display bezel (see Replacing the Display Bezel ).
5. Replace the display assembly (see Replacing the Display Assembly ).
6. Replace the battery (see Replacing the Battery ).
Display Hinges
Removing the Display Hinges
1. Follow the procedures in Before You Begin .
2. Remove the display assembly (see Removing the Display Assembly ).
3. Remove the display bezel (see Removing the Display Bezel ).
4. Remove the display panel (see Removing the Display Panel ).
5. Remove the four screws that secure the display hinges to the display cover.
Replacing the Display Hinges
1. Follow the procedures in Before You Begin .
2. Use the alignment posts to place the display hinges on the display cover. Ensure the Mini-Card antenna cables and display cable route under the left
hinge before replacing the screw.
3. Replace the four screws that secure the display hinges to the display cover.
4. Replace the display panel (see Replacing the Display Panel ).
5. Replace the display bezel (see Replacing the Display Bezel ).
6. Replace the display assembly (see Replacing the Display Assembly ).
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.

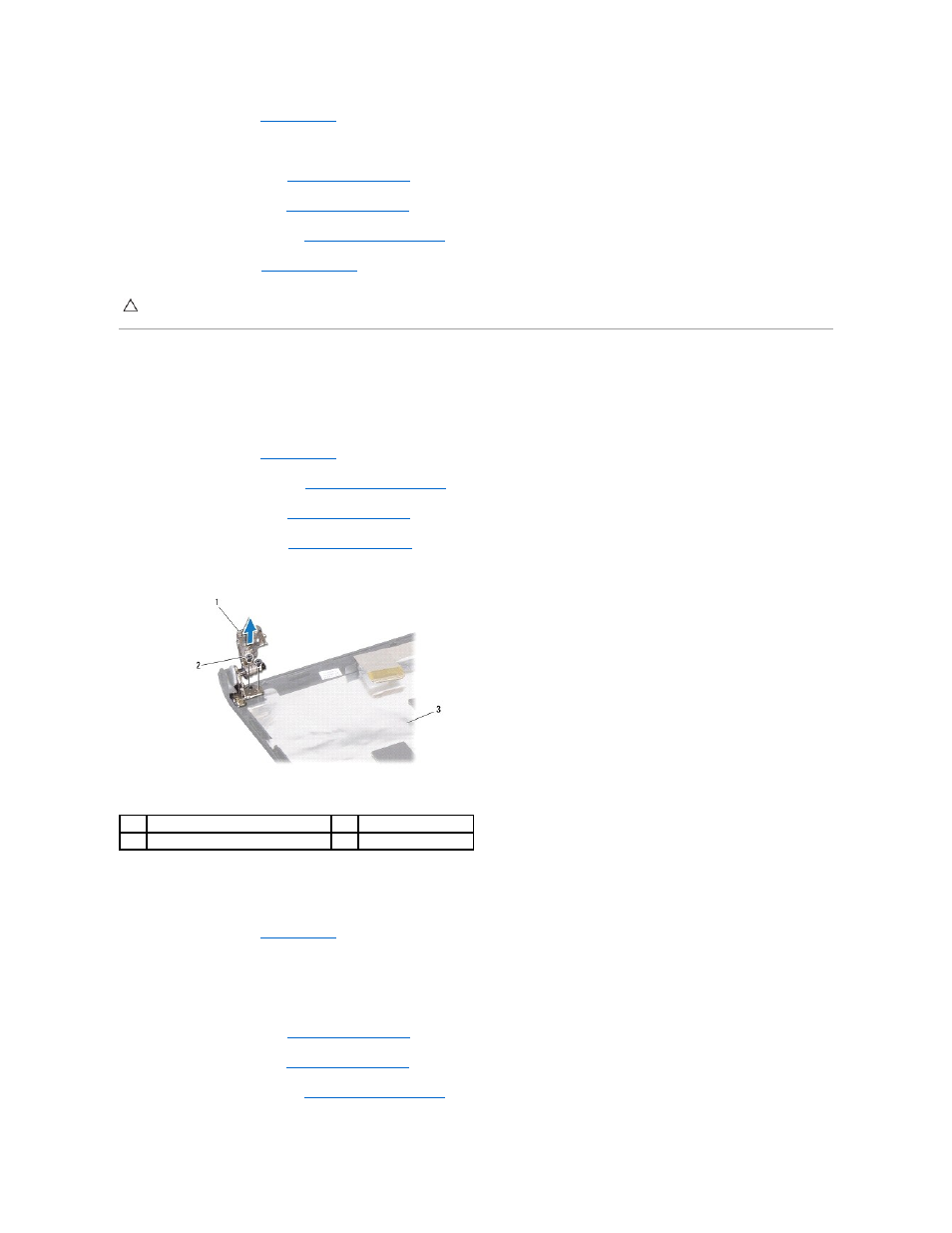

1 display hinges (2) 2 screws (4)
3 display cover
