19
Removing the SAS (Serial attached SCSI)
Backplane
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
– front bezel
– cover
– cooling shroud
– optical drive
– hard-drive carrier
– hard-drive assembly

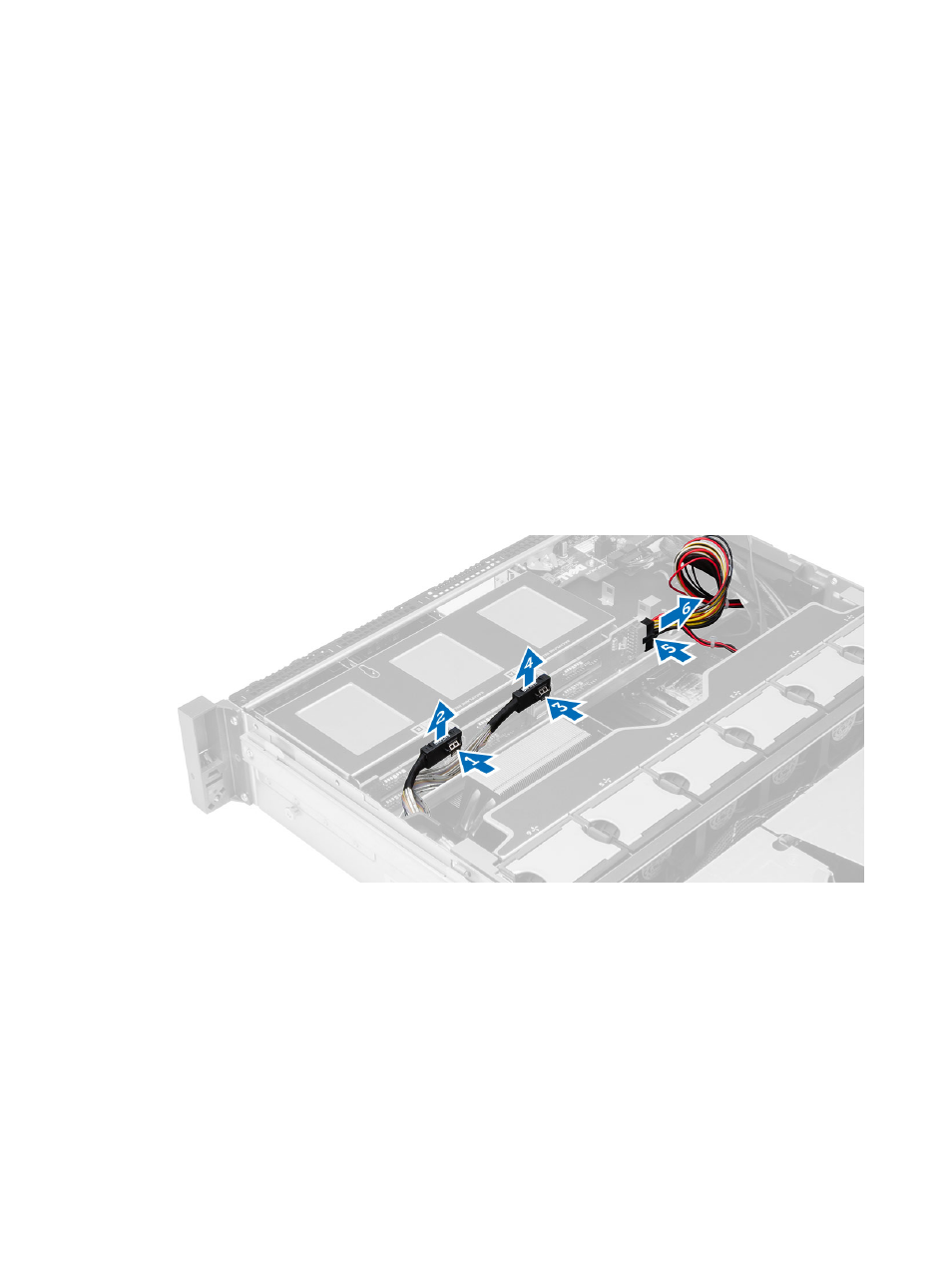

3. Disconnect all the SAS cables by pressing on their respective release tabs.
4. Push the blue release tabs in the direction of the arrows towards the hard-drive assembly to release the SAS
backplane from the system board.
a) Lift and remove the SAS backplane from the computer.
45
