Removing the Control Panel
CAUTION: Two different Torx screwdrivers are needed for the control panel disassembly/reassembly, a T10 and T8.
1.
Follow the procedures in
Before Working Inside Your Computer
.
2.
Remove:
– front bezel
– cover
3.

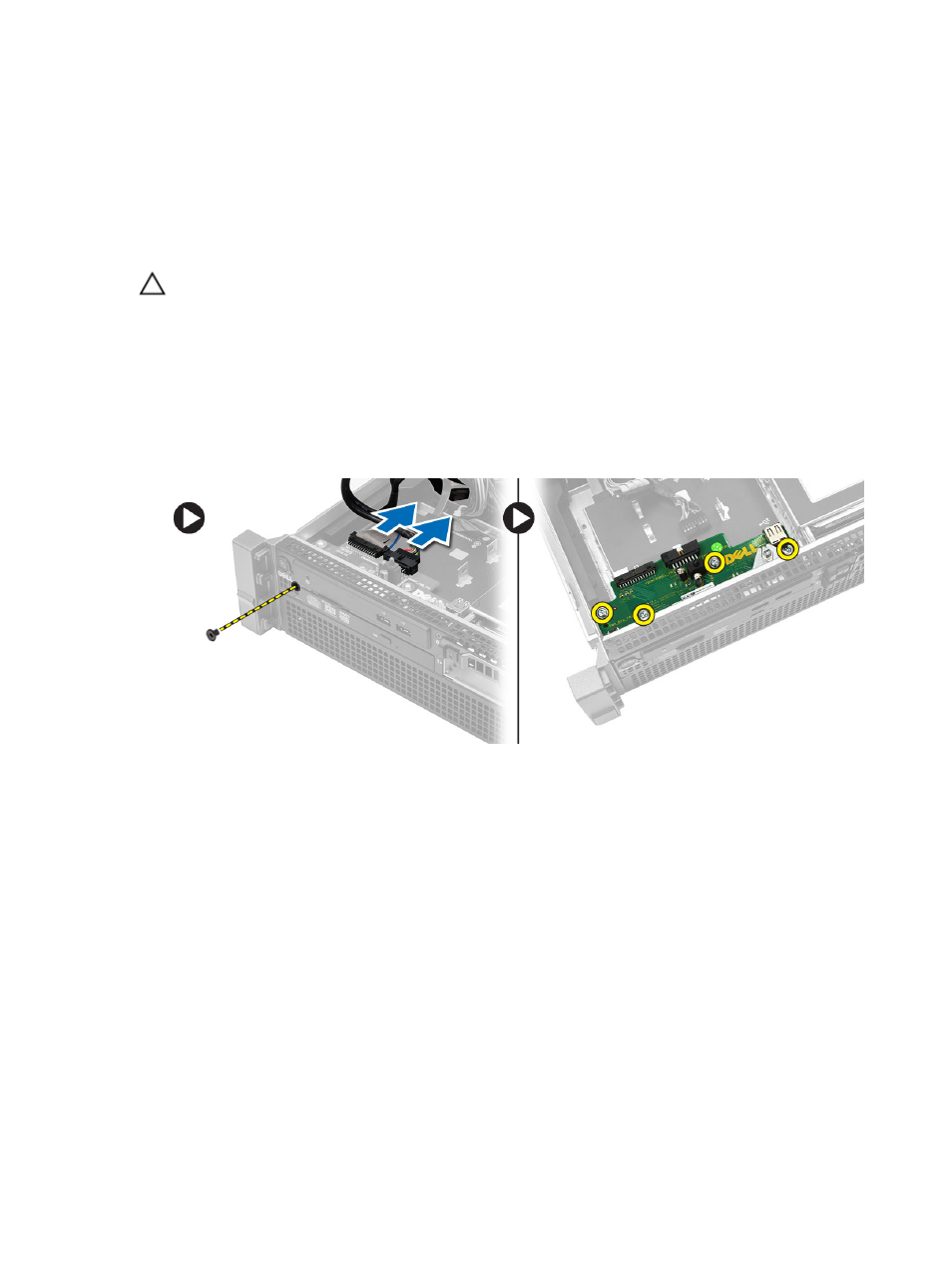

Remove the torx screw that secures the control panel.
a) Disconnect the control panel cables.
b) Remove the screws that secure the control panel board.
33
