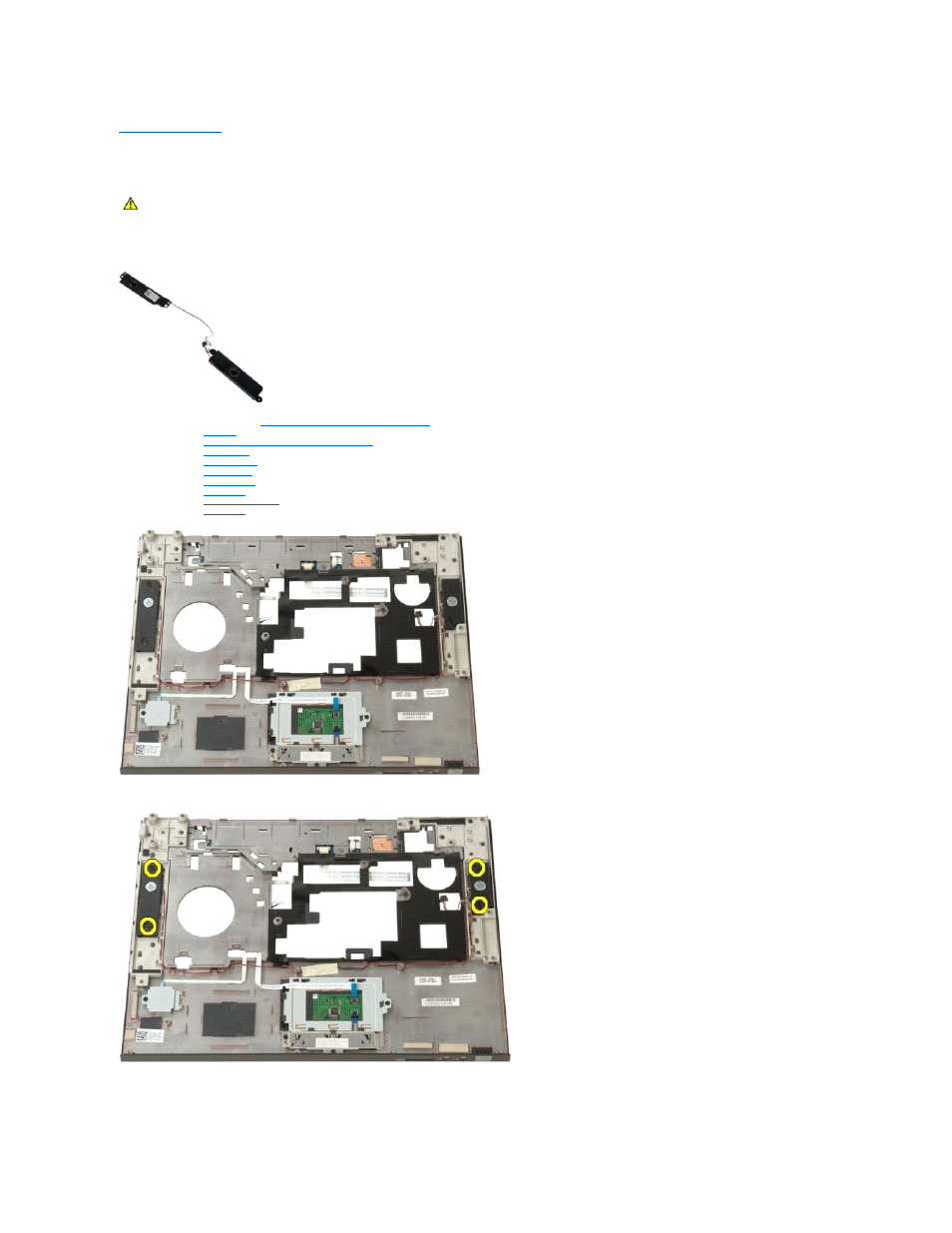

Speaker Assembly
Dell™ Vostro™ 1520 Service Manual
Removing the Speaker Assembly
1.
Follow the procedures in
Before Working Inside Your Computer
.
2.
Remove the
battery
from the computer.
3.
Remove the
hard drive and mini-card access panel
from the computer.
4.
Remove the
hard drive
from the computer.
5.
Remove the
optical drive
from the computer.
6.
Remove the
WLAN card
from the computer.
7.
Remove the
hinge cover
from the computer.
8.
Remove the
keyboard
from the computer.
9.
Remove the
display assembly
from the computer.
10.
Remove the
palm rest
from the computer and place it on a clean work surface.
12.
Remove the four screws that secure the speaker assembly to the palm rest.
13.
Lift the speakers from their slots, then remove the speaker assembly from the computer.
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
