Installing the Processor
1. Insert the processor into the processor socket. Ensure the processor is properly seated.
2. Gently lower the processor cover.
3. Press the release lever down and then move it inward to secure it with the retention hook.
4. Install the heat-sink assembly.
5. Install the cover.
6. Follow the procedures in After Working Inside Your Computer .

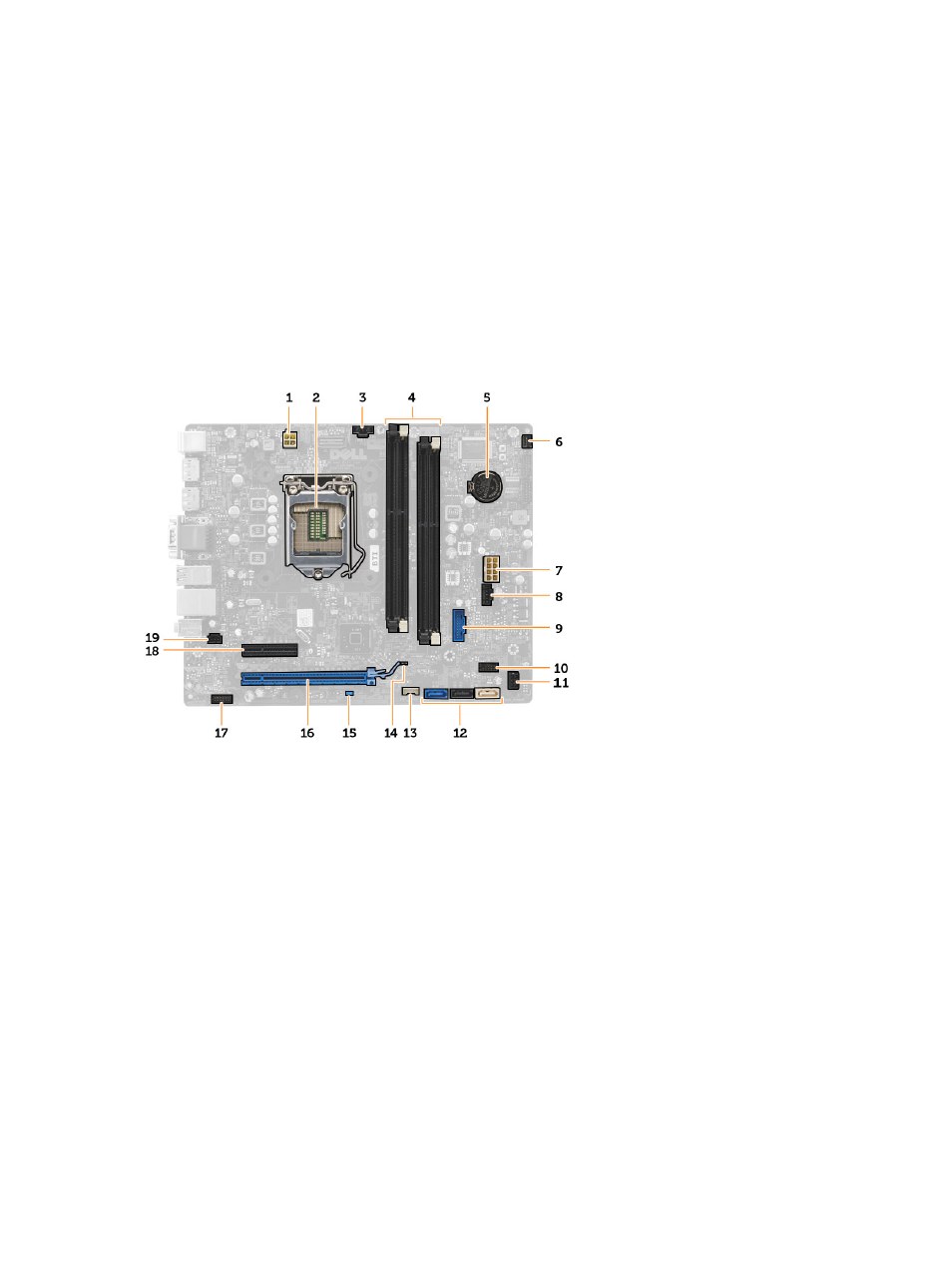

System Board Components
The following image displays the system board layout.
1. power connector
2. processor socket
3. system fan connector
4. memory module connectors
5. coin-cell battery
6. power switch connector
7. system power connector
8. system fan connector
9. front-USB 3.0 connector
10. front panel connector
11. HDD/ODD power connector
12. SATA connectors
13. internal speaker connector
14. RTC reset (RTCRST) jumper
15. password (PSWD) jumper
16. PCI Express x16 connector
17. front panel audio connector
18. PCI Express x4 connector
19. intrusion-switch connector
