14 Dell PowerVault 2xxS Storage Systems SCSI Backplane Board Replacement Instructions
.

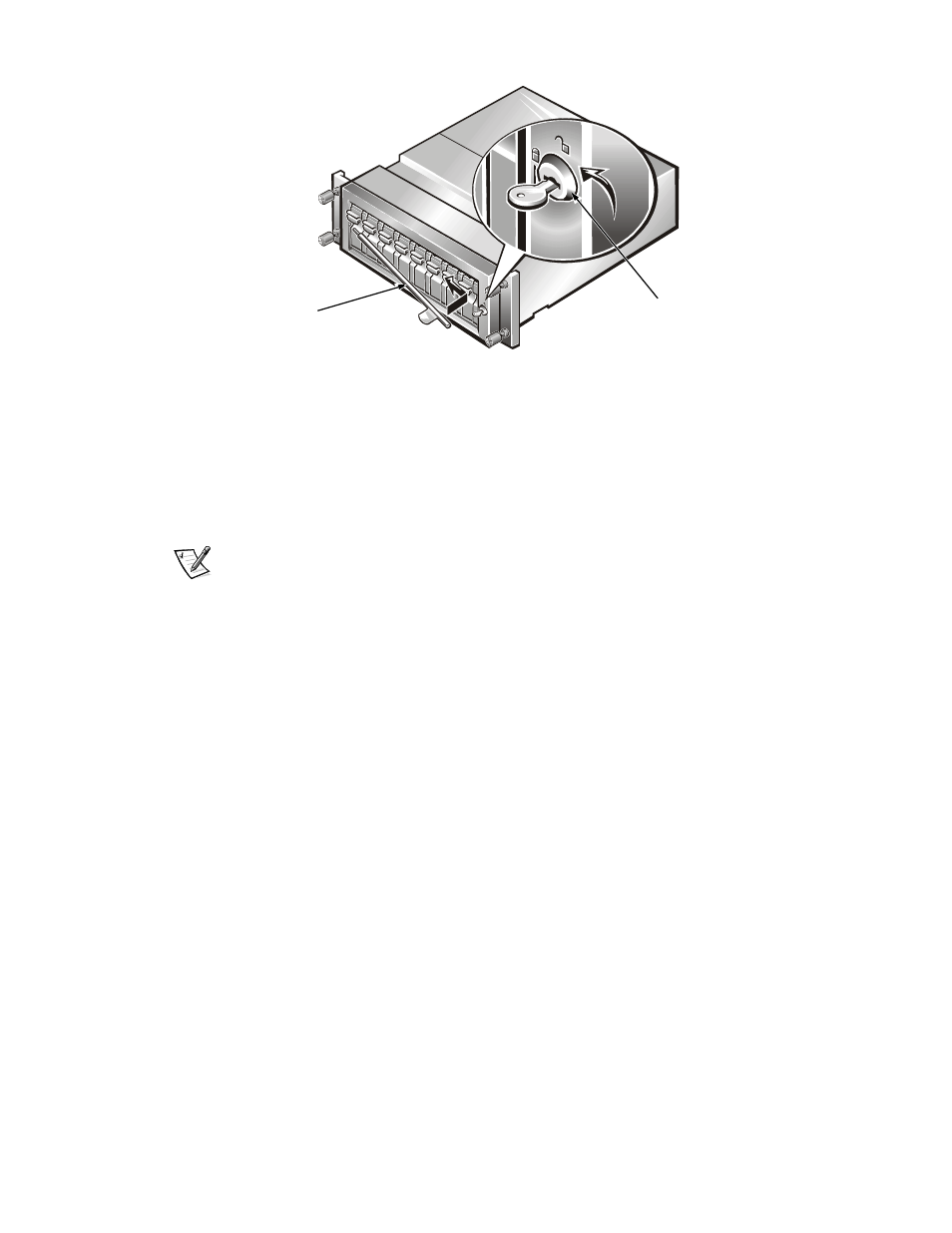

Figure 14. Installing the Lock Bar (System Shown with a Removable
Lock Bar)
5. Place the key in the keylock and turn it to the locked position. Remove the
key from the keylock.
SCSI Backplane Board Replacement Completion
NOTE: For information on installation, cabling, and powering on the storage
system, see the Dell PowerVault 200S, 201S, 210S, and 211S Storage Systems
Installation and Service Guide.
After replacing the SCSI backplane board, complete the procedure by perform-
ing the following steps:
1. Install the storage system in the rack from which it was removed. If the
storage system was used in a stand-alone configuration, install the storage
system in the stand-alone enclosure.
2. Connect the communication cable(s) coming from the host computer to
the storage system.
3. Connect the power cable(s) from the storage system to the power
source(s).
4. Turn on the storage system.
key lock
lock bar
