6. Apply high-temperature sealant to the top of the
chimney. Feed the two liners down through the
chimney flue and damper opening. Fasten the
termination assembly to the chimney with the four
set screws (C) provided.
7. Trim the flex liners as needed. Each should be only
long enough to connect to the Transition Connector.
There should be no sag in either flex liner when the
stove is in place.
8. Attach the flex liners to the Transition Connector,
using high-temperature sealant and clamps as
shown in Figure 35. Prop the connector in rough
position until the heater is in place in front of it.
A
B
B
B
D
C
C
B
D
A
B
A
B
C
D
B
A
B
A
D
A
A = Sealant Locations
B = Sheet Metal Screws
C = Termination Screws
D = Clamps

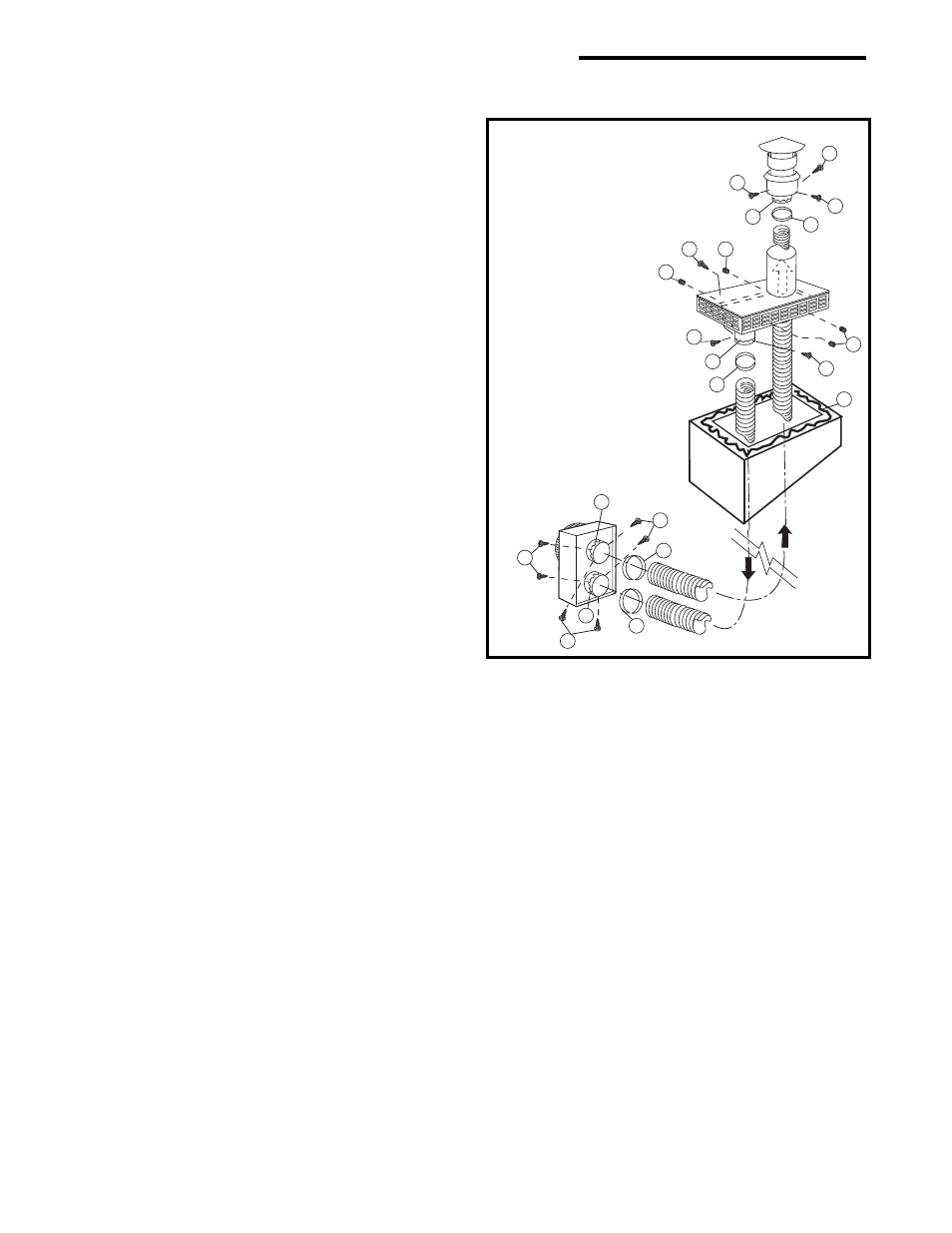

Fireplace Vent System
ST395
Fig. 35 Fireplace vent system installation.
