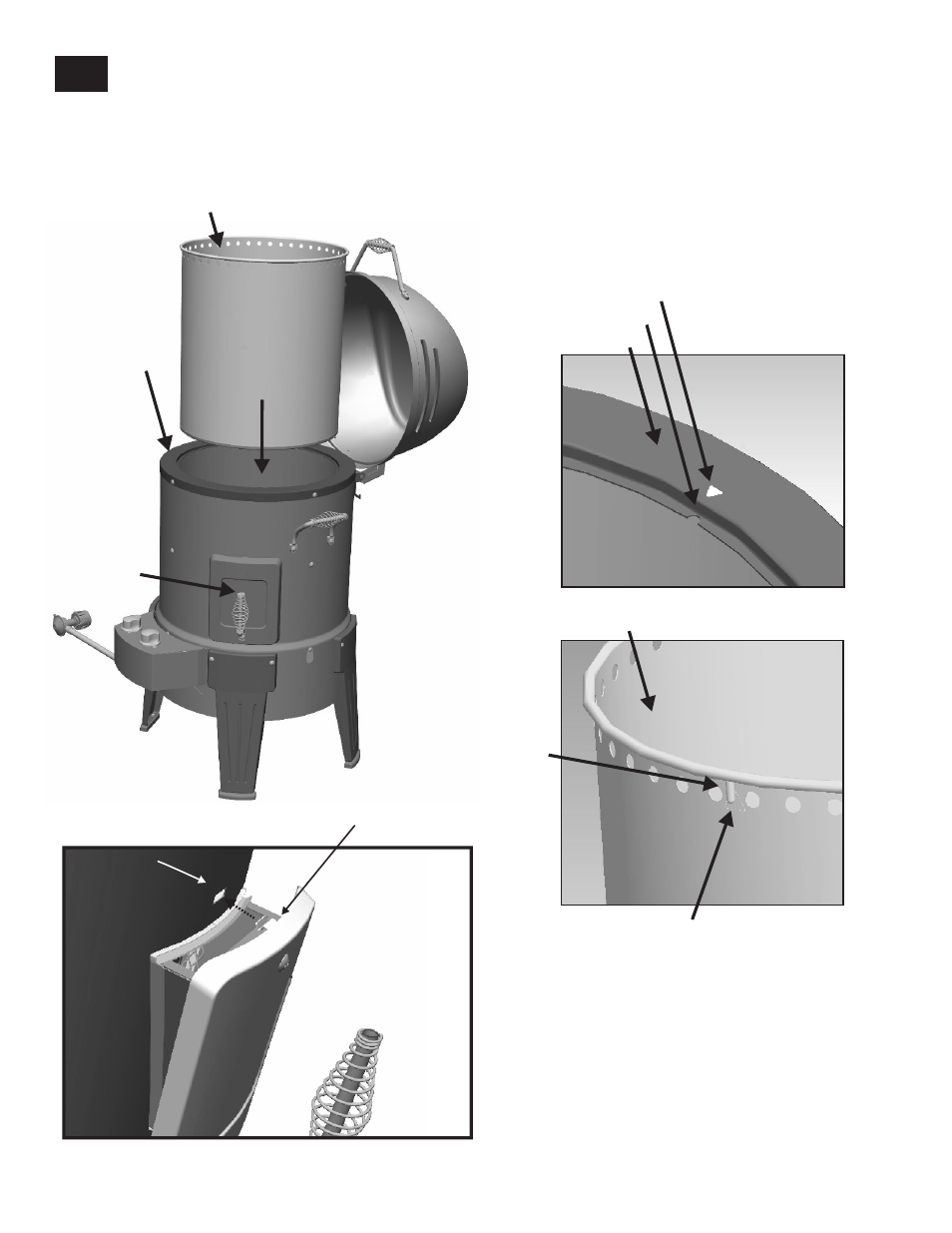

• Slide the cooking chamber into the appliance. Note that an alignment pin is located on the cooking pot. This pin ensures that
the cooking chamber is installed correctly. The pin fits into a slot on the top ring above the smoker box. There are arrows
located on the top ring and cooking chamber to aid in alignment.
8
#10-24 Keps nut
Top Ring Slot
Top Ring
Alignment Arrow
Cooking Chamber
Alignment Pin
Alignment Arrow
(inside cooking pot)
Top Ring
Cooking Chamber
Smoker
Box
Smoker Box
Tab
Slot for tab
Smoker Box Installation
