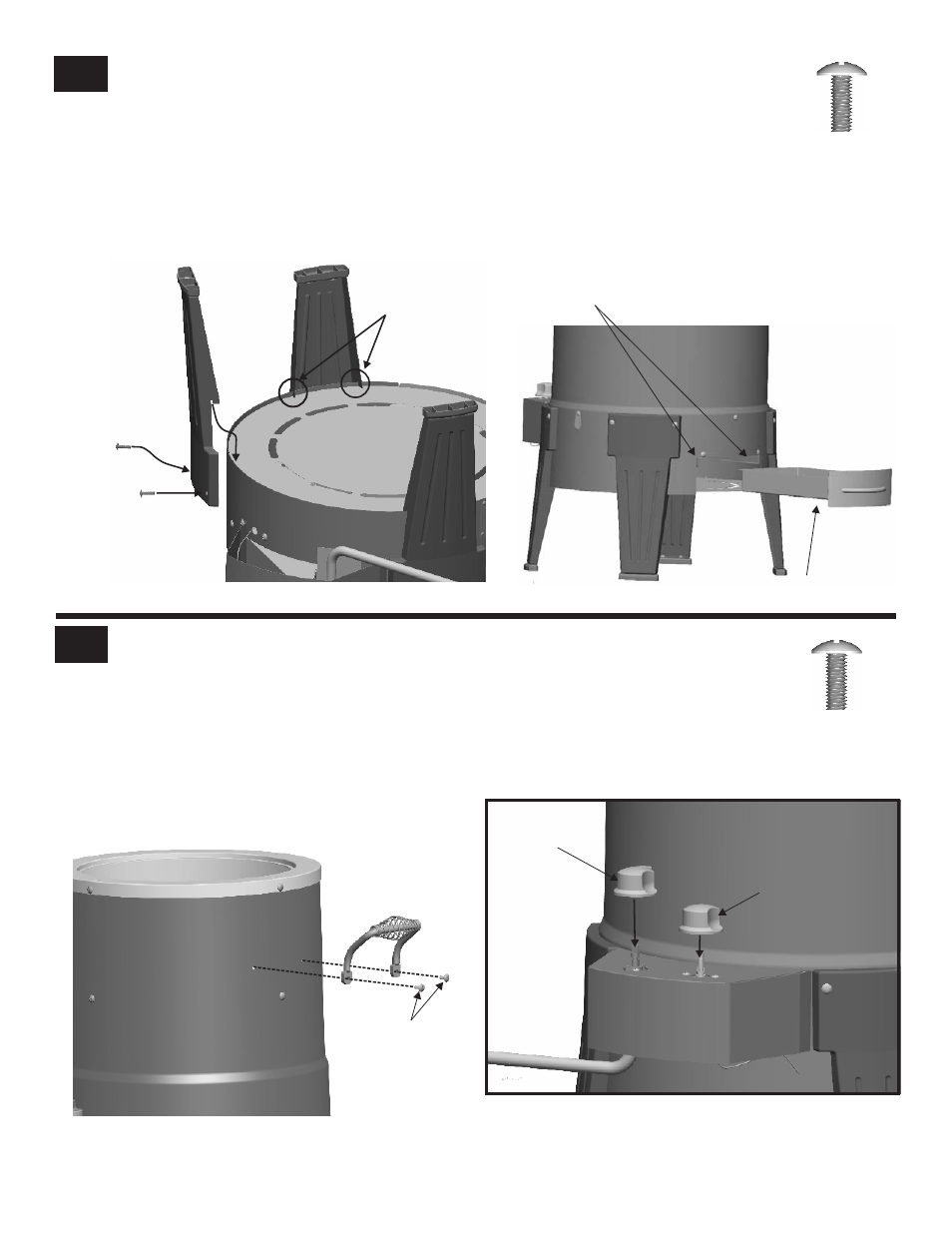

4 • Install legs by engaging leg tabs over bottom edge of the
appliance body.
•
• Slide the grease tray into the rear of the unit.
• Once the leg is in place, attach two #10-24x1" screws
through the leg and into the appliance body.
• Repeat for the remaining legs.
When all four legs are securely installed, carefully turn the
unit upright. Qty: 8
#10-24x1" Screw
#10-24x1/2"
Screw
5
Grease tray
rails
Grease Tray
Leg Tabs shown
in proper
position.
Qty: 4
#10-24x1/2" Screw
• Attach the side handle assemblies to the unit using two #10-24x1/2" screw per
handle.
• Install the control knobs on to the valve stem and the ignitor stem.
Control
Knob
Ignitor
Knob
Page 15
#10-24x1"
Screw
