CRESTRON

necessary, connect a VGA device, such as a video projector, to VGA OUTPUT.
Refer to the diagram shown below.

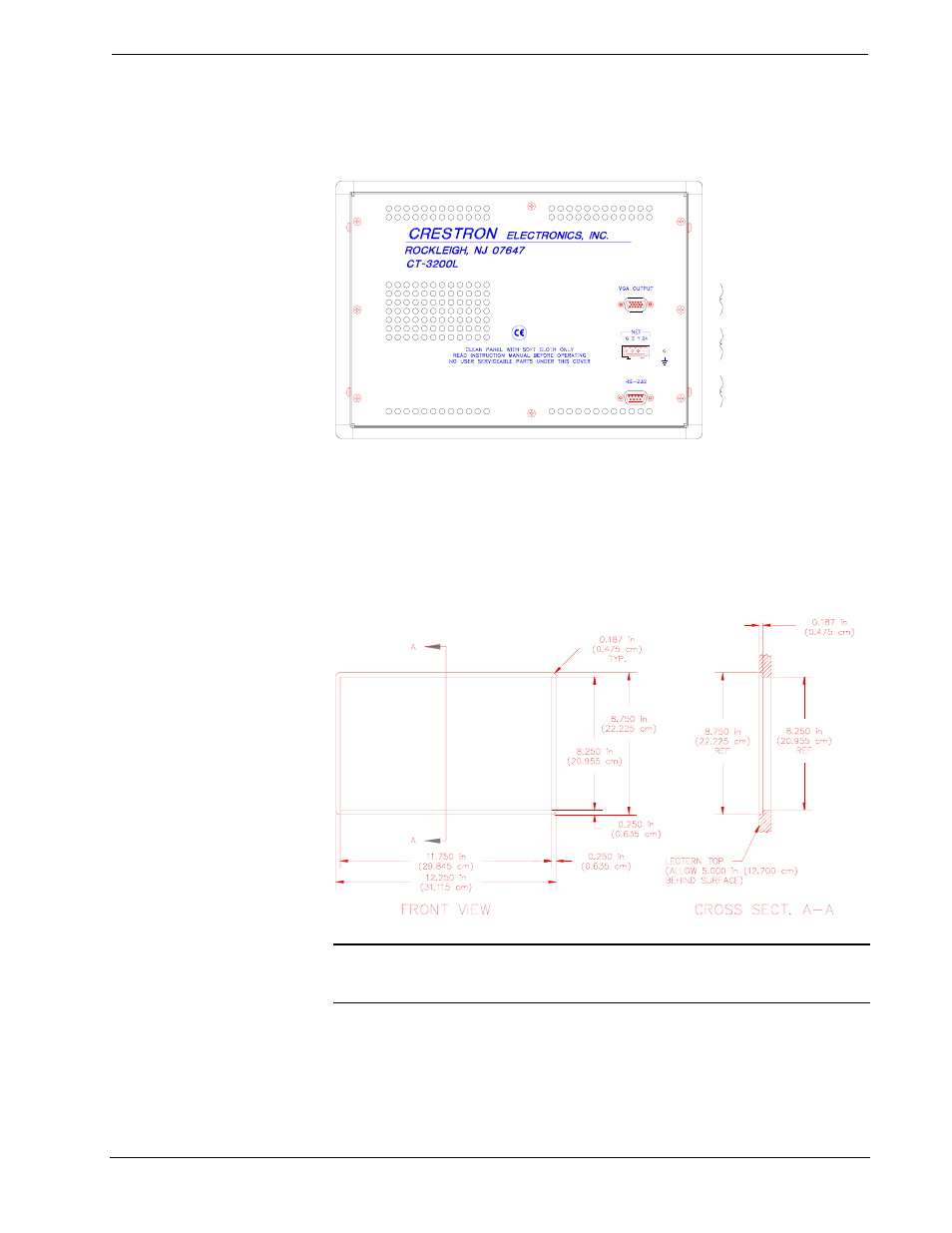

Typical Connection Diagram for Lectern-Mount Configuration

CONNECT TO

CONTROL SYSTEM

CONNECT TO SERIAL

PORT OF COMPUTER

Use only for direct connection to PC

to load panels without network.

Refer to the latest

revision of DOC. 5411.

CONNECT TO

ANY VGA DEVICE

(i.e., VIDEO PROJECTOR)

Preparation for Use

The only preparation that may be required is to mount the touchpanel. If a CT-3200L
is being installed, the cutout dimensions are required. Refer to the lectern cutout
details, shown after this paragraph, for these configurations. Cutout measurements in
the figure have been rounded up to the nearest 1/8 inch.

CT-3200L Lectern Cutout Detail

NOTE: Wall-mount and rack-mount kits are available options that can be purchased
with the lectern-mount configuration. Parts and instructions are provided with each
kit.

If a CT-3200 is being mounted to a flat surface, locate the mounting holes on the
“foot” of the touchpanel. Refer to the mounting information on the next page for
these configurations. Mount the touchpanel with #6-32 hardware (not supplied).

Operations Guide - DOC. 5725

Series 3200 Touchpanels

9
