Recommended Network Cable, Liberty Wire Reference: Cresnet
After completing the connections detailed in the following two sections, apply power
to the touchpanel and observe illumination of the touch-sensitive screen. The
touchpanel enters RUN MODE and displays a loaded panel page. To enter SETUP
MODE and not RUN MODE, hold a finger to the touchscreen as power is applied.
The user may configure the unit while in SETUP MODE. Refer to “Configuring the
Touchpanel” on page 10 For details.
Tiltcase Models
A supplied cable assembly (P/N 15717) with six-position, six-pin connectors on each
end connects the tiltcase configuration touchpanel to the CN-RJ11. Connect the CN-
RJ11 to the Cresnet system via the network cable. Refer to diagram shown below.

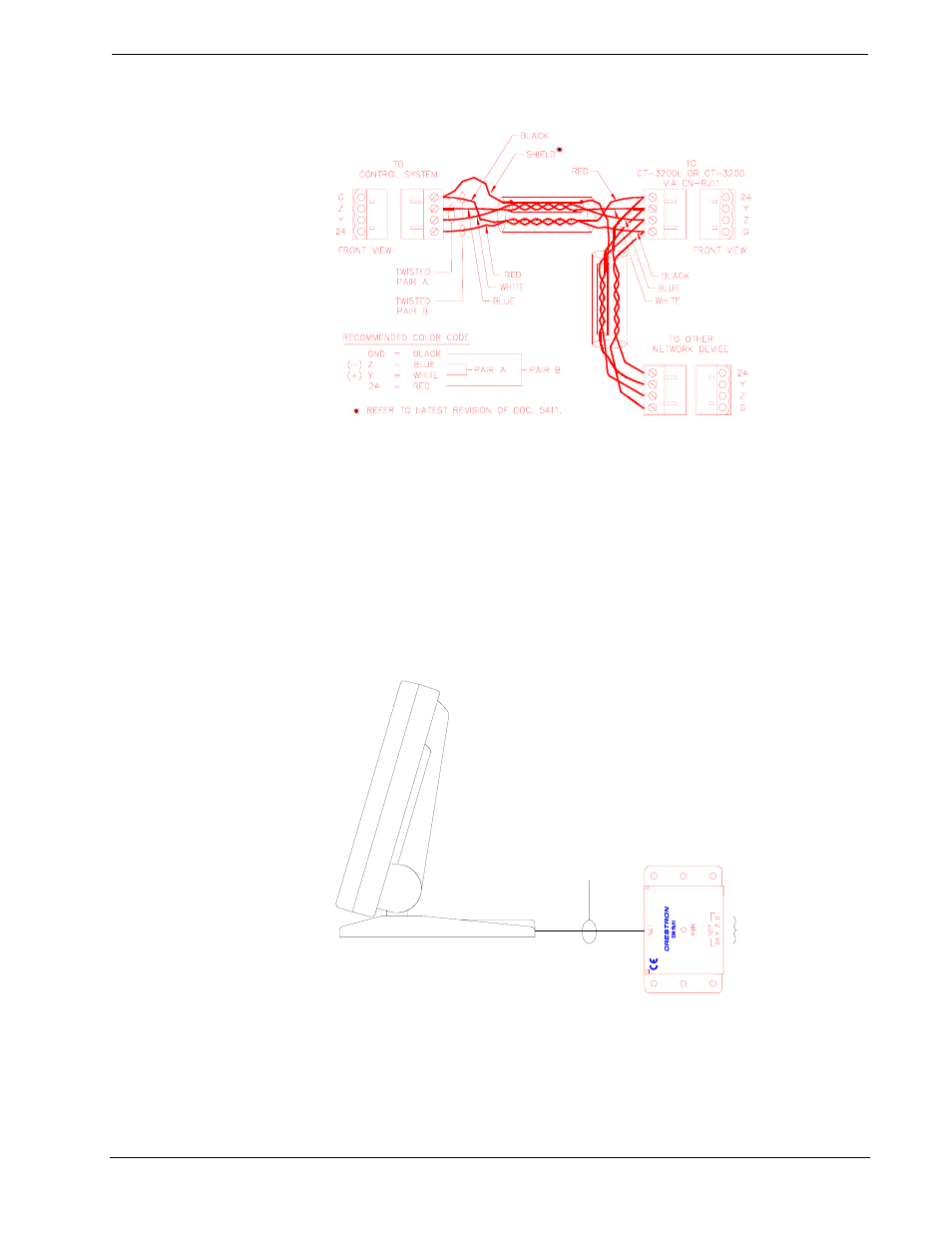

Typical Connection Diagram for Tiltcase Configuration
SIDE VIEW OF
TILTCASE CONFIGURATION
NOTE:
UNITS IN THIS ILLUSTRATION
ARE NOT DRAWN TO SCALE.
CABLE ASSEMBLY
(P/N 15717)
CONNECT TO
CONTROL SYSTEM
Refer to the latest
revision of Doc. 5411.
Lectern-Mount Models
Connect the lectern mount configuration directly to the Cresnet system via the
network cable. If applicable, connect the lectern mount configuration to the serial
port of the PC via the port labeled RS-232. Cable assembly is not supplied. If
8 • Series 3200 Touchpanels Operations Guide - DOC. 5725
