Processor Installation

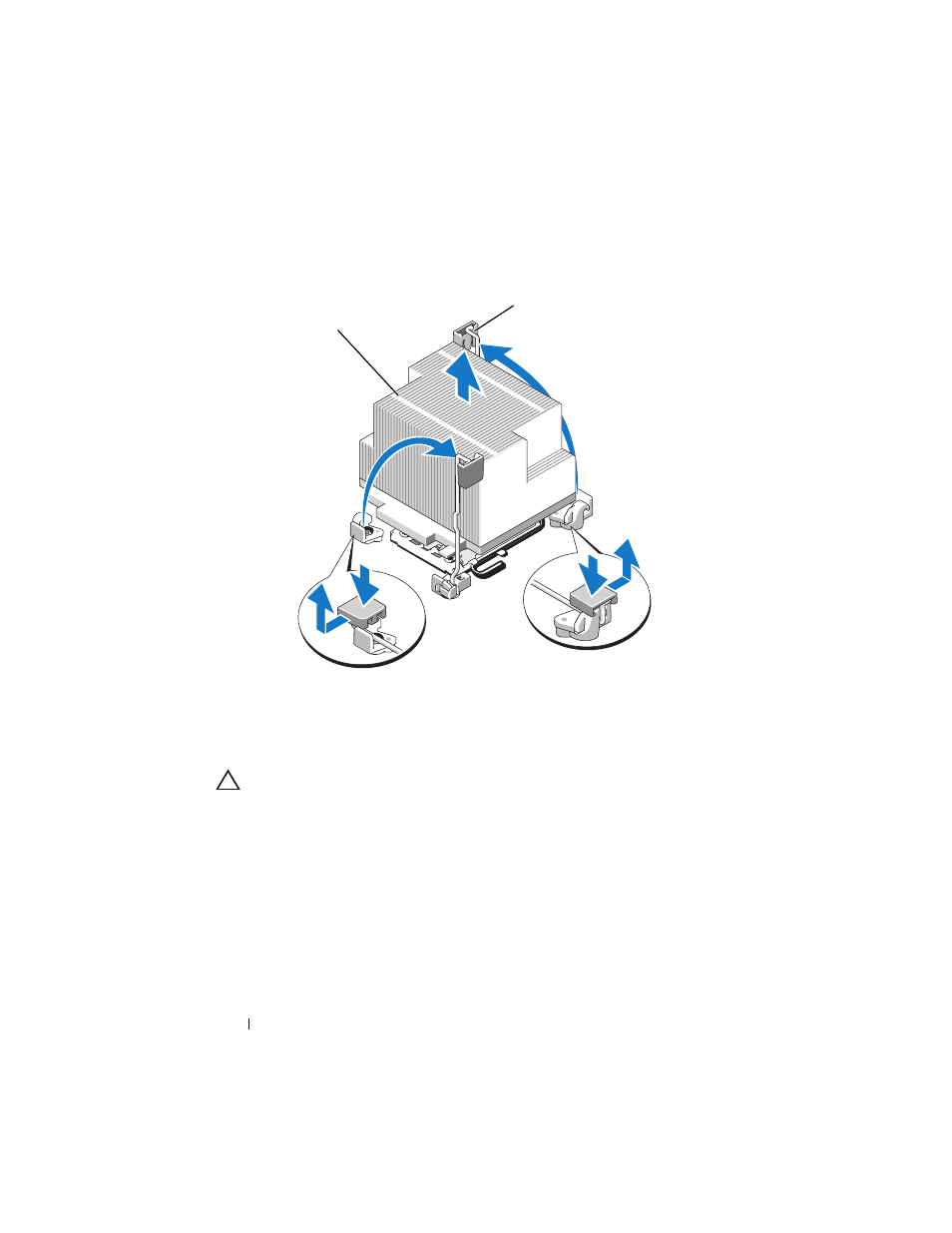

Figure 1-1. Installing and Removing the Heat Sink
CAUTION:
The processor is held in its socket under strong pressure. Be aware
that the release lever can spring up suddenly if not firmly grasped.
9 Position your thumb firmly over the processor socket-release lever and
release the lever from the locked position by pushing down and pulling out
from under the tab. Rotate the lever 90 degrees upward until the processor
is released from the socket. See Figure 1-2.
10 Use the tab on the processor shield to rotate shield upward and out of
the way. See Figure 1-2.
1 heat sink 2 release lever (2)
NOTE:
Your heat sink may appear differently than the one shown above. See your
Hardware Owner’s Manual for a system-specific illustration.
