Dell LCD TV W2306C - Manual (Page 8)

8 About Your LCD TV Display
www
.de
ll
.co
m |
sup
por
t.d
e
ll
.c
om

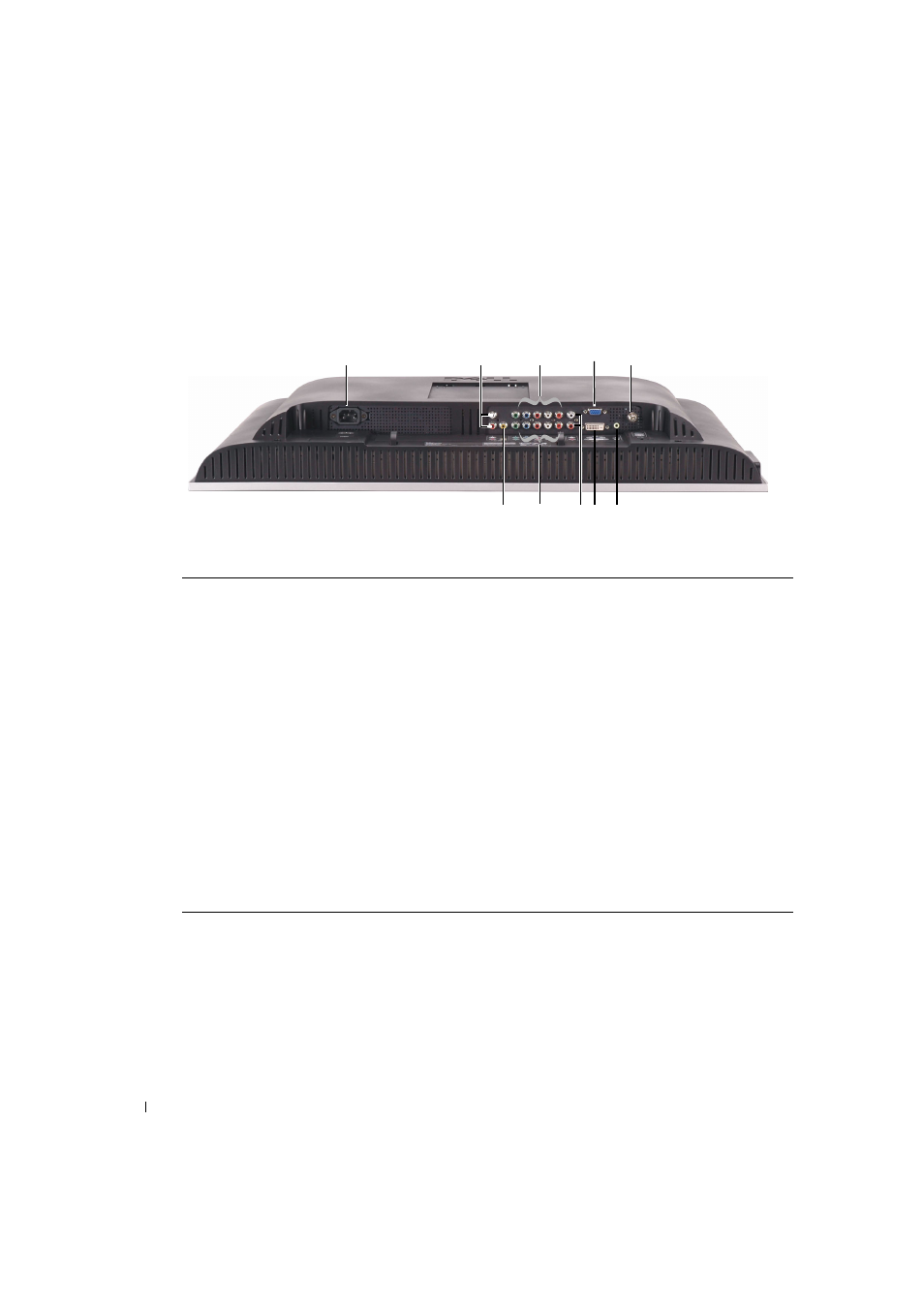

Bottom View
1 Power connector Connect your power cord.
2 Composite out/Audio Out (L/R) Connect a VCR.
3 Composite out/Video Out Connect a VCR.
4 Component video and audio
connectors (AV1)
Connect devices such as a DVD player or cable TV box.
5 Component video and audio
connectors (AV2)
Connect devices such as a DVD player or cable TV box.
6 DVI audio connector (L / R) Use the DVI audio connector if you have connected a device
such as a DVD player to the DVI connector.
7 VGA Connect your computer.
8 DVI connector Connect your computer or video devices such as a DVD
player.
9 Audio connector for VGA or DVI Connect the audio cable from your computer to the LCD
TV Display.
10 ANT/Cable Connect cable TV box or an antenna.
1 2
6
4 10
5 3 9
7
8
