1
Preassembled
(1) Roto-molded subwoofer enclosure
(2) 8"; 2 ohm subwoofer
(1) 100W class "D" amplifier
(2) Speaker grille Loose Components
(1) 17’ wire harness w/ pigtail style connector
(4) 1" self-taping Phillips screws
(1) 1/2" ground screw
(1) Star washer
(2) Attachment Hold Down Clamps
(2) “U” shaped brackets
PREPARATION
Parts list
(Qty) Component
Note: Installer MUST disconnect speaker-input leads to amplifier when using line-level input

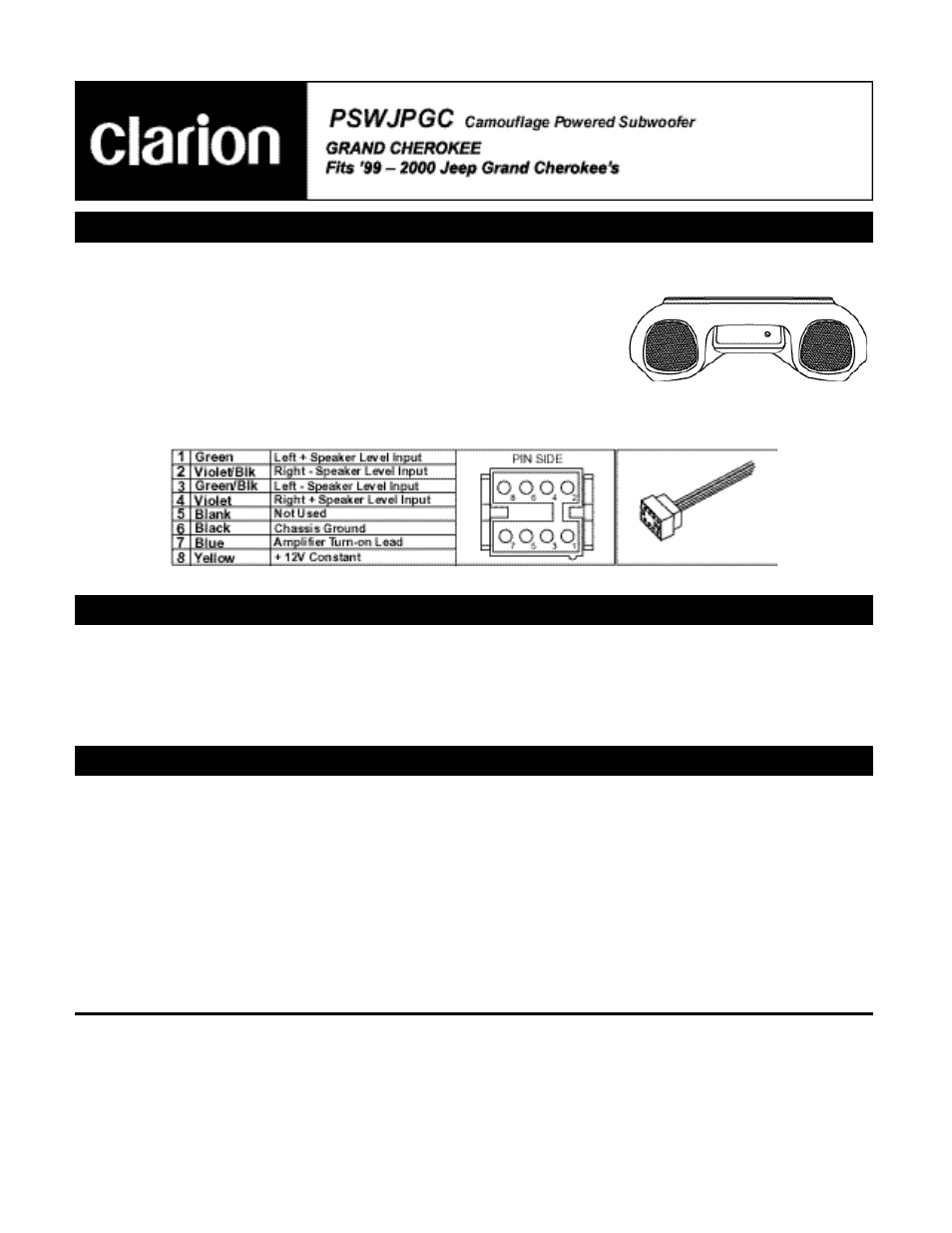

WIRING:
OVERVIEW
The Clarion Camouflage subwoofer system provides for the installation of a low frequency driver in an enclosure which
is powered by a small low current, high power class "D" (Digital) amplifier. The advantage to using this type of amplifier
is in the low current consumption of the amplifier at high power levels. The class "D" amplifier provided with this system
will produce a rated 100W into a 2 ohm load. The woofer supplied with this system uses a voice coil with rated imped-
ance of 2 ohms, and therefore is not considered a standard woofer. Replacing the woofer with any driver having an
impedance greater than 2 ohms will yield lower power output from the amplifier, and is not recommended.
PROCEDURE
Proper installation of this product requires proper tools and knowledge of car audio principles. If you are not comfortable
performing any of the outlined tasks below, contact a professional installation facility to perform the work.
OUTLINE
• Remove the head unit.
• Connect the Clarion "T" harness between the radio and factory wiring and route the harness extension to rear pas-
senger side of the vehicle.
• Remove rear quarter trim panel.
• Install subwoofer enclosure.
• Test subwoofer enclosure and head unit functions (fade, balance, dim, etc.).
• Adjust subwoofer gain.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CON-
DITIONS.
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDE-
SIRED OPERATION.
