GPGPU Dongle Cable Installation
Guidelines
This document contains information on assembling the GPGPU dongle cable.
Follow the procedure given in this document if your system was not pre-installed
with the GPGPU dongle cable.
NOTE:
For instructions on installing and removing the GPGPU card, see your system’s
owner’s manual at dell.com\support\manuals.
1 Connect the 8-pin connector end of the GPGPU dongle cable to the system
power cable.
2 Connect the 6-pin connector end of the GPGPU dongle cable to the GPGPU.
NOTE:
To prevent the cables from being pinched or crimped while installing the GPGPU
card, route the cables appropriately through the brackets available on the inside of the
chassis adjacent to the GPGPU card.
____________________
© 2013 Dell Inc. Printed in China. Printed on Recycled Paper.
Trademarks used in this text: Dell™ and the DELL logo are trademarks of Dell Inc.
2013 - 03

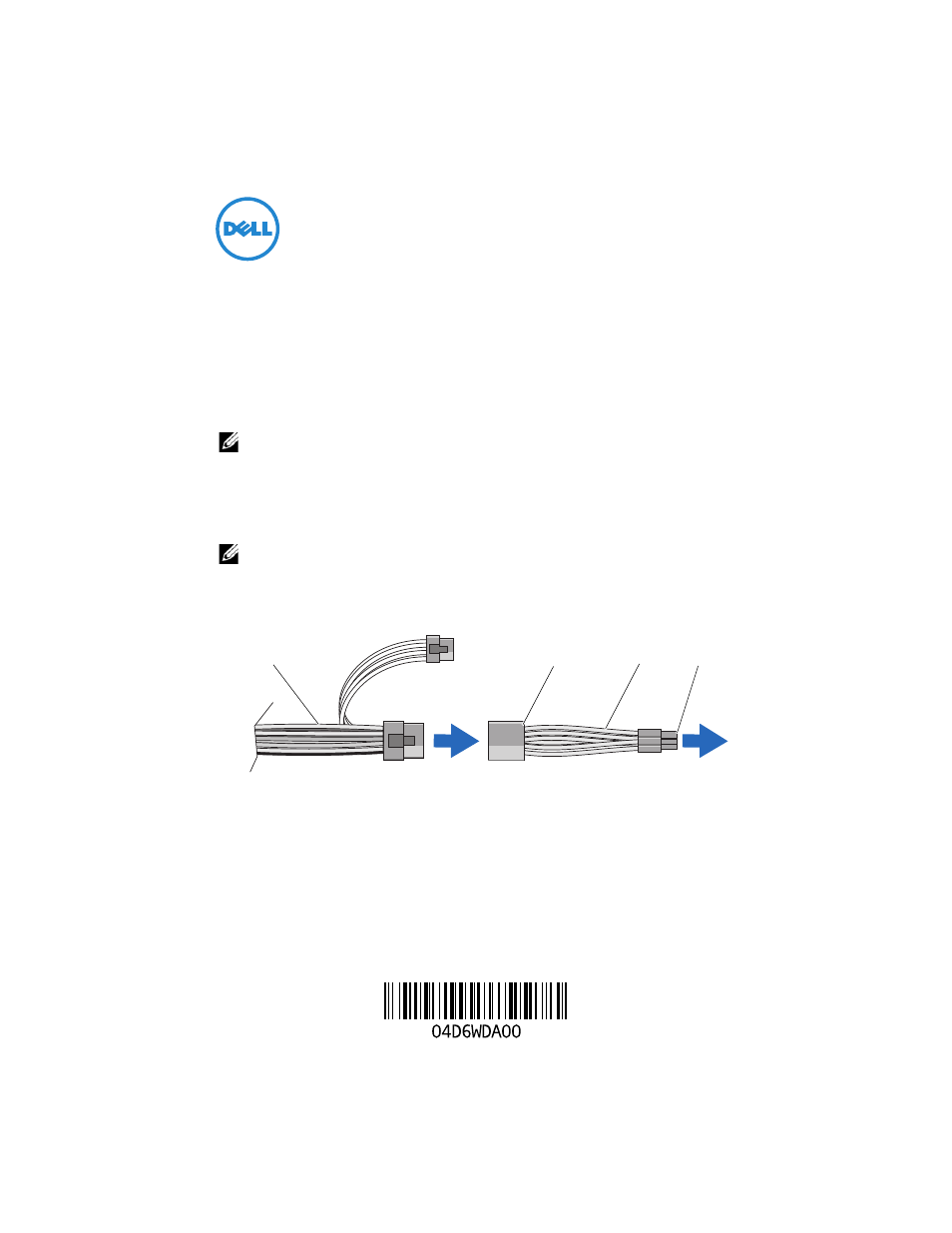

1 system power cable 2 8-pin connector (GPGPU dongle cable)
3 GPGPU dongle cable 4 6-pin connector (GPGPU dongle cable)
