About Your TV 7

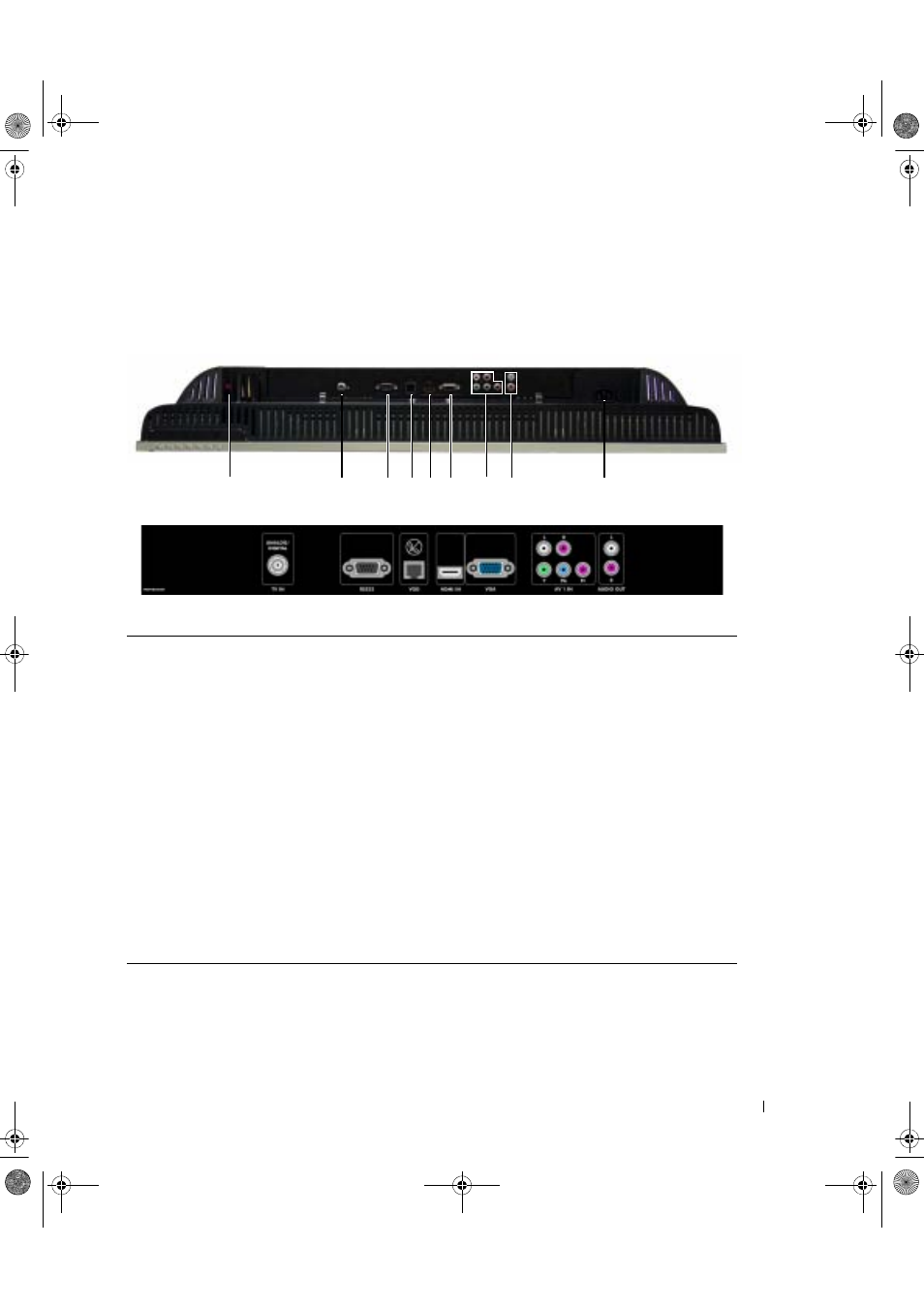

Bottom View
1 TV Speaker out connectors Connect speakers
2 TV IN connector
(Analog/Digital)
Connect an antenna or a cable TV box using the coaxial cable
(It is a Digital/Analog combo tuner)
3 RS232 connector For factory use only
4 VOD connector Connect to the Ethernet cable for Video On Demand(VOD)
5 HDMI IN connector Connect devices such as a DVD player or set-top box
6 VGA connector Connect your computer using a VGA cable
*The component audio connectors(AV1 IN - L/R) is shared by
Component and VGA
7 Component audio and
video connectors (AV1 IN)
Connect devices such as a DVD player, set-top box, or cable TV box
*This Audio L/R pair is shared by Component and VGA
8 Audio-out connectors (L/R) Connect a device such as a VCR if you have connected an antenna or
cable TV through the TV IN connector
9 Power connector Connect your power cord
1 2 4 7 9 8 3 5 6
