Activating the Integrated RAID Controller
www
.dell.com | support.dell.com

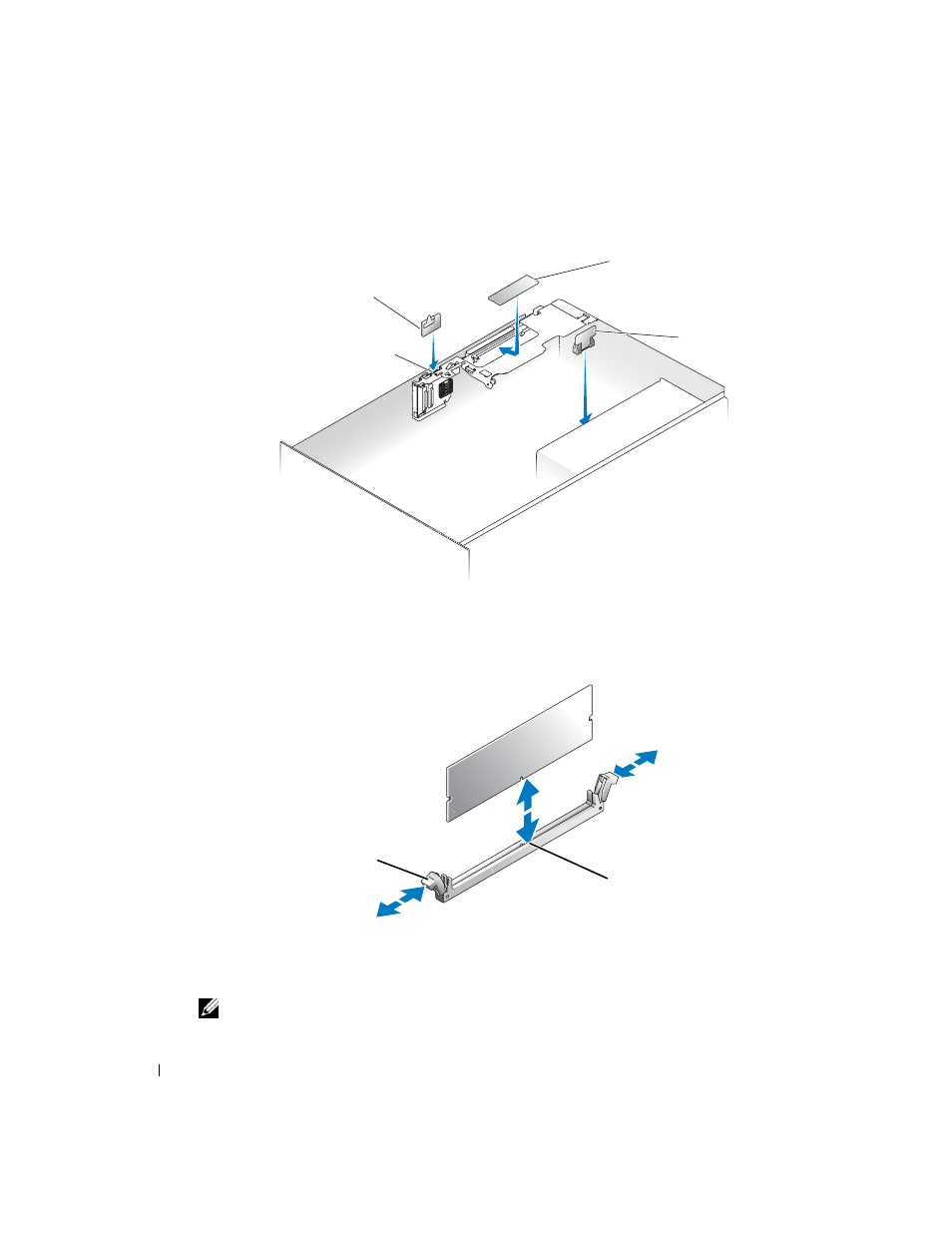

Figure 1-1. Locating the RAID Memory Module
6 Push the ejectors on the RAID memory module connector down and outward to allow
the memory module to be inserted into the connector. See Figure 1-2.
Figure 1-2. Installing the RAID Controller Memory Module
7 Locate the memory module that is included with the upgrade kit.
8 Align the RAID memory module’s edge connector with the alignment key,
and insert the memory module into the connector. See Figure 1-2.
NOTE:
Do not substitute unbuffered DDR 2 memory modules such as those used for system memory.
Use the memory module supplied in the RAID upgrade kit.
A B
SCSI B
SCSI A
RAID battery
RAID battery holder
RAID key
RAID memory module
alignment key
ejectors (2)
