Installation Instructions FSA/KSA-1004
3
PARTS

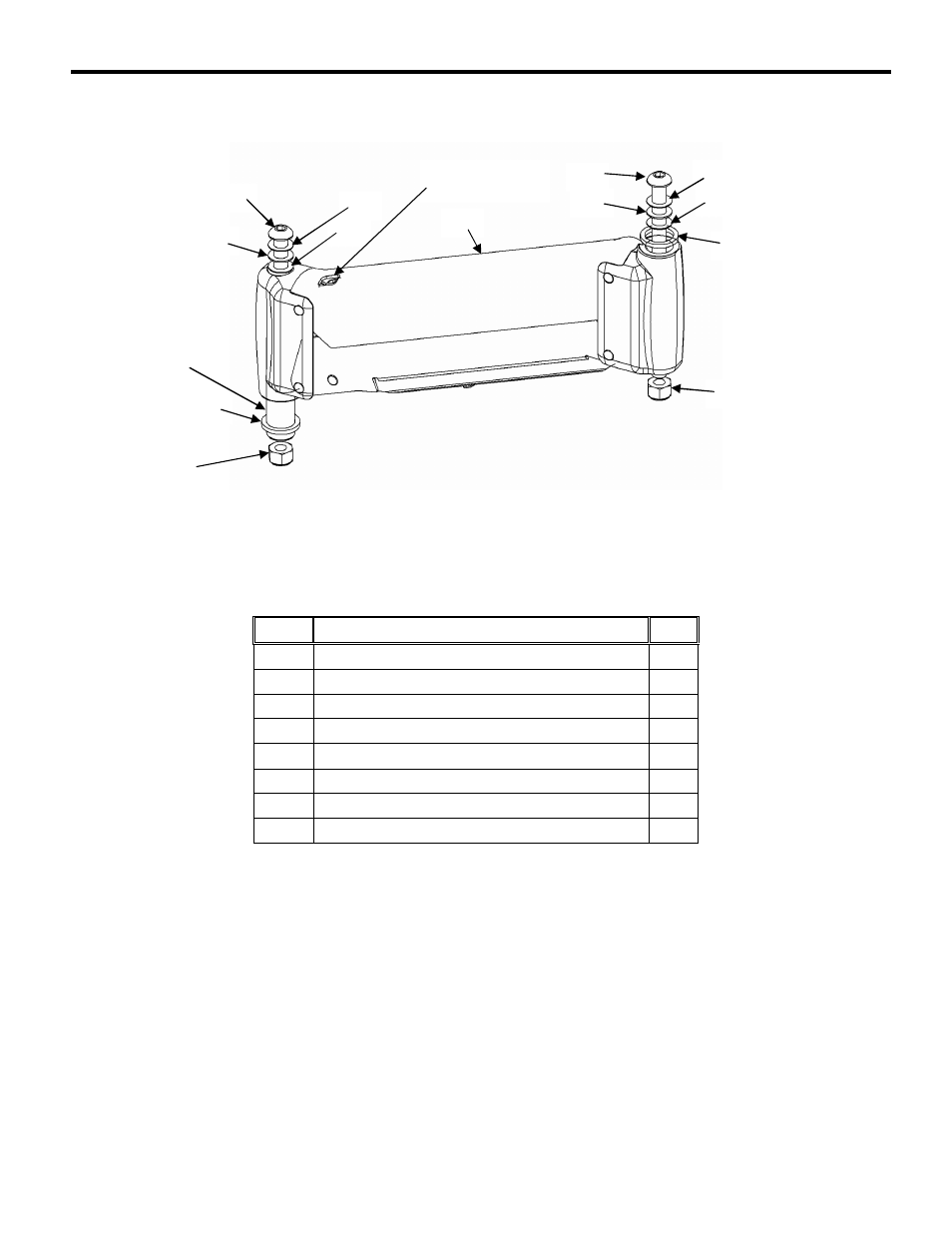

Figure 1. Lift Arm Installation Drawing
PARTS LIST
Table 1. Lift Arm Parts
PART DESCRIPTION QTY
10 LIFT ARM 1
20 WASHER , UHMW , .640 ID X .845 OD 2
30 WASHER , UHMWPE , .318 ID X .031 OD 2
40 PIVOT PIN , SPF 1
50 CAPSCREW , BUTTON HEAD 2
60 LOCK NUT , NYLOCK 1
70 SPACER , STAINLESS STEEL , .320 X .018 4
80 LARGE LOCK NUT , NYLOCK 1
60
10
40
50
50
20
70
70
70
70
30
30
20
Tension
adjustment bolt
80
