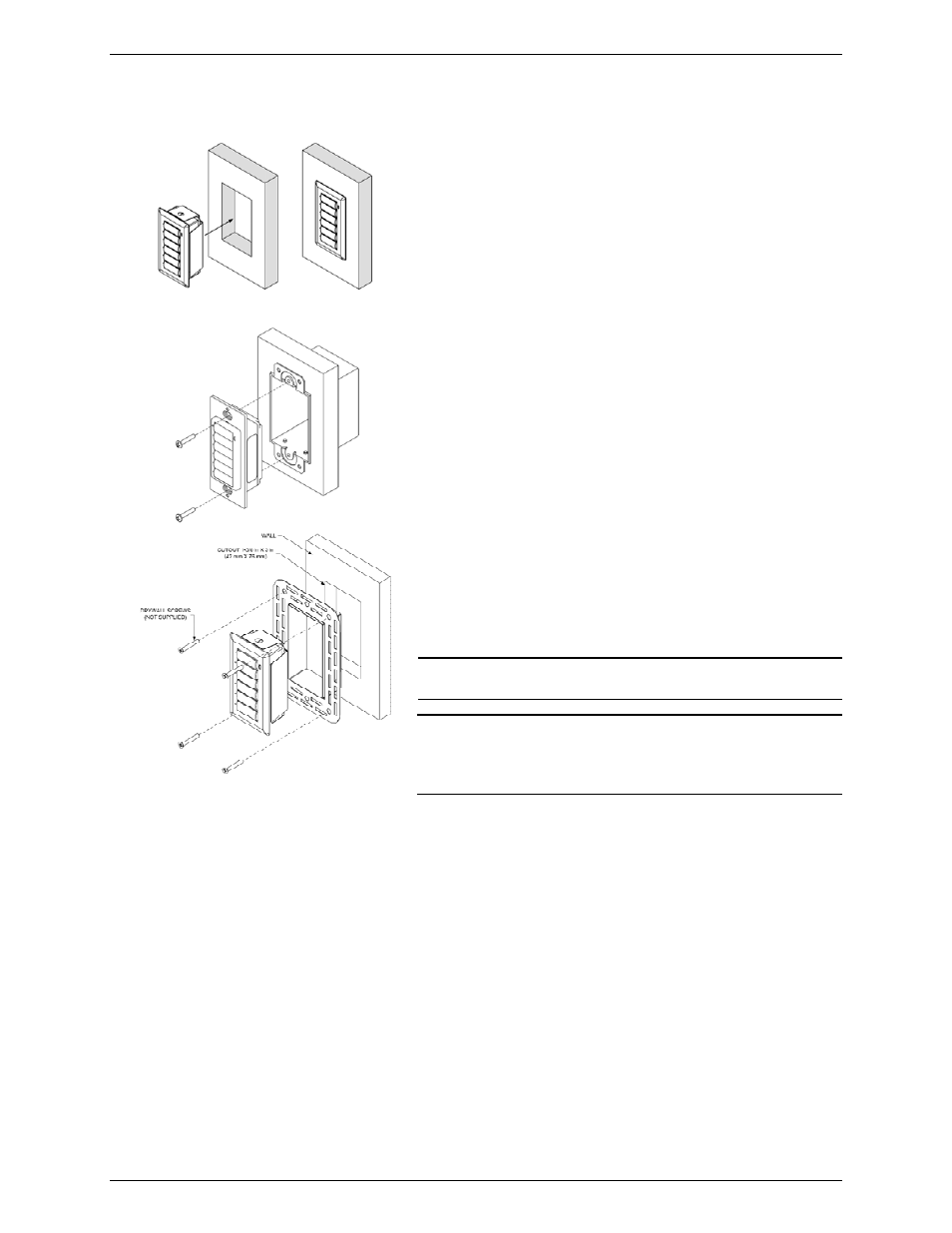

Cameo ™ Mounting Options
Cameo Flush Mount
Using the supplied template, carefully cut the hole for the Cameo
keypad. After the keypad is connected to Cresnet®, insert it in the hole.
The spring clip holds the keypad in place.
Cameo Standard Mount
Standard mount keypads fit in a standard single-gang box.
Finish the installation with a Decora® style faceplate.
Mud Ring Mount Kit
The Mud Ring Mount Kit (MMK-CBF-T) is the preferred mounting option
for the Crestron C2N-CB Series of Cameo keypads when cutouts in the
drywall (for the flush-mount keypad installation) are too large. This kit
provides support for additional plastering that can be applied to hide
irregularities in the cutout.
NOTE: This mounting option is intended for flush-mount keypads only.
Do not use the C2N-CB with the decorator-style keypads.
NOTE: A Crestron module in Crestron Database version 17.1.0, the C2N-
Cameo Bargraph Feedback v1.0, makes it possible to use the feedback
LEDs like a bar graph, for a function such as volume control, where the
switches are used to control the volume, the LEDs display its level.
