Crestron Residential Lighting Design Guide GreenLight Options–CAEN Enclosures
Doc. 5999F 15
Universal Mounting Plates
Crestron Universal Mounting Plates (CAEN-UMP Series) are a complete line of
accessory plates, which allow mounting of non-Crestron equipment to any Crestron
Automation Enclosure (CAEN Series). Third-party products such as phone and alarm
systems can be mounted to these plates. The advantage to using the CAEN-UMP is
that a variety of sizes are available and each plate occupies the same area as one, two
or four Crestron lighting modules (CLX-series).
The size corresponds to the number of module spaces and their arrangement within
the enclosure. For example, CAEN-UMP2X2 occupies four module positions and
CAEN-UMP1x1 occupies one module position. The others (CAEN-UMP2X1 and 1X2)

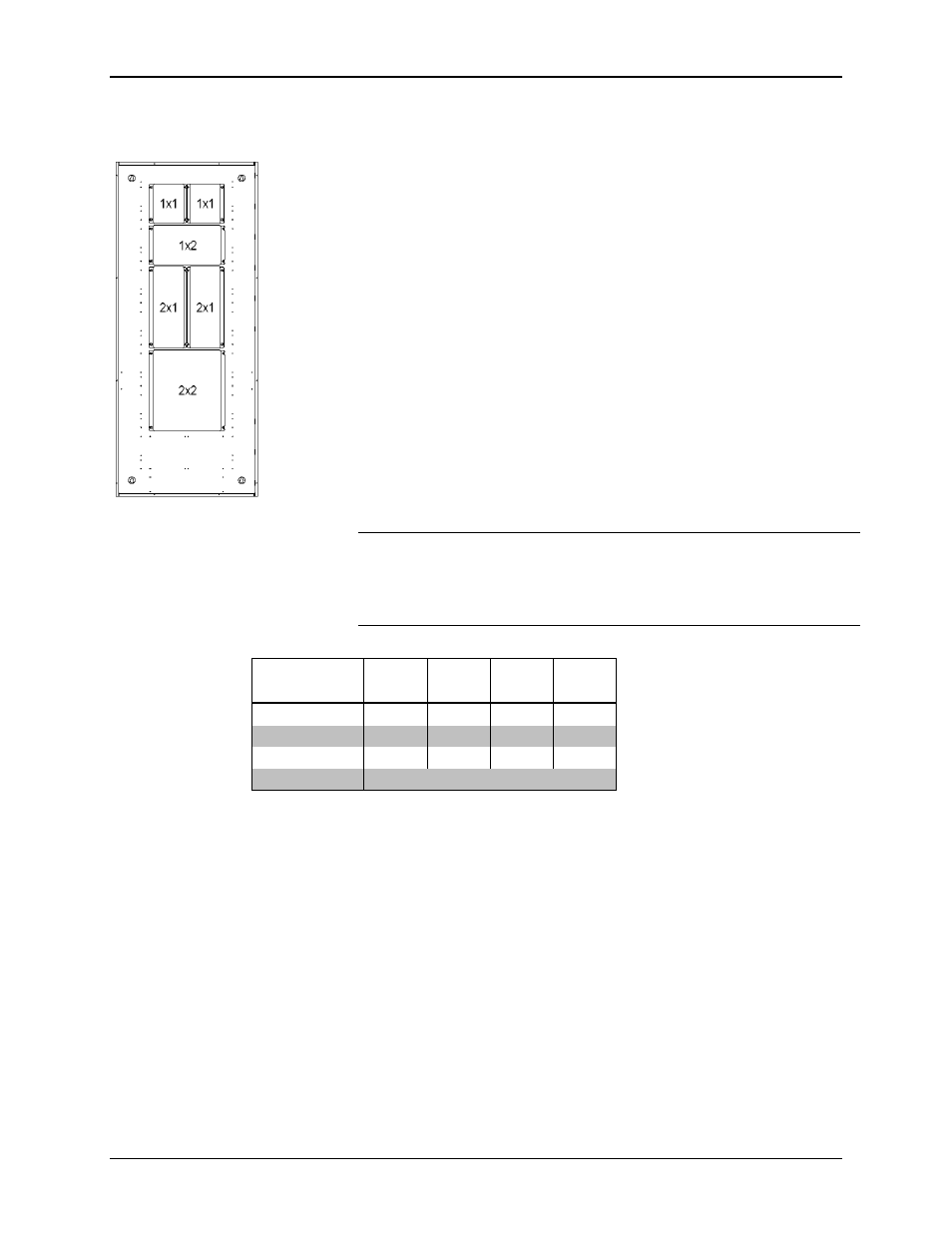

occupy two module positions. Refer to the illustration for an example of plate location
and orientation within a double-wide enclosure. The table below lists the dimensions
and weight for each CAEN-UMP model. The CAEN-UMP must be mounted in
accordance with all national and local codes.
Use the four supplied (8x1/4”) screws to attach a CAEN-UMP to an enclosure. Crestron
recommends that the keyholes on the plates be located toward the outer edge of the
enclosure,as shown in the illustration. As a result, the flanges of the plates do not
overlap each other when positioning any combination of
CAEN-UMP2X1s, CAEN-UMP1X1s, or lighting modules side-by-side in an enclosure.
NOTES: Adhere to Class 1 versus Class 2 wiring requirements when considering the
equipment attached to the CAEN-UMP in an enclosure.
Third-party equipment attached to a CAEN-UMP within a Crestron Automated
Enclosure should not be considered part of the Crestron system.
CAEN Universal
Mounting Plate 2X2 2X1 1X2 1X1
Weight 22.6 12.0 12.4 6.6
Height 15 1 /
8
15 1 /
8
7 7 /
16
7 7 /
16
Width 14 6 15 /
16
14 6 15 /
16
Depth 5 /
8
Dimensions are provided in inches, edge to edge.
Weight is provided in ounces.
