Operation
Legend 300E Spot User Manual Rev. 01g -11-
4. Operation
Control Panel
Description
Button Function
Exits from the current menu or function
Enables the currently displayed menu or sets the currently selected
value in to the current function
Navigates upwards through the menu list and increases the numeric
value when in a function
Navigates downwards through the menu list and decreases the
numeric value when in a function

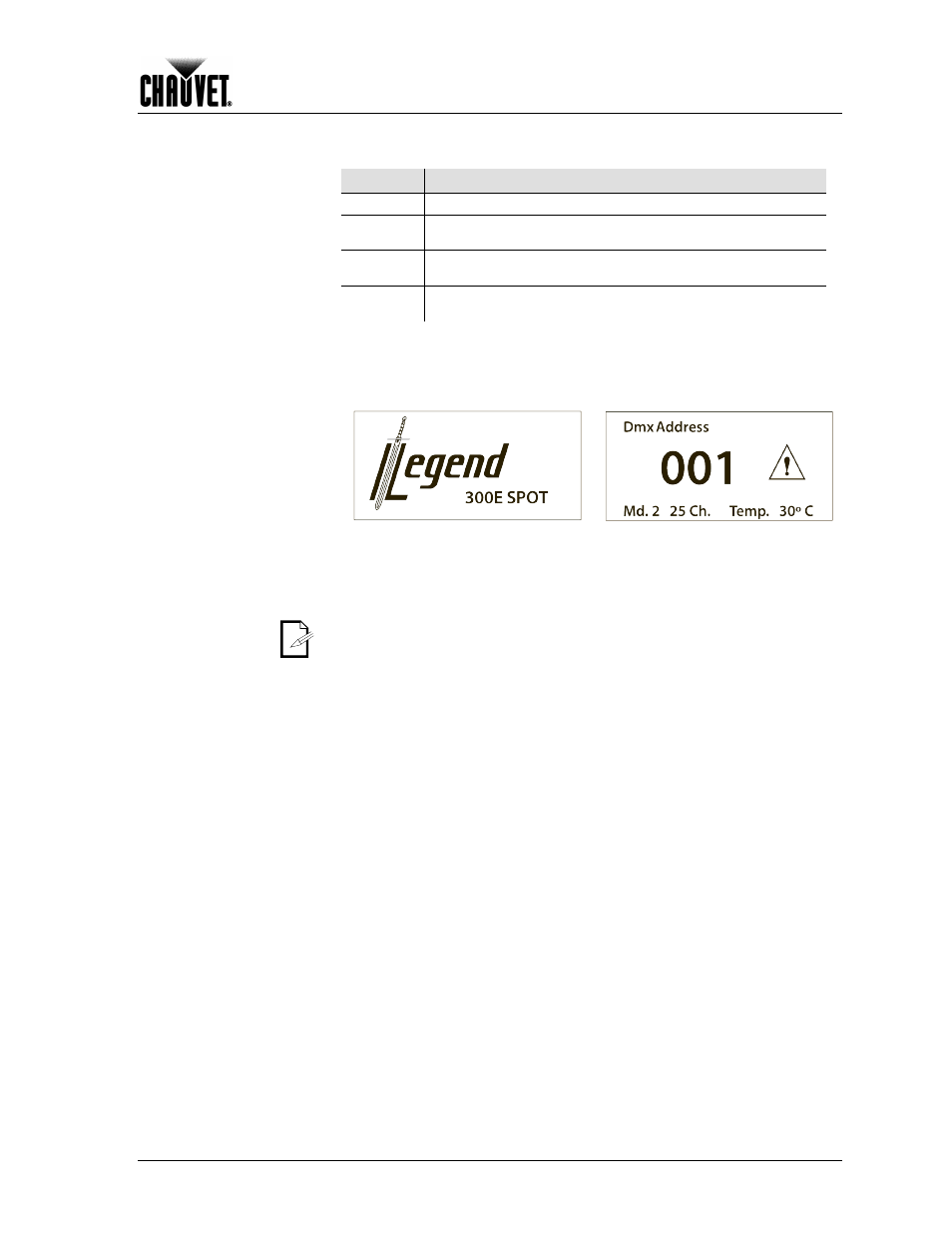

LCD Display The Legend 300E Spot features a backlit liquid crystal display (LCD) that provides
plenty of information regarding the fixture’s settings and status. In addition, the LCD is
reversible. This allows reading it normally whether the fixture is on the floor or hanging
from a truss.
Upon power up, the LCD will show the Legend logo and the fixture identification, as
shown on the left figure above. After completing the power up tests, the LCD will show
the DMX address, the DMX mode, and the temperature, along with the warning sign if
the tests have detected an error.
Press to read the corresponding error message (see Error Messages in
the Technical Information section).
Press while looking at the error messages to clear them.
Control Options You can set the Legend 300E Spot start address in the 001~512 DMX range. This
allows for the control of up to 17 fixtures in the 29-channel Mode 2. The Legend 300E
Spot works with any compatible DMX controller using standard DMX cables or the
optional W-DMX receiver.
Programming Carry out all the programming procedures indicated below from the control panel. Refer
to the Menu Map page to learn how the menu options relate to each other
Navigation Buttons To enter programming mode, press
To highlight a menu option or to change a setting, press or .
To change menu levels as shown in the Menu Map, press or
To accept the current or new value, press .
To return to the previous menu without making changes, press
To exit programming mode, press
