Crestron QM-DA QuickMedia™ Distribution Amplifier
QM-DA Specifications (Continued)
SPECIFICATION DETAILS
Enclosure
Chassis
Steel, black matte powder coat finish, convection
cooled, vented top and sides
Faceplate Extruded aluminum, black matte powder coat finish
with polycarbonate label overlay
Mounting Freestanding or 1U 19 inch rack mountable
(adhesive feet and rack ears included)
Dimensions
Height 1.70 in (4.32 cm)
Width 17.03 in (43.25 cm) without ears
19.01 in (48.29 cm) with ears
Depth QM-DA-4 and QM-DA-8: 6.64 in (16.86 cm)
QM-DA-16: 10.14 in (25.75 cm)
Weight QM-DA-4: 2.82 lbs (1.28 kg)
QM-DA-8: 2.88 lbs (1.31 kg)
QM-DA-16: 4.77 lbs (2.16 kg)
Physical Description
This section provides information on the connections, controls and indicators
available on your QM-DA.

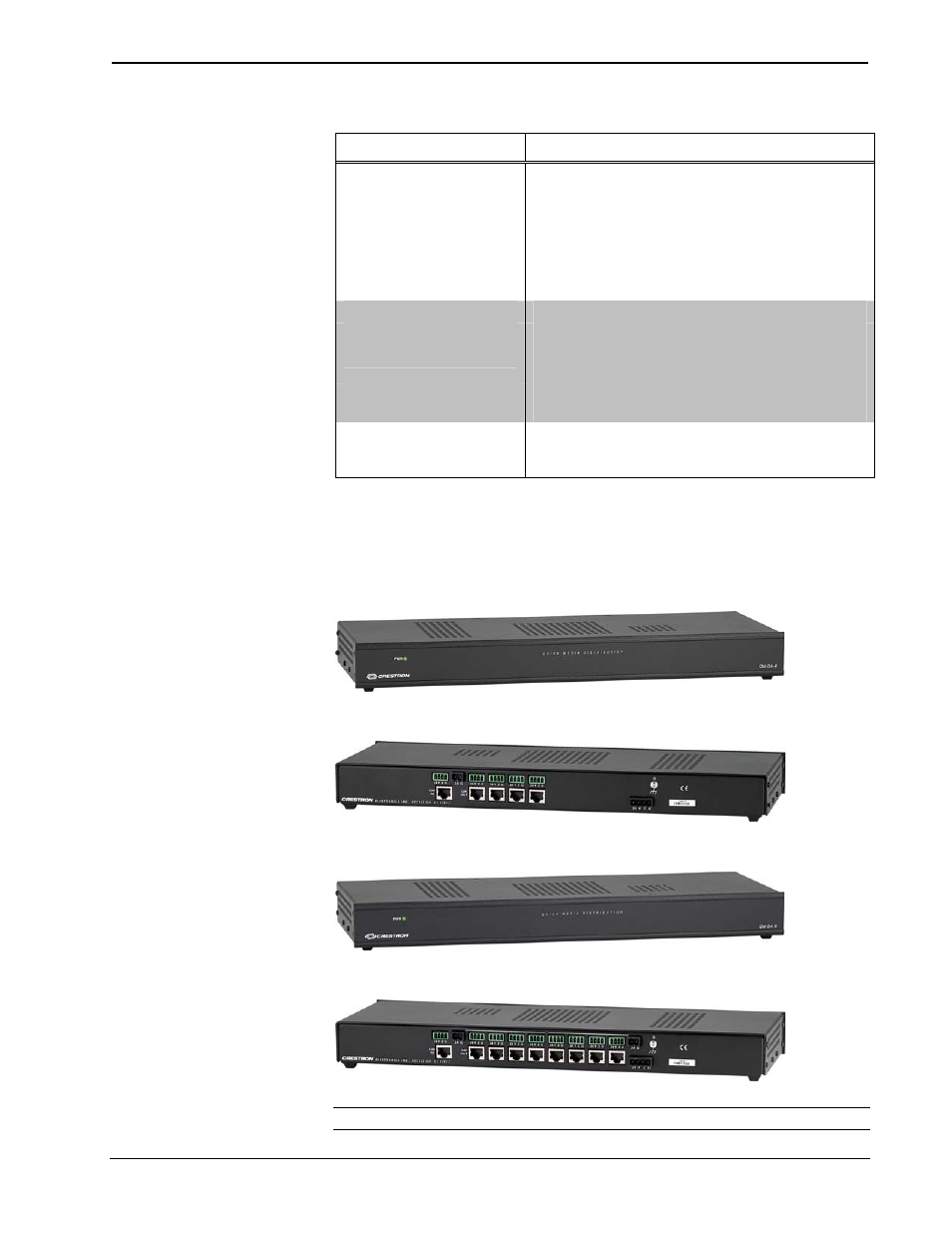

QM-DA-4 Front View
QM-DA-4 Rear View
QM-DA-8 Front View
QM-DA-8 Rear View
NOTE: At the time of printing, photographs of the QM-DA-16 were not available.
