PA213
10 www.baumer.com
2 Description
2.1 System description
The process display is intended as indicator for measured values in
industrial applications.
-Voltage input 8...32 VDC
-Capable of battery voltage display
-Supply via measured voltage
-LED display, 3 digits
-DIN housing 48 x 24 mm

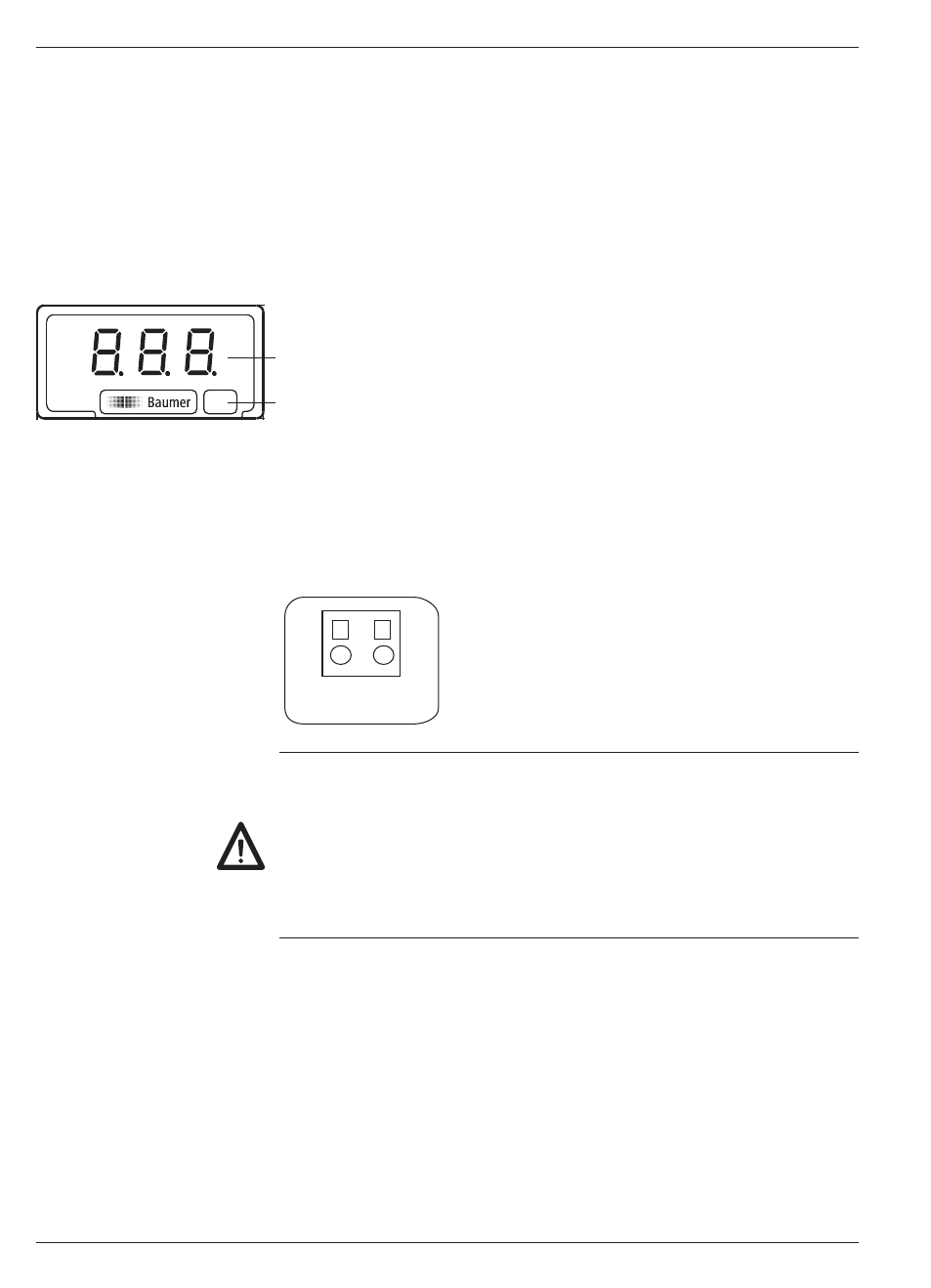

Display
3 digits
Sticker to indicate measuring unit
3 Connection
This chapter is about terminal assignment and will present some
wiring examples.
3.1 Terminal assignment
9'&
Litz contact only by means of connector sleeves with insulating
enclosures for reasons of shock protection according to EN 61010.
Do not otherwise assign contacts that have been left unassigned ex
factory. We recommend to screen all sensor terminal leads and to
ground the shield on one side. Shields on both sides are recommen-
ded in case of RF interference or in case of equipotential bonding
over long distances. The sensor leads should not be in the same
phase winding as the mains supply and the output contact leads.
3.2 Voltage supply connection
Device supply is by the measured voltage.
