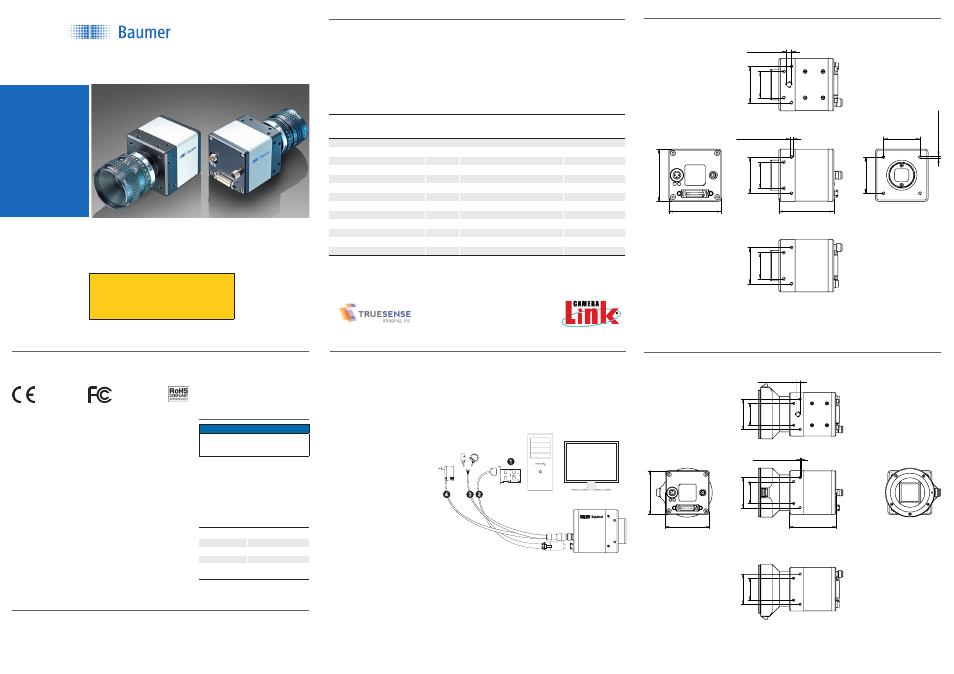

Baumer SXC cameras User Manual
Baumer Sensors
Safety
Further Information
For further information on our products visit www.baumer com
For technical issues, please contact our technical support:
support.cameras@baumer com Phone +49 (0)3528 4386-0 Fax +49 (0)3528 4386-86
© Baumer Optronic GmbH Badstrasse 30 DE-01454 Radeberg, Germany
Technical data has been fully checked, but accuracy of printed matter not guaranteed.
Subject to change without notice. Printed in Germany 08/13. v1.3
11083691
FCC – Class B device
N
ote
: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursu-
ant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interfer-
ence in a residential environment. This equipment gener-
ates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructios,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occure in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off an
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
▪
Increase the separation between the equipment and the
▪
receiver.
Connect the equipment into an outlet on a circuit different
▪
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
▪
for help.
Conformity:
CE, FCC Part 15 Class B, RoHS
Safety Precautions
Notice
See User s Guide for the com-
plete safety instructions!
Protect the sensor from dirt and
▪
moisture.
Never open the camera housing.
▪
Avoid camera contamination by
▪
foreign objects.
Environmental requirements:
Storage temp.
-10°C ... +70°C
Operating temp.
+5°C ... +60°C
Housing temp.
max. +60°C
Humidity
10 % ... 90 %
Non-condensing
Quick Start Guide
SXC CameraLink
®
cameras with Truesense Imaging sensors
Product Specification
SXC cameras – Maximum Performance with Truesense Imaging sensors
Excellent image quality at high image rates
▪
Resolutions of 1, 2, 4 or 8 megapixel
▪
Frame rates up to 120 fps
▪
CameraLink
▪
®
Base for high transmission rates
Compact design (52 x 52 x 55 mm)
▪
Camera Type
Sensor
Size
Resolution
Full Frames
[max. fps]
Monochrome
SXC10
1/2"
1024 x 1024
120
SXC20
2/3"
1600 x 1200
68
SXC21
2/3”
1920 x 1080
64
SXC40
1”
2336 x 1752
32
SXC80
4/3”
3296 x 2472
16
Color
SXC10c
1/2”
1024 x 1024
120
SXC20c
2/3”
1600 x 1200
68
SXC21c
2/3”
1920 x 1080
64
SXC40c
1”
2336 x 1752
32
SXC80c
4/3”
3296 x 2472
16
Installation
Connect the camera using
▪
an appropriate cable to the
framegrabber board on your
PC using the mdr-26 jack on
he camera side
If required, wire the digital
▪
I/Os by using the 8 pin
connector
Connect the camera to
▪
power supply
Installation sample
1 - Framegrabber board; 2 - Camera Link
®
cable; 3 - Process interface cable; 4 - Power
cable
Dimensions
● SXC-F (F-Mount version)
26
36
26
36
16 x M3 depth 6
UNC 1/4 20
52
52
26
36
55
Dimensions
● SXC (C-Mount version)
26
36
16 x M3 depth 6
UNC 1/4-20
4
x
M
3
de
pt
h
6
52
52
36
26
36
36
54
36
26
Latest software version and technical
documentation are available at:
