CALL TOLL FREE 1-800-DR-OWNER 13

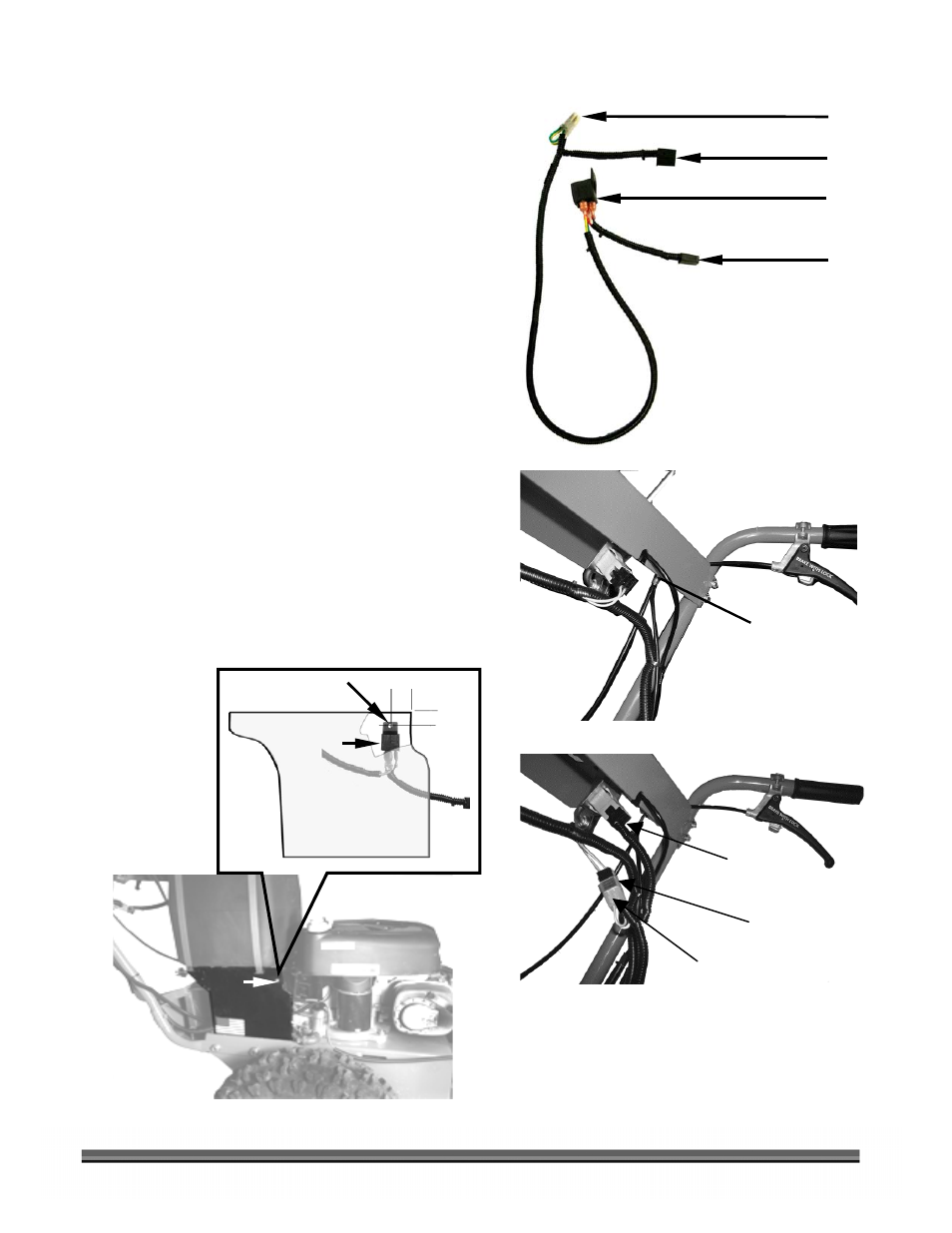

Figure 12
Installing the Interface Relay Harness
Tools Needed:
•
3/8" Open End Wrench
•
Phillips Screw Driver
•
Electric Drill
•
3/16" Drill Bit
•
Tape Measure
1. Examine the Wire Harness and identify the
connections as shown in Figure 11 .
2. Locate the Blade Engagement connection
beneath the Handlebar Control Panel
(
Figure 12 ) and remove the existing
connector from the Blade Engagement
Switch.
3. Insert Connector B into the Blade
Engagement Switch ( Figure 13 ).
4. Plug the Original Wire Harness Connector
into the A Connector of the new harness.
5. Locate and drill a 3/16" hole in the Right
Side Gas Tank Support, if not already there
(
Figure 14 ).
Figure 11
Figure 13
Wire Harness Connections
Original Upper Connection
Existing Blade
Engagement
Connection
New
Connector
B
Original
Connector
New
Connector
A
Right Side Gas
Tank Support
3/16" Hole
1"
1"
Figure 14
Relay Mounted
Vertical
Mounting
Screw
To original Wire Harness PTO Connector A
PTO Switch (Blade Engagement) B
UPPER
END
Interface Relay C
To Generator D
LOWER
END
