CALL TOLL FREE 1-800-DR-OWNER 11
DO NOT PULL THE DECK AWAY FROM THE
POWER UNIT UNLESS YOU HAVE SOMEONE
HOLDING THE HANDLEBARS TO PREVENT IT
FROM FALLING BACKWARD.

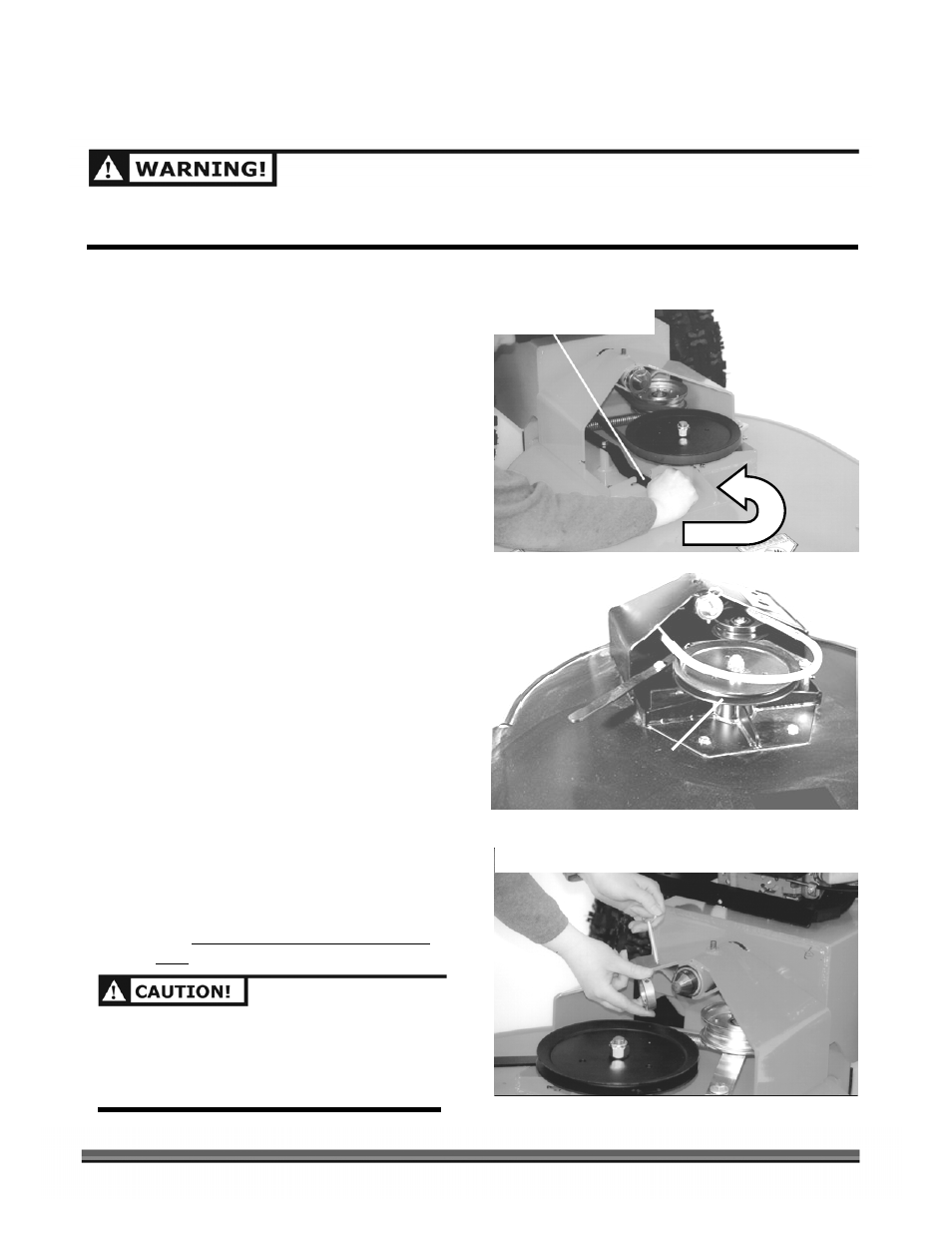

Removing the ATM Brush Deck
Figure 4
Figure 5
Figure 6
1. Remove the black belt guard by unscrewing
the black knob, lifting the cover and pulling
up and back to remove it.
2. Release the Belt Tension Lever ( Figure 4 ).
3. Remove the Belt from the Deck Pulley and
the ATM Engine Pulley ( Figure 5 ).
4. Remove the pin and collar ( Figure 6 ), and
then pull the power unit away from the
deck.
Belt Tension Lever
Belt Removed
Pin and Collar Removed
ALWAYS STOP THE ENGINE AND DISCONNECT THE SPARK PLUG WIRE(S) BEFORE PERFORMING ANY
MAINTENANCE OR SERVICING PROCEDURE ON YOUR MACHINE.
