12 DR
®
GENERATOR ATTACHMENT

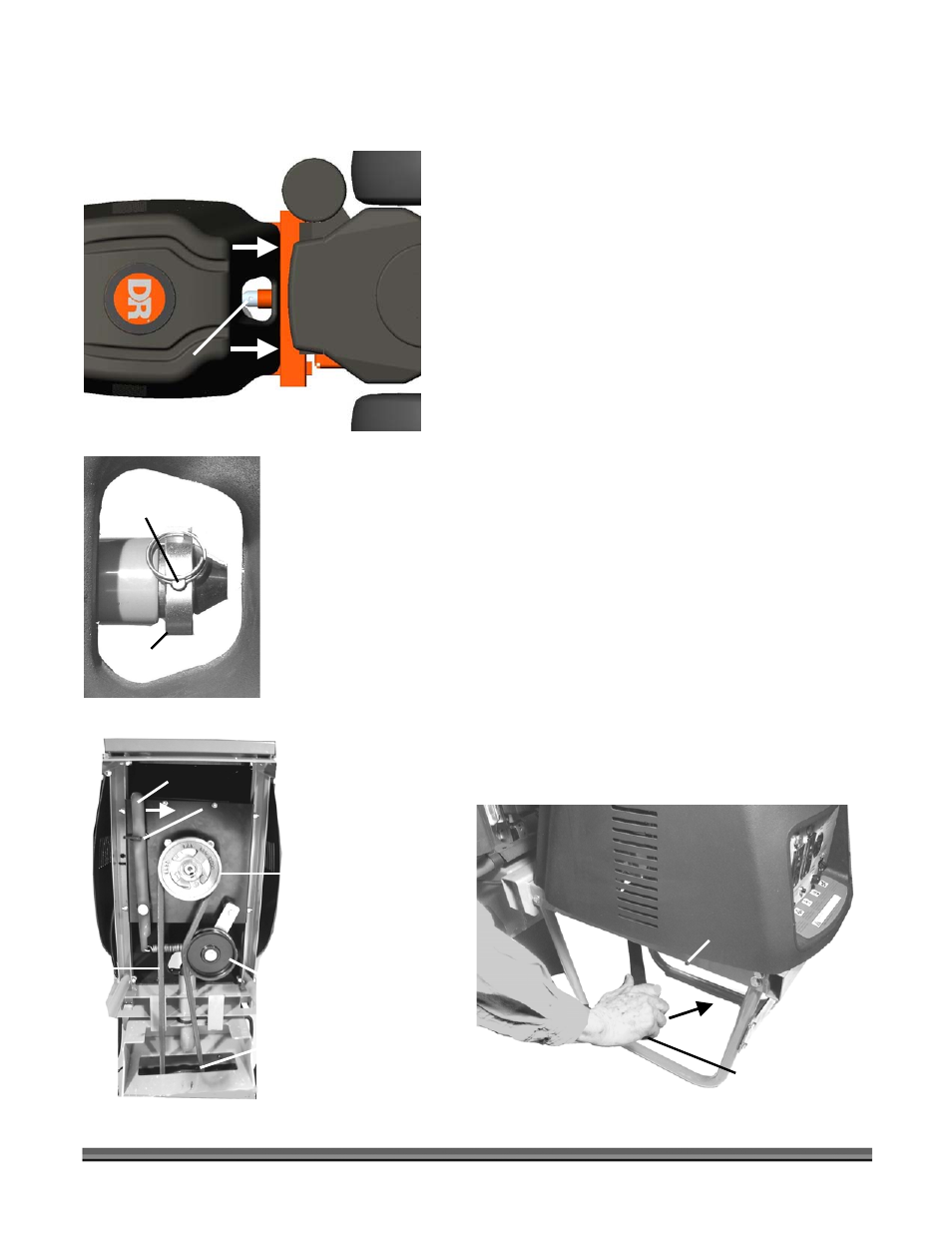

Installing the DR GENERATOR ATTACHMENT
1. With the help of another person to steady the
ATM power unit; line up the GENERATOR
ATTACHMENT with the ATM Attachment Pin
and slide the Generator onto the Pin (
Figure 7 ).
2. Reattach the Collar and Retaining Pin to secure
the Generator ( Figure 8 ).
3. Pull and release the Belt Tension Lever from the
Stow Clip beneath the Generator ( Figure 9 ).
4. Install the supplied Drive Belt on the Engine
Pulley below the ATM ( Figure 9 ).
5. Route the Drive Belt around the Generator Belt
Tension Pulley and the Generator Drive Pulley
(Figure 9).
6. Push the Belt Tension Lever back into its locked
position on the Generator ( Figure 10 ).
Figure 7
Figure 8
Figure 10 Figure 9
ATM
Generator
Attachment Pin
Collar
Retaining Pin
Belt Tension Lever
Belt Tension Lever
Stow Clip
Engine
Pulley
Drive
Belt
Belt Tension
Pulley
ATM
Drive
Pulley
Generator
Stow Clip
