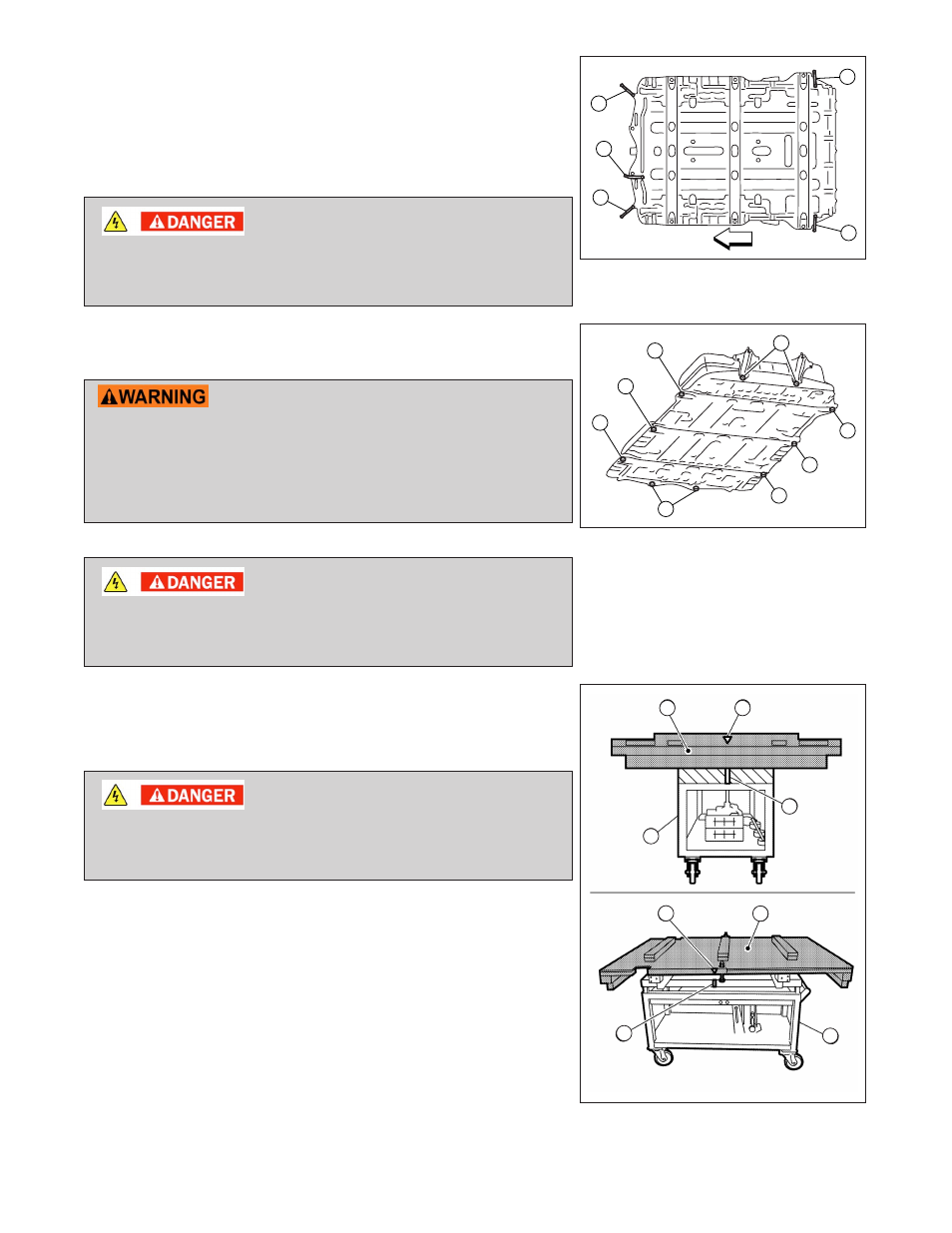

4. Remove the bonding plates (3 locations).
NOTE:
The bonding plate (1, 2 and 3) shape differs
depending on the location of installation.
Touching high voltage components without wearing
appropriate PPE will cause electrocution.
5. Remove ONLY the Li-ion battery mounting bolts (A) (6
bolts).
At this stage of disassembly, NEVER remove the 4 bolts
(B) shown in the illustration. These remaining 4 bolts
will retain the Li-ion battery to the vehicle body
while the lifter table can be set up in the next step.
Touching high voltage components without wearing
appropriate PPE will cause electrocution.
6. Set the pallet (1) onto the lifter table (2).
• Align the pallet center mark (A) and the lifter center
mark (B) (white line).
Touching high voltage components without wearing
appropriate PPE will cause electrocution.
2
1
2
3
3
AAYIA0117ZZ
B
B
A
B
A
A
A
B
AAYIA0118ZZ
1
1
2
2
B
B
A
A
AAYIA0097ZZ
