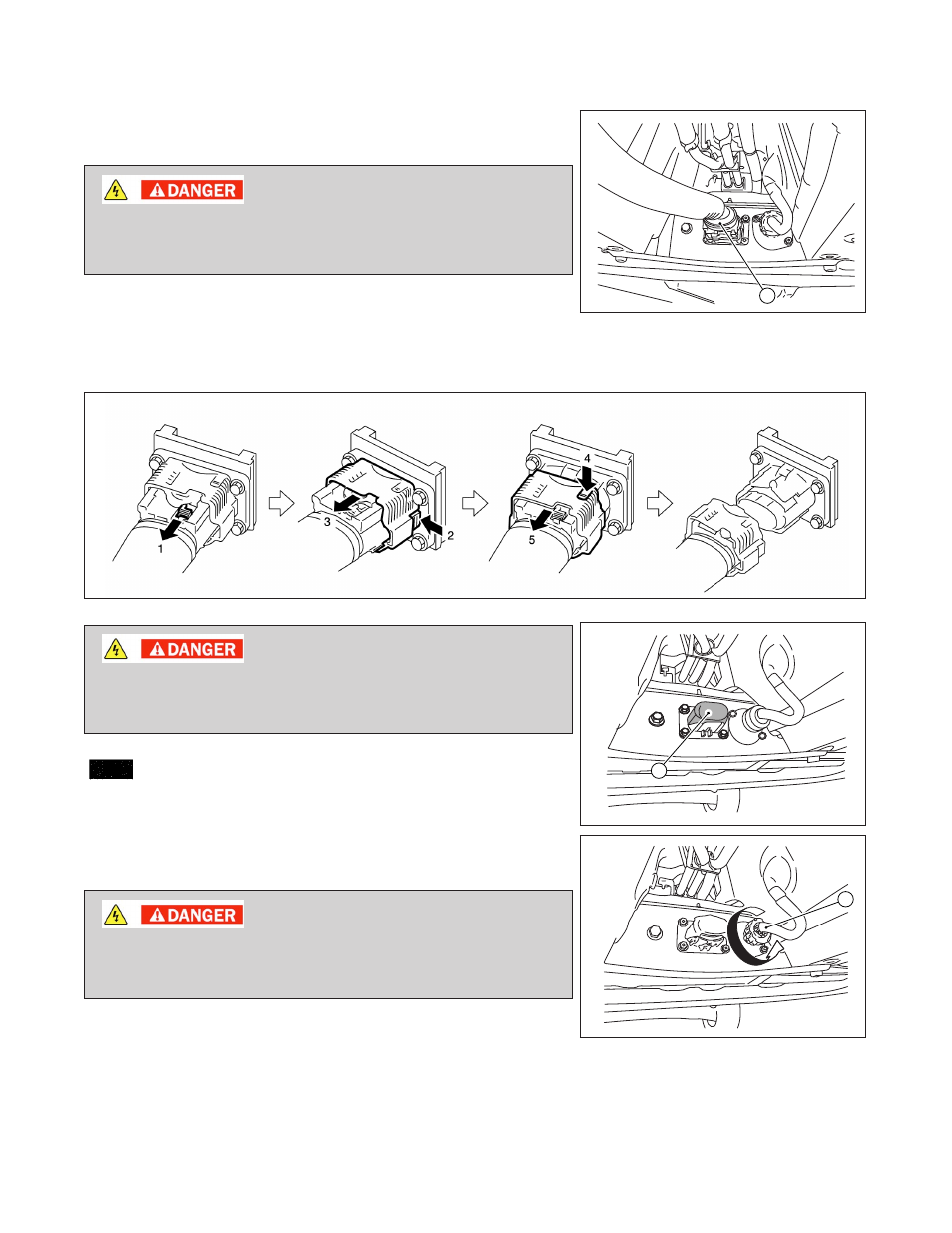

5-3.2 Removal Procedure
1. Raise the vehicle and remove the battery under covers (front, center and rear).
2. Disconnect the high voltage connector (A) from the
Li-ion battery.
Touching high voltage components without wearing
appropriate PPE will cause electrocution.
a. Follow procedure below to disconnect the high
voltage connector.
Cover battery side of high voltage connector with
insulated tape (A).
: Insulated tape
3. Disconnect the Li-ion battery vehicle communications
connector (A) while turning it counterclockwise.
Touching high voltage components without wearing
appropriate PPE will cause electrocution.
A
AAYIA0114ZZ
AAYIA0112ZZ
A
AAYIA0104ZZ
A
AAYIA0115ZZ
