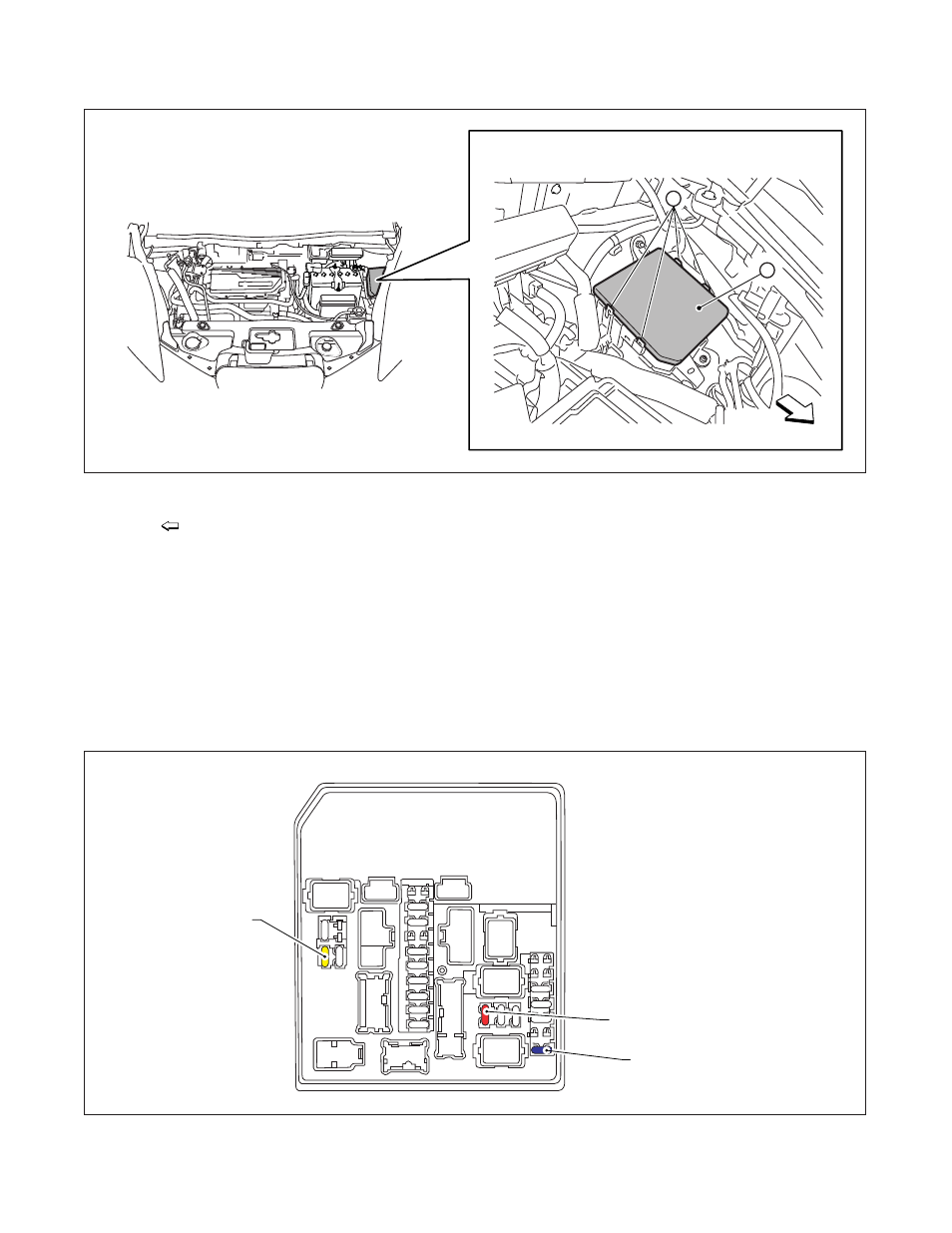

2. Press and expand the pawls (A) on the sides of the fuse box and remove the fuse box (1) from its
housing.
NOTE:
: Arrow in illustration depicts vehicle front direction.
NOTE:
There is no separate fuse box cover. The bottom of the fuse box is also its cover.
3. Remove the following fuses:
a. VCM IGN fuse (F15 VCM IGN 10A)
b. F/S1 RLY Fuse (F24 F/S1 RLY 15A)
c. VCM Fuse (F3 VCM 20A)
4. If you cannot identify the above fuses, remove all fuses in the fuse box.
A
1
AAYIA0100ZZ
F24 F/S1 RLY 15A
(Blue)
F15 VCM IGN 10A
(Red)
F3 VCM 20A
(Yellow)
AAYIA0030GB
