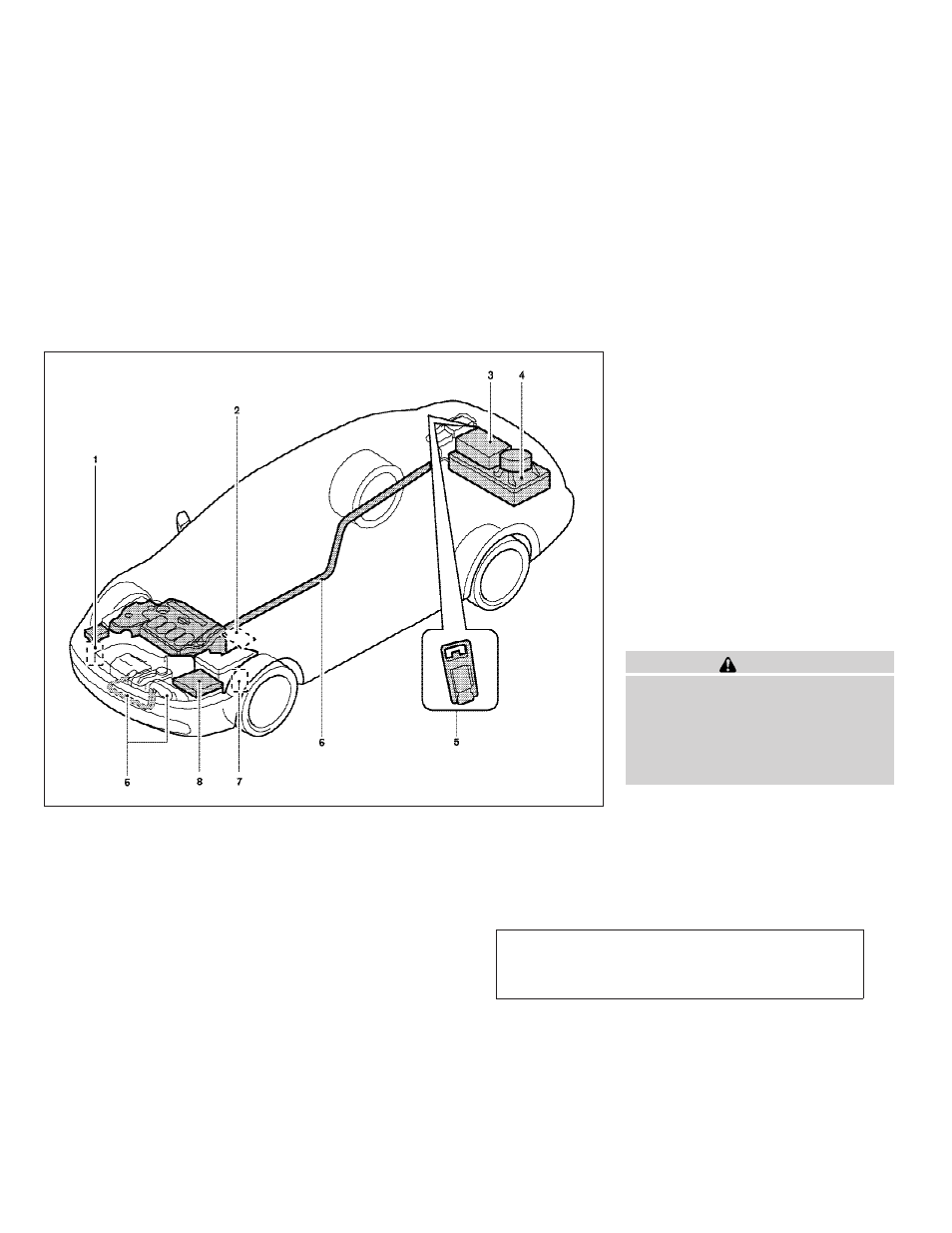

1. Air conditioner compressor location
2. Electric power steering location
3. 42V DC/DC converter
4. High voltage battery and 12V DC/DC
converter
5. Service disconnect
6. High voltage harnesses
7. Traction motor location
8. Inverter unit
The Hybrid System uses high voltage up to 650
V. High voltage components are indicated in the
illustration. High voltage cables are orange. The
system can be hot while and after starting. Be
careful of both the high voltage and the high
temperature.
HYBRID VEHICLE
CHARACTERISTICS
WARNING
● Pay special attention to pedestrians
when the vehicle is powered only by the
traction motor. Because there is no en-
gine noise, pedestrians may not know
the vehicle is moving or about to move
and step into the direction of vehicle
travel.
LHV0005
HEV Overview HEV-9
