GAUGES

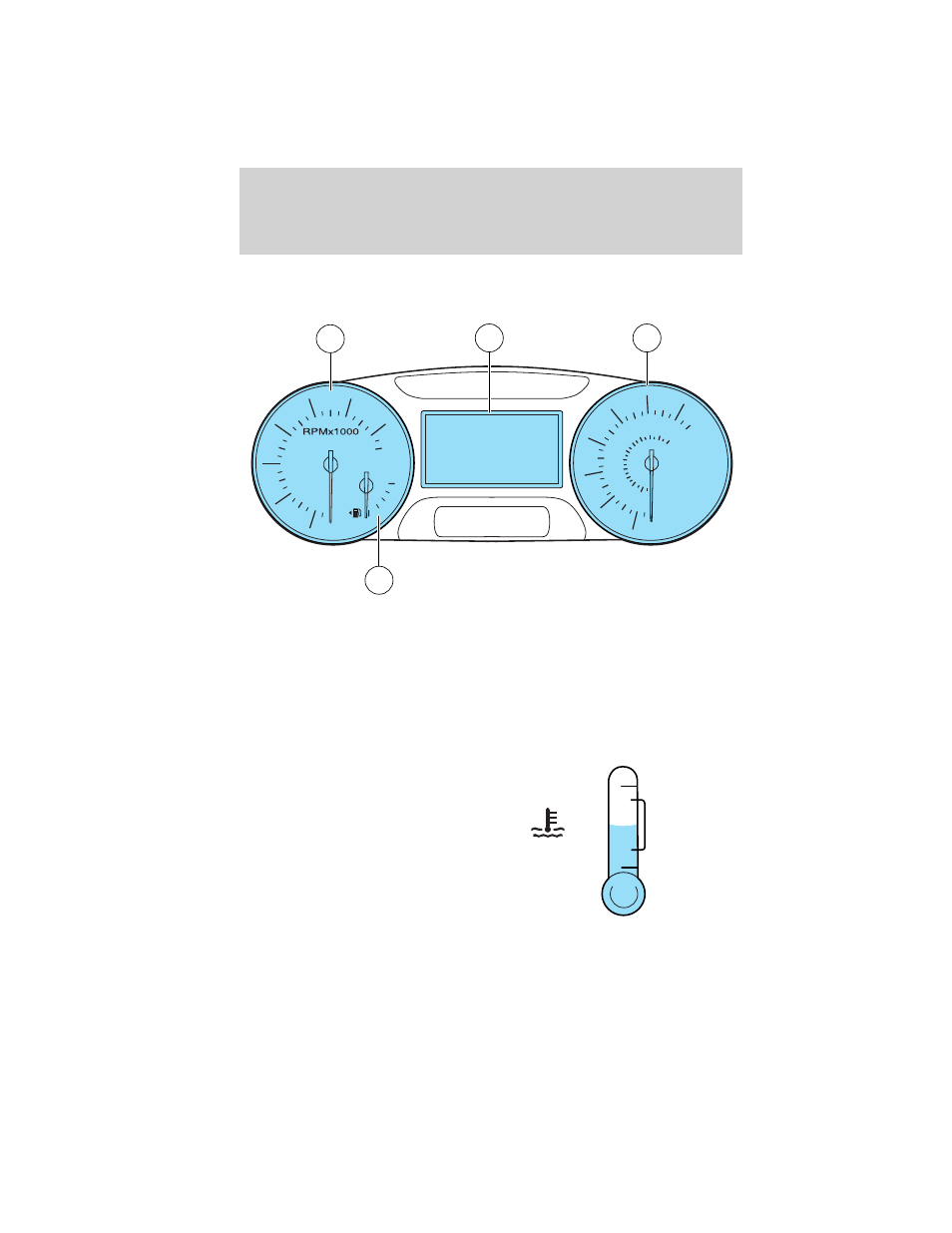

Base cluster shown in standard measure– metric similar
1. Tachometer: Indicates the engine speed in revolutions per minute.
Driving with your tachometer pointer continuously at the top of the scale
may damage the engine.
2. Multifunction display: This displays the engine coolant temperature,
odometer and trip meter. This is also used to configure different vehicle
personalization options and display the status of various vehicle functions
and vehicle status information. See Base message center in this chapter
for more information.
• Engine coolant temperature
gauge (if enabled): Indicates
engine coolant temperature. At
normal operating temperature,
the level indicator will be in the
normal range. The indicator will
change colors indicating blue for
cool, gray for normal and red for
hot. If the engine coolant
temperature exceeds the normal
range, stop the vehicle as soon as
safely possible, switch off the engine and let then engine cool.
