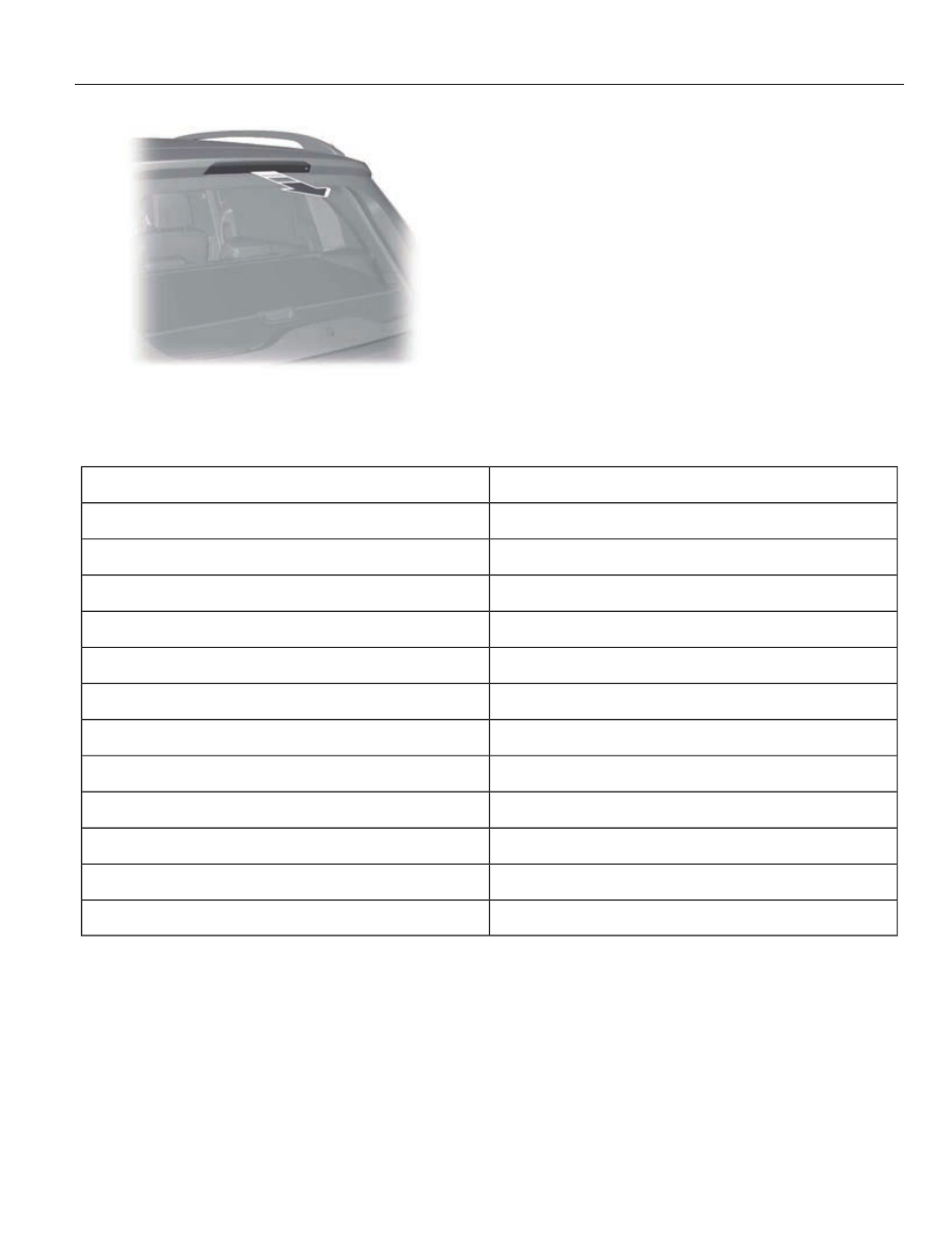

E162564

5. Gently pull the lamp assembly away

from the vehicle.

6. Remove the bulb holder.

7.

Remove the bulb.

BULB SPECIFICATION CHART

Replacement bulbs are specified in the
chart below. Headlamp bulbs must be
marked with an authorized “D.O.T.” for
North America to ensure lamp
performance, light brightness and pattern
and safe visibility. The correct bulbs will
not damage the lamp assembly or void the
lamp assembly warranty and will provide
quality bulb burn time.

Trade number

Function

9005LL

Headlamps high beam (Halogen)

H11LL

Headlamp low beam (Halogen)

168

Sidemarker - front

194

Park lamp - front

W21W

Turn lamp - front

H10 (9145)

Fog lamps

3157K

Tail/brake lamp

T20

Turn lamp - rear

921

Backup lamp

W5W

License plate lamp

W5W

* High-mount brake lamp

LED

* Interior lamps

* To replace these lamps - see your authorized dealer.

To replace all instrument panel lights - see your authorized dealer

231

Maintenance
