Page 32
30
FREEDOM DESIGNS, INC.
Freedom 2 / Freedom 2 Kids
SERIAL NUMBER AND MODEL MUST BE PROVIDED
ONLY AVAILABLE ON FREEDOM DESIGNS CHAIRS
NEW MAG WHEELS MUST BE ORDER.
SEE PAGE 50 FOR WHEEL CHOICES.
8
6
12

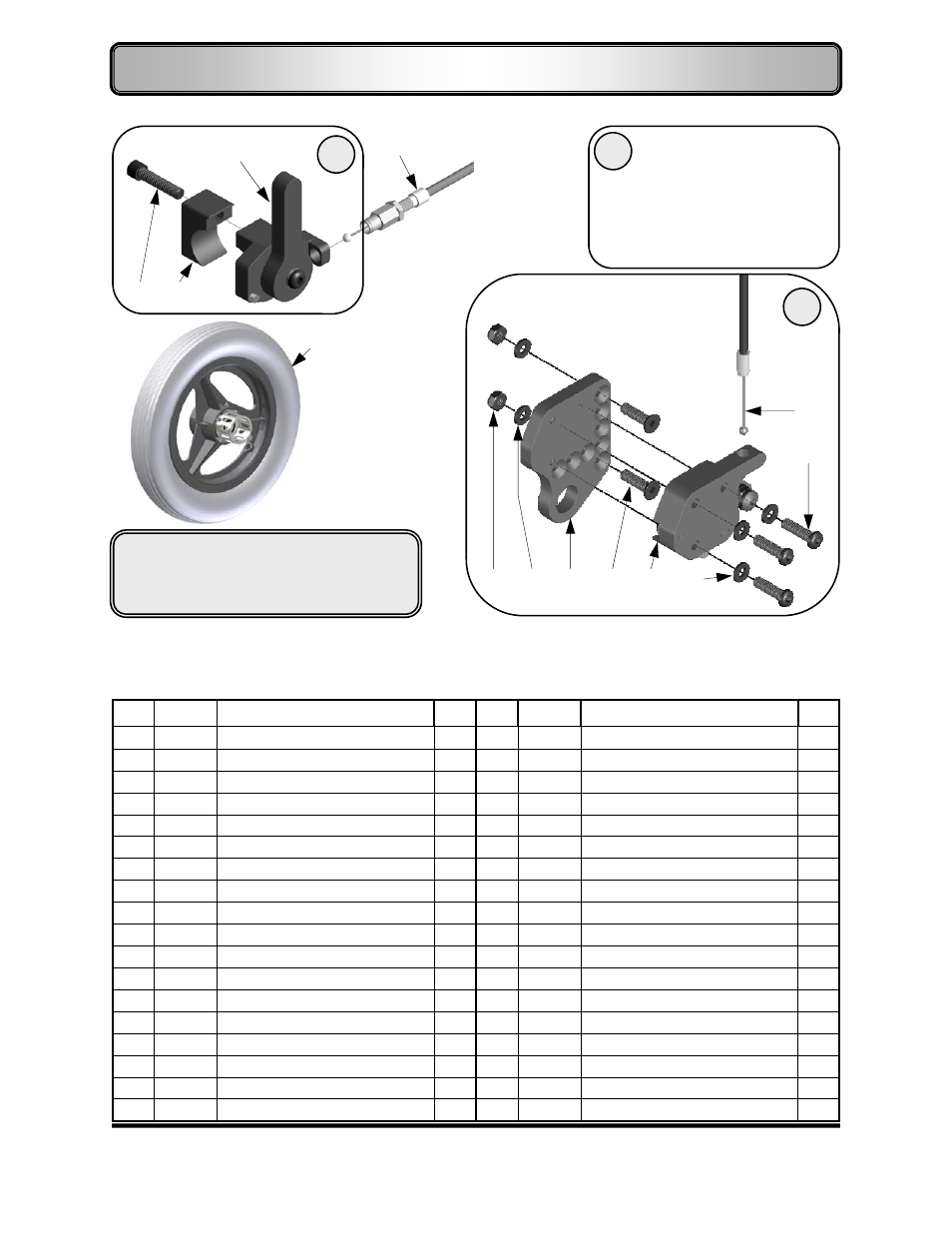

COMPLETE KIT INCLUDES:
FRAME MOUNT LEVER
ASSEMBLY (Item 2)
A C T U A T O R A S S E M B L Y
with CABLES (Item 3)
Wheels sold separately
13
14
7
11
5
14
9
8
10
HUB LOCK—
From Serial No. GZ-12529
No.
PART
# DESCRIPTION QTY
No. PART
#
DESCRIPTION
QTY
1
13091
Hub Lock Assy Complete—Sht Cables
1 pr.
5
13080-R
Actuator Assembly—Right
1 ea.
13093
Hub Lock Assy Complete—Lg Cables
1 pr.
13080-L
Actuator Assembly—Left
1 ea.
13091-R
Hub Lock Assy Complete—Sht Cable, Rt
1 ea.
13080
Hub Lock Actuator Assemblies
1 pr.
13091-L
Hub Lock Assy Complete—Sht Cable, Lt
1 ea.
6
13082-1
Inner Clamp
1 ea.
13093-R
Hub Lock Assy Complete—Lg Cable, Rt
1 ea.
7
4004-R
Adapter Plate—Right
1 ea.
13093-L
Hub Lock Assy Complete—Lg Cable, Rt
1 ea.
4004-L
Adapter Plate—Left
1 ea.
2
13087-R
Lever/Clamp Assembly—Right
1 ea.
4004
Adapter Plates
1 pr.
13087-L
Lever/Clamp Assembly—Right
1 ea.
8
13084-1
Cable—Short
1 ea.
13087
Lever/Clamp Assemblies
1 pr.
13084
Cables—Short
1 pr.
3
13088-R
Hub Lock Actuator—Rt, w/Sht Cable
1 ea.
13086-1
Cable—Long
1 ea.
13088-L
Hub Lock Actuator—Lt, w/Sht Cable
1 ea.
13086
Cables—Long
1 pr.
13088
Hub Lock Actuators, w/Sht Cable
1 pr.
9
See Notes Wheel Assembly
1 ea.
13090-R
Hub Lock Actuator—Rt, w/Lg Cable
1 ea.
10
9033
Screw—1/4 x 1” Button Head
1 ea.
13090-L
Hub Lock Actuator—Lt, w/Lg Cable
1 ea.
11
9047
Screw—1/4 x 1” Flat Head
1 ea.
13090
Hub Lock Actuators, w/Lg Cable
1 pr.
12
9061
Screw—1/4 x 1” Socket Head
1 ea.
4
13081-R
Lever—Right, w/o Cable
1 ea.
13
9073
Locknut—1/4” Nylon Thin
1 ea.
13081-L
Lever—Left, w/o Cable
1 ea.
14
9074
Washer—1/4” Flat
1 ea.
13081
Levers, w/o Cables
1 pr.
