No. PART # DESCRIPTION QTY No. PART # DESCRIPTION QTY
1 10040-1 3” Caster Fork Assembly 1 ea. 8 2011C 4” Caster Fork 1 ea.
10040-2 3” Caster Fork Assemblies 1 pr. 9 2011A 5”, 6” & 7” Caster Fork 1 ea.
2 10052-1 4” Caster Fork Assembly 1 ea. 10 2011B 6” x 2” Caster Fork 1 ea.
10052-2 4” Caster Fork Assembly 1 pr. 11 2013 Caster Spacer (except 6” x 2” Casters) 1 ea.
3 10041-1 5” , 6” & 7” Caster Fork Assembly 1 ea. 12 2013A Caster Spacer (6” x 2” casters only) 1 ea.
10041-2 5” , 6” & 7” Caster Fork Assemblies 1 pr. 13 9082 Screw—5/16 x 2 1/2” Hex Head 1 ea.
4 10045-1 6” X 2” Caster Fork Assembly 1 ea. 14 9088 Locknut—5/16” Nylon, Thin 1 ea.
10045-2 6” X 2” Caster Fork Assembly 1 pr. 15 9089 Washer—1/2” Flat 1 ea.
5 2010A 3 5/8” Caster Stem 1 ea. 16 9084 Screw—5/16 x 3 1/2” Hex Head 1 ea.
6 2010B 4” Caster Stem 1 ea. 17 9085 Locknut—1/2” Nylon, Thin 1 ea.
7 2011 3” Caster Fork 1 ea. 18 9091 Jam Nut—1/2” 1 ea.

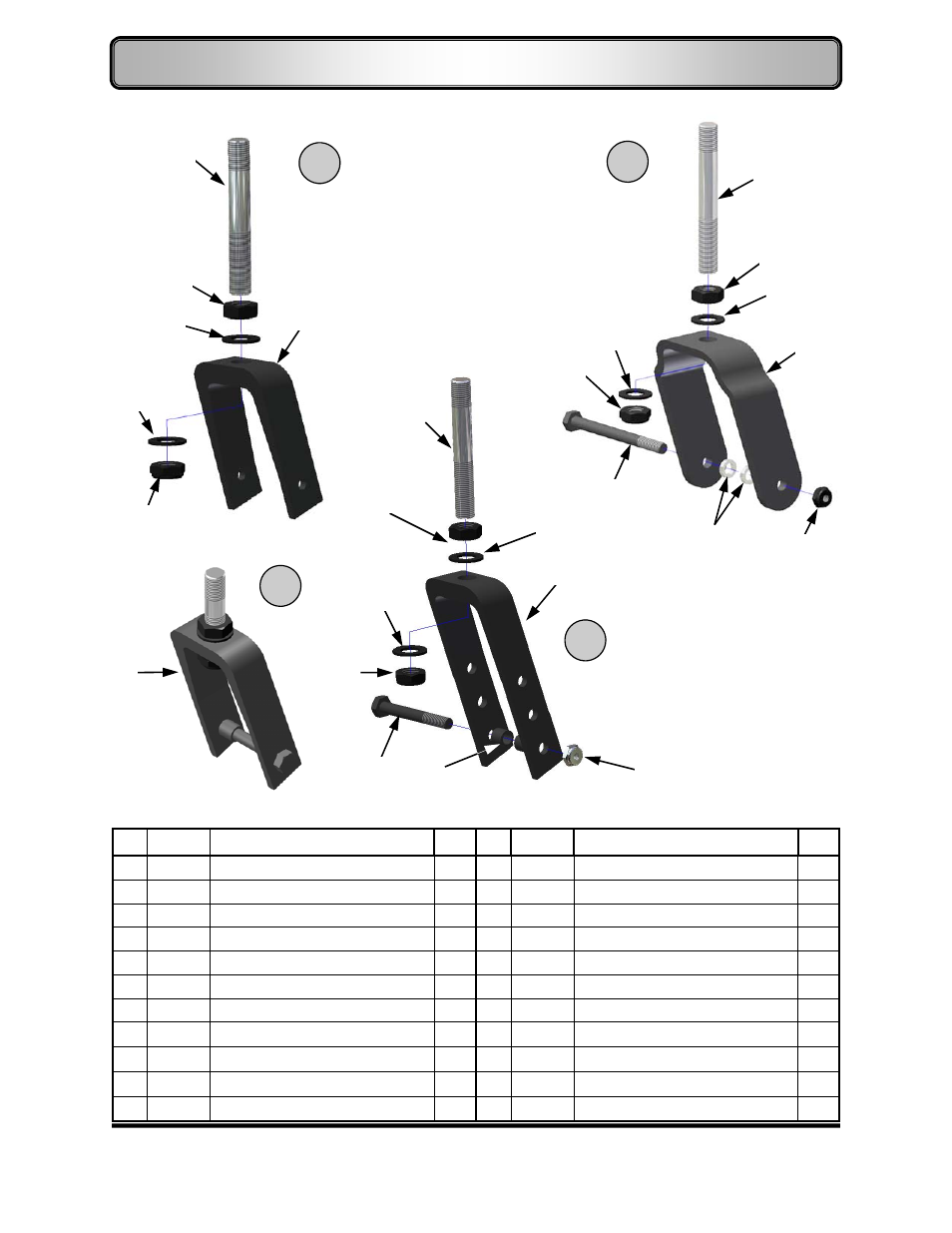

CASTER COMPONENTS—Forks
2
8
1 4
3
