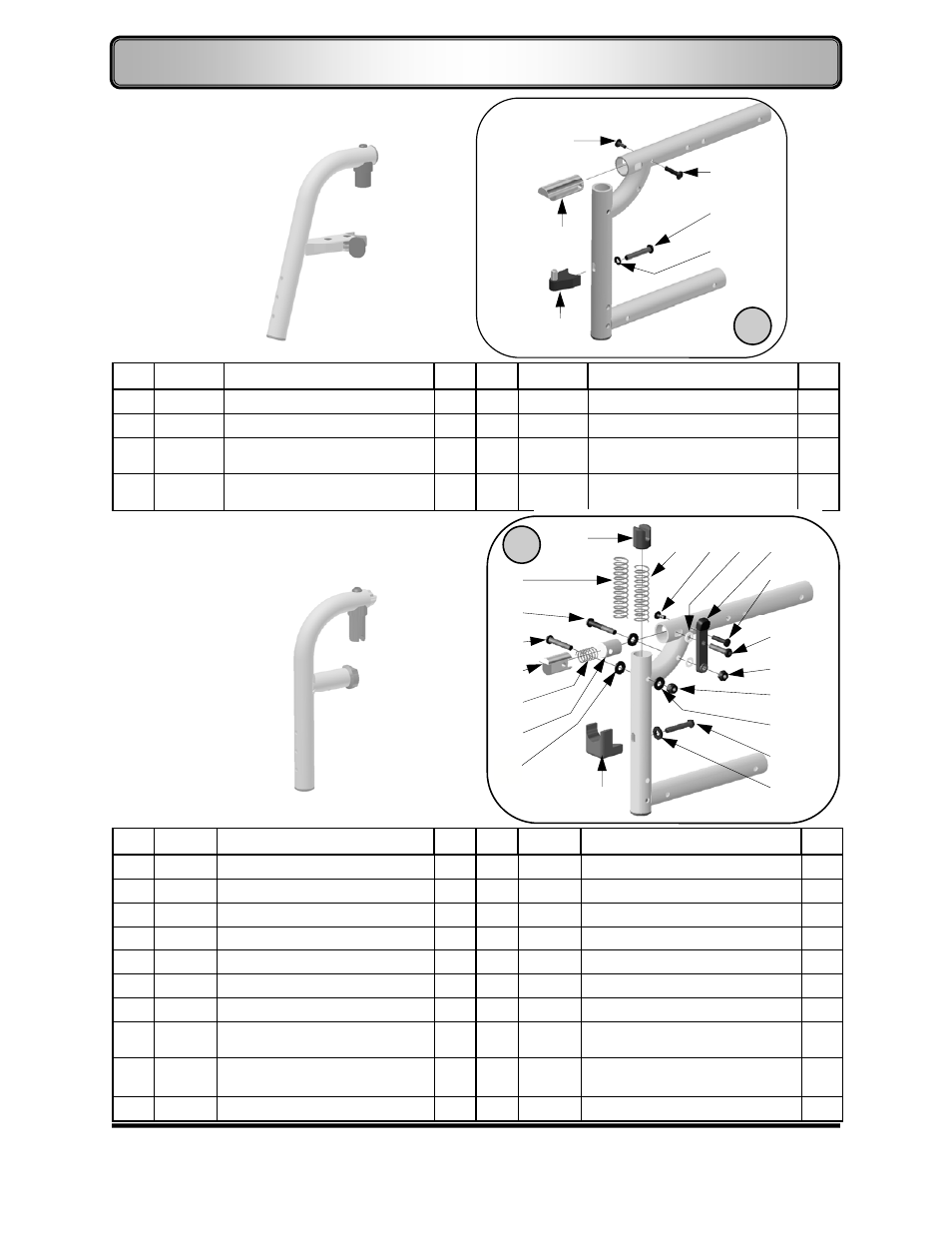

HANGERS — Complete Hanger Retro & Components
No. PART # DESCRIPTION QTY No. PART # DESCRIPTION QTY
1 13020 Hanger Support—Latch Style 1 ea. 5 9035 Screw—1/4-20 x 1 1/2” Button Head 1 ea.
2 20090 Retainer Plug 1 ea. 6 9074 Washer—1/4” Flat 1 ea.
3 9100 Binding Screw—Female 1 ea. 7 20079
Pop-up to Latch Kit 75° & 90°
(all items in box + hangers, see page 30)
1 set
4 9101 Binding Screw—Male 1 ea. 20079-1
Pop-up to Latch Kit 75° & 90°
(all items in box + hangers, see page 30)
1 ea
Latch Style
6b
6a
1
12
2
11
14
17
No. PART # DESCRIPTION QTY No. PART # DESCRIPTION QTY
1 13015 Hanger Support—Pop-Up 1 ea. 10 9034 Screw—1/4-20 x 1 1/4” Button Head 1 ea.
2 1011 Hanger Latch 1 ea. 11 9035 Screw—1/4-20 x 1 1/2” Button Head 1 ea.
3 1012 Latch Spring 1 ea. 12 9036 Screw—1/4-20 x 1 3/4” Button Head 1 ea.
4 1013 Seat Insert 1 ea. 13 9072 Locknut—1/4”-20, Nylon 1 ea.
5 13016 Pop Up Plug 1 ea. 14 9073 Locknut—1/4”-20, Thin Nylon 1 ea.
6a 13017 Pop Up Spring—75°Hanger 1 ea. 15 9074 Washer—1/4” Flat 1 ea.
6b 13018 Pop Up Spring—90° Hanger 1 ea. 16 9010 Washer—1/4” Flat Plastic 1 ea.
7 13019 Hanger Release Lever Assembly 1 ea. 17 13300-75
Latch to Pop-up Kit 75° (all items in box
except 8b + hangers, see page 31)
1 set
8 9100 Binding Screw—Female 1 ea. 13300-90
Latch to Pop-up Kit 90° ( all items in box
except 8a + hangers, see page 31)
1 set
9 9101 Binding Screw—Male 1 ea.
2
9
13
10
15 7
8
16
Pop Up Style
5
3
4
16
11
16
1
6
