Freedom Designs Freedom 2 - Manual (Page 25)

23
FREEDOM DESIGNS, INC. Freedom 2 / Freedom 2 Kids
11 4
9
6
10
9
7
10
8
9
11 5

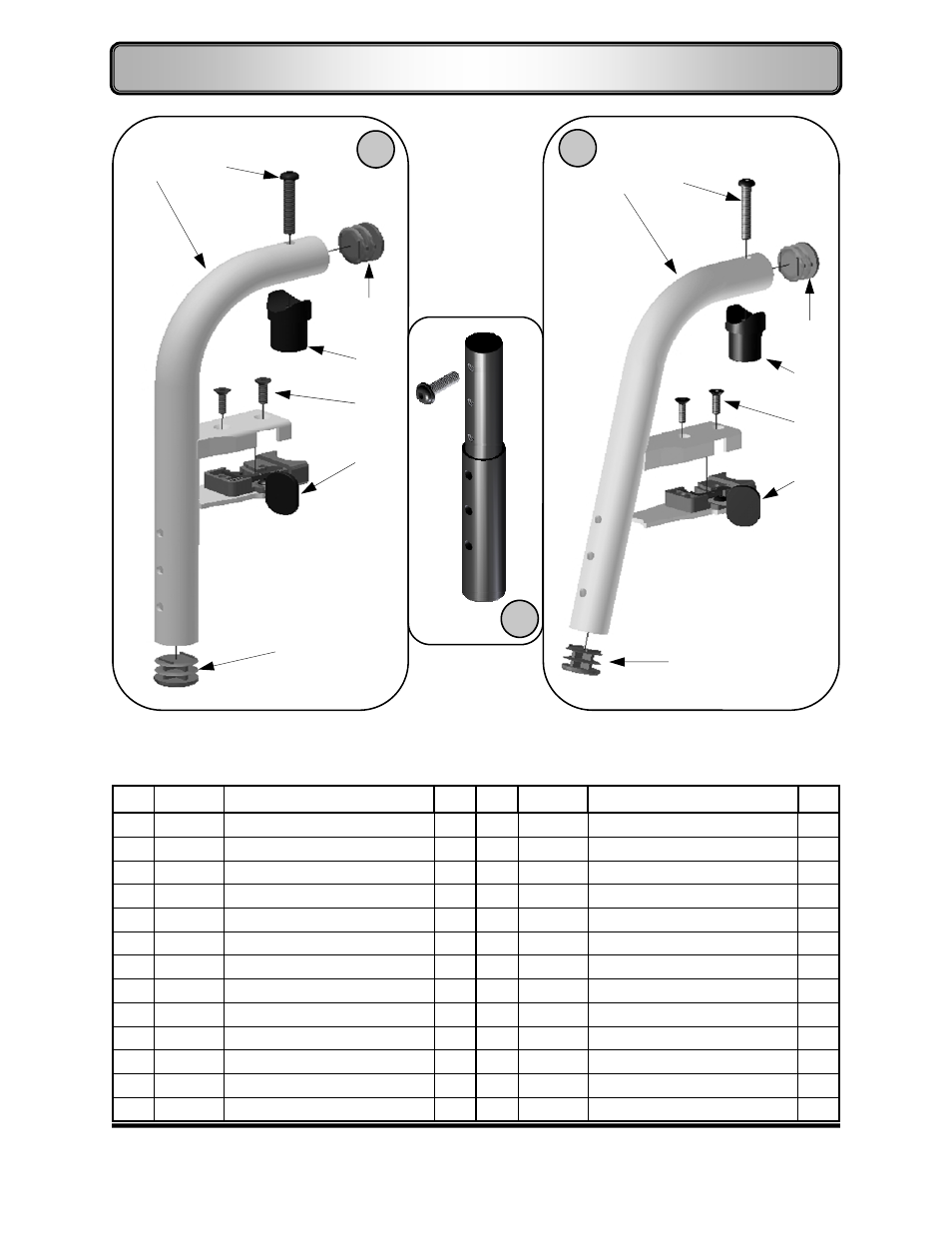

HANGERS—Latch Style
No. PART # DESCRIPTION QTY No. PART # DESCRIPTION QTY
1 20080-R Latch Style Hanger Assy—90°, Rt. 1 ea. 5 20085-R Latch Style Hanger Tube—75°, Rt. 1 ea.
20080-L Latch Style Hanger Assy—90°, Lt. 1 ea. 20085-L Latch Style Hanger Tube—75°, Lt. 1 ea.
20080 Latch Style Hanger Assemblies 1 pr. 20085 Latch Style Hanger Tubes —75° 1 pr.
2 20081-R Hanger Assembly—75°, Rt. 1 ea. 6 20091-R Latching Assembly—90° - Rt. 1 ea.
20081-L Hanger Assembly—75°, Lt. 1 ea. 20091-L Latching Assembly—90° - Lt. 1 ea.
20081 Hanger Assemblies—75° 1 pr. 20091 Latching Assemblies—90° 1 pr.
3 20082 Hanger Ext. Assy—0.5—4.5” Long 1 pr. 7 20092-R Latching Assembly—75°, Rt. 1 ea.
20082-1 Hanger Ext. Assy—0.5—4.5” Long 1 ea. 20092-L Latching Assembly—75°, Lt. 1 ea.
20083 Hanger Ext. Assy—2.5—6.5” Long 1 pr. 20092 Latching Assemblies—75° 1 pr.
20083-1 Hanger Ext. Assy—2.5—6.5” Long 1 ea. 8 3012 Pivot Fitting—Latch Style 1 ea.
4 20084-R Latch Style Hanger Tube—90°, Rt 1 ea. 9 9000 1” Tube Plug 1 ea.
20084-L Latch Style Hanger Tube—90°, Lt 1 ea. 10 9041 Screw—10-32 x 5/8” Flat Head 1 ea.
20084 Latch Style Hanger Tubes—90° 1 pr. 11 9035 Screw—1/4 x 1 1/2” Button Head 1 ea.
1 2
3
8
9
These hangers require footplate assemblies shown on pages 15 & 16.
