Step 3 – FASS T F16 220G User Manual
Page 13
G.

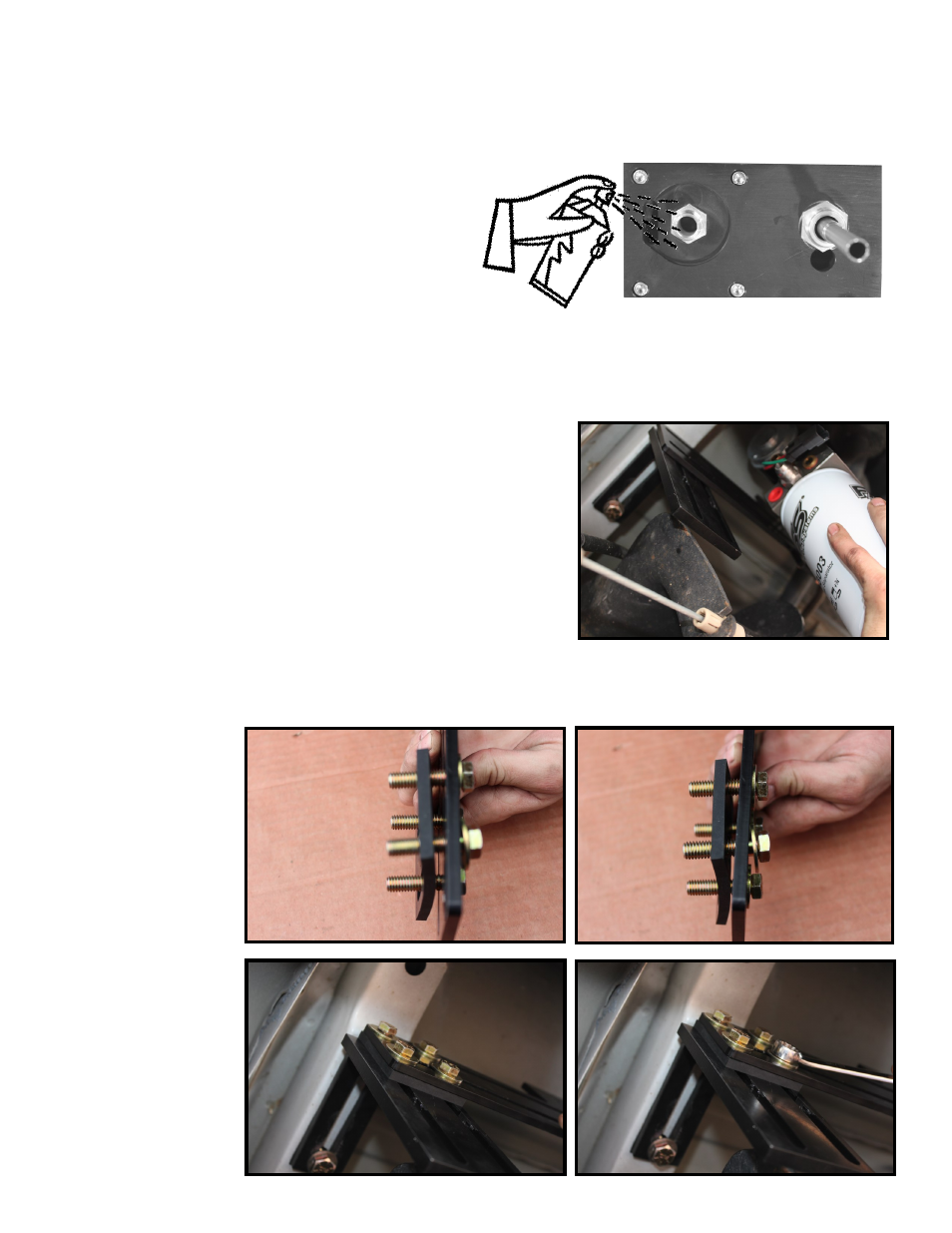

Position the PBR-2001 to the PFB-2002 pump assembly at the mounting location and check for fit.
Once location is established mark location for mounting in next step.
Step 3:
Mount Fuel System
H.
Assemble the FASS pump bracket PBR-2001 using the RS-2002 spacer between PFB-2002 and PBR-
2001 bracket with 4-3/8 bolts, nuts, and washers. Note: Torque bolts not flange nut.
F.
Turn key to “on”. With pump operating (you may have to bump the starter), turn pump over, liberally
spray WD-40 (or equivalent) into water separator nipple lubricating Gerotor.
