P Plla an nn niin ng g IIn ns stta alllla attiio on n
Inlet - Outlet Plumbing Options
• ALWAYS INSTALL either a single bypass valve (included) or a 3 valve bypass system (not included).
Bypass valves allow you to turn off water to the softener for repairs if needed, but still have water
in house pipes.
• Use 3/4” (minimum) pipe and fittings.
• Use sweat copper... or, threaded pipe... or, PVC plastic pipe... or, other approved plumbing.
Tie or wire valve drain hose in place, to keep over
floor drain.

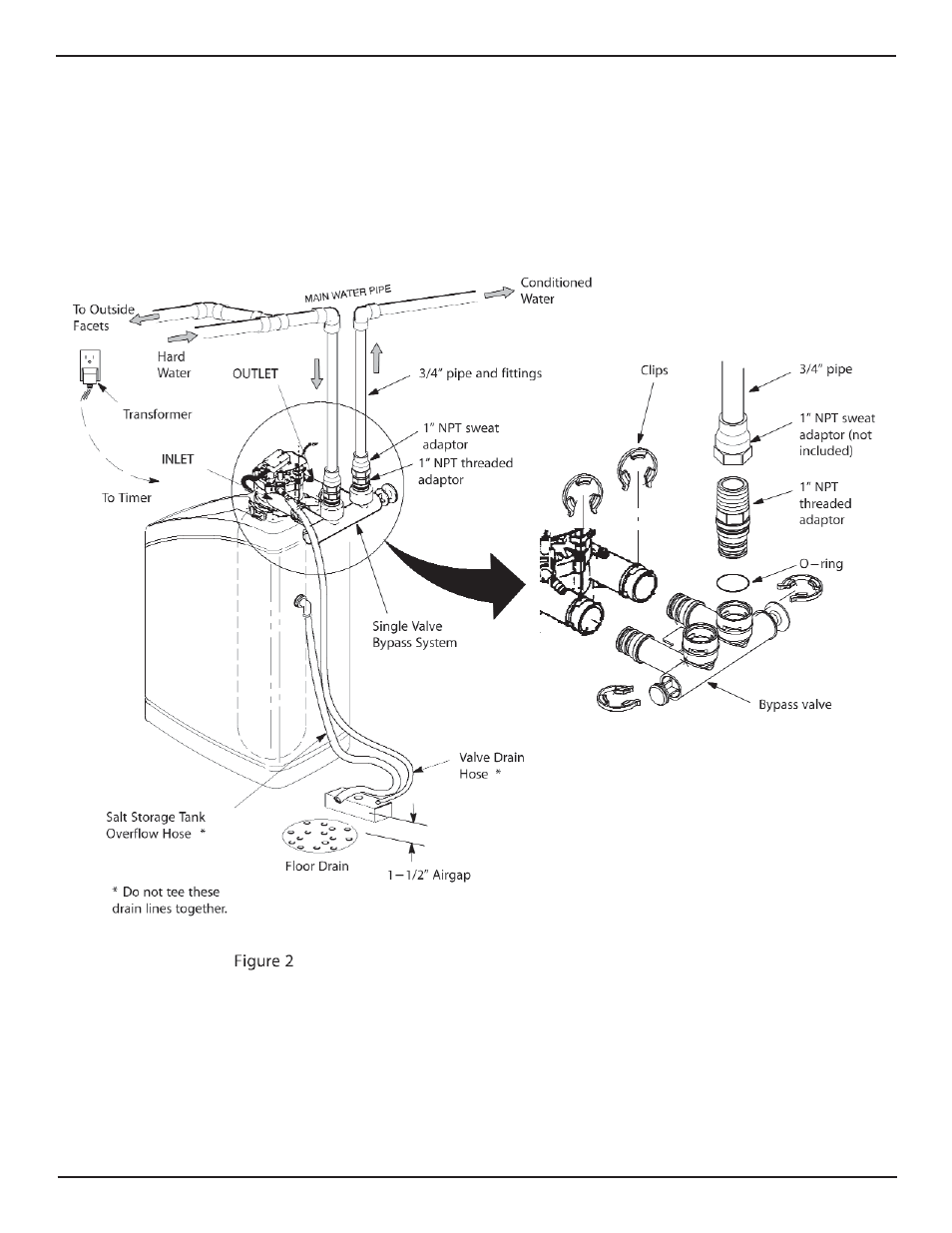

NOTE: Air gap requirements on Fig. 2
NOTE: Salt Hole and Faceplate cover not
shown for clarity of drawing.
NOTE: The bypass valve allows the water to
be turned off to the softener for serv-
icing, but still have water in the
house pipes.
