SPECIFICATIONS
Display: 3½ active digits, optional fixed
zero for 4½ digit display; optional decimal
point after first, second, or third digit. Fixed
zero and optional decimal point and fixed
zero set by internal component board
switch.
Span Adjust: Twenty-five turn
potentiometer permits adjustment of the
display to any desired span from zero to
1999 (3½ digits). A fifth digit (dummy zero)
can be turned on for readouts up to 19990
(4½ digits).
Environment Temperature: 0 o F to +165 o F
(–18 o C to +74 o C).
Accuracy: 0.1% linearity, 0.5% stability
over the environment range.
Input Signal: 0 to 1 mAdc.
Input Resistance: 95 Ohms.
Power Requirement: 8 to 40 Vdc. (Typical
current consumption of 0.5 mA at 9 Vdc; 1
mA at 12 Vdc; 4 mA at 24 Vdc; 6 mA at 32
Vdc).
Weight: 1 lb (0.45 kg)

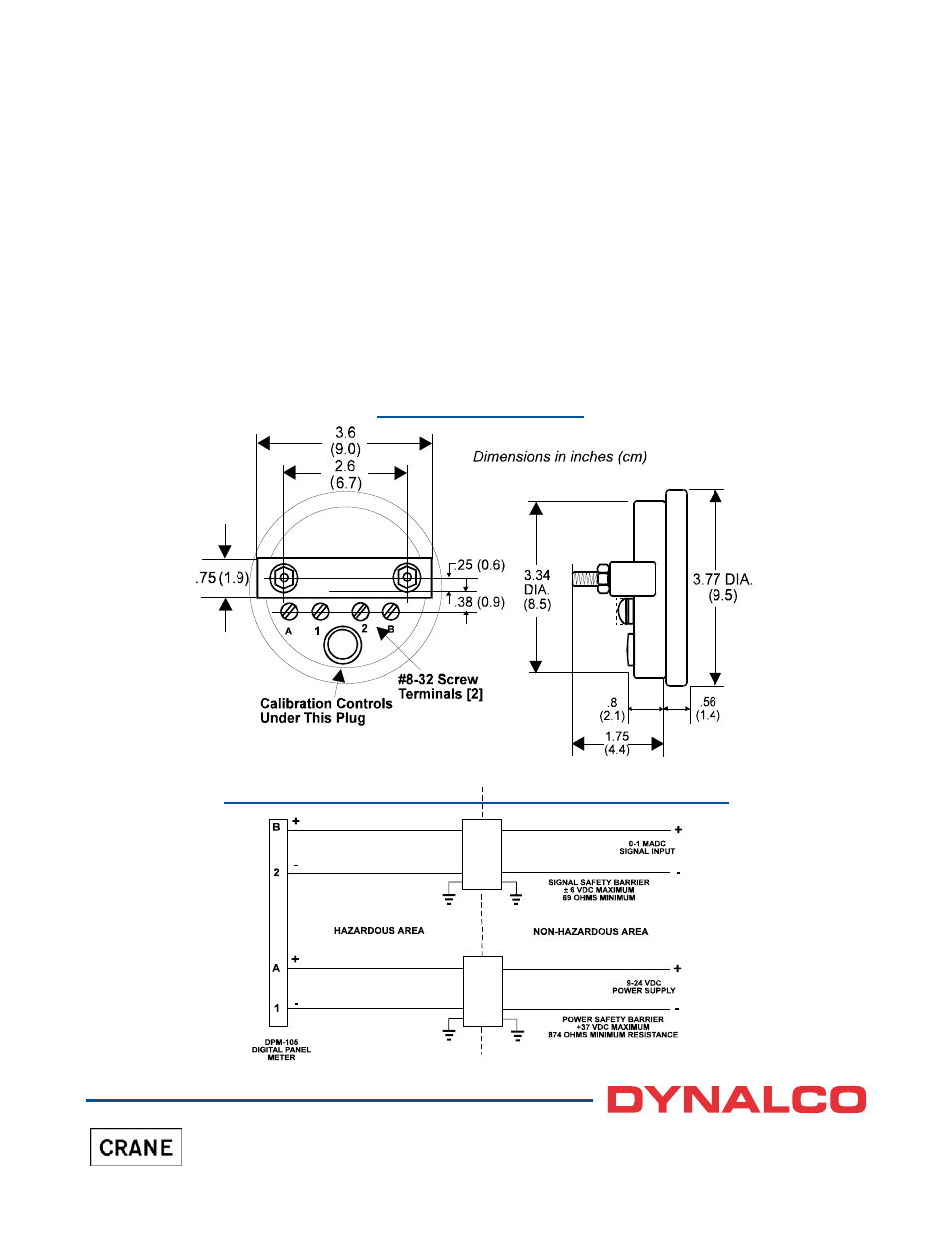

OUTLINE DRAWING
DRAWING B8008843
WIRING CONNECTIONS FOR INTRINSIC SAFETY
